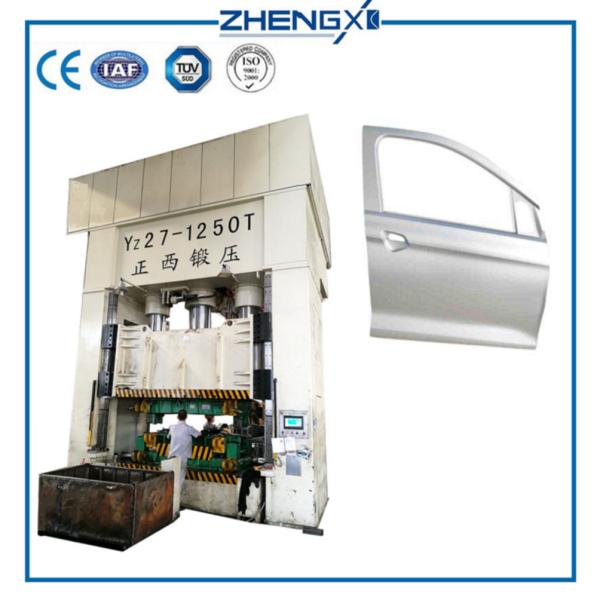

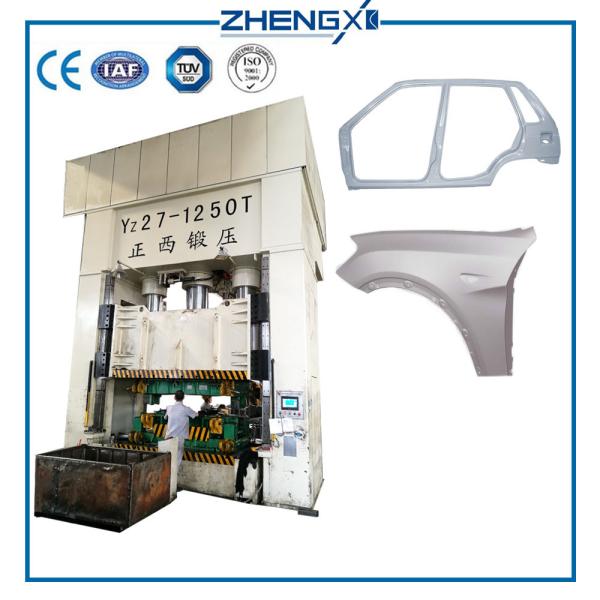

315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine
315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine
315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine
315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine
Specifications
Brand Name :
ZHENGXI
Model Number :
YZ25
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Non-standard machine, the price is determined by customer's requirements and parameters
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per year
Delivery Time :
60 days after the pre-payment be done
Packaging Details :
Export standard packaging
Energy saving :
At least 50%-70% electric power saving if use servo motor additionally
Material of machine :
Use Q345B/#45 steel to make the structure tougher
H frame :
H frame makes the structure more stable than pillars type
Application field :
widely used in sedan car and trucks manufacturing process
Function :
Metal materials forming/blanking/drawing
Controller :
PLC convenient control system
Advantages :
High precision, the deviation of pressing force less than 5%
After-sales service :
Engineers available to serve overseas
Warranty period :
One-year full warranty and life-long technical support
Description

CAR DOOR BORDURE HYDRAULIC PRESS MACHINE


Yz25 Series


315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine

Specs

Model Unit Yz25-160T Yz25-160TA Yz25-200T Yz25-200TA Yz25E-200TA Yz25E-315T Yz25E-315TA
Nomainal force KN 1600 1600 2000 2000 2000 3150 3150
Max.Liquid working pressure MPA 23 23 12.5 12.5 25 22.5 22.5
Return force KN 260 260 470 470 300 600 600
Slider stroke mm 1200 1200 600 600 1000 750 750
Open height mm 1600 2600 1620 1300 1700 1700 1700
Slider speed Down mm/s 150/75 150/75 100 100 150 150 150
Press mm/s 3-12 4-20 0-12 0-12 9-23 10-12 10-12
Return mm/s 75/100 60/90 60-80 60-80 130 90 90
Worktable size L-R mm 2400 2400 2880 2880 2400 2800 2600
F-B mm 1980 1900 1900 1900 2460 2500 2200
Slider under Max.distance from the bench L-R mm 2400 2400 2200 2200 2400 2800 2800
F-B mm 1980 1900 1900 1900 2460 2500 2500
The moving workbench load t 10 - - 16 15 25 25
The moving workbench moving distance mm 3000 - - 3400 3000 3000 3000
Overall dimensions L-R mm 3600 3250 2920 2920 8700 5000 4800
F-B mm 5820 2500 2580 2580 3700 3800 3500
H mm 5200 6300 5320 5320 5600 5400 5400
Motor power KW 25.2 20 44 47.3 31 - -
Structure type Four-column Four-column Four-column Four-column H-frame H-frame H-frame

Features

1.The frame is heavy-duty as well as compact and it assures precise results.It is made of high quality mild steel and it has undergone systematicmechanical processes.

2. Electric welding of high precision

3. Usage of high-tech boring machines for extreme precision parts

4. The composite series has been designed for applications in which structural rigidity and lexibility in terms of production are the particular rerogatives required. servo motor

5. It is convenient to clean and change oil.


Workshop and packaging

315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine


Product show

315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine



Production flow and customer

315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine


Certificate

315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine

Company qualification
315T Movable Worktable Servo Motor Car Door Bordure Hydraulic Press Machine

After-sale service

1.Personnel training
Free training for about one week.

2. After-sale service
One year warranty.During warranty period,free maintenance service can be provided.(except man-made faults or damages arising from irresistible natural factors)

3.Installation
Customers need to pay the commission to our proffessional engineer, and travel expense is on foreign customer.(Including round ticket and accommodation cost)
