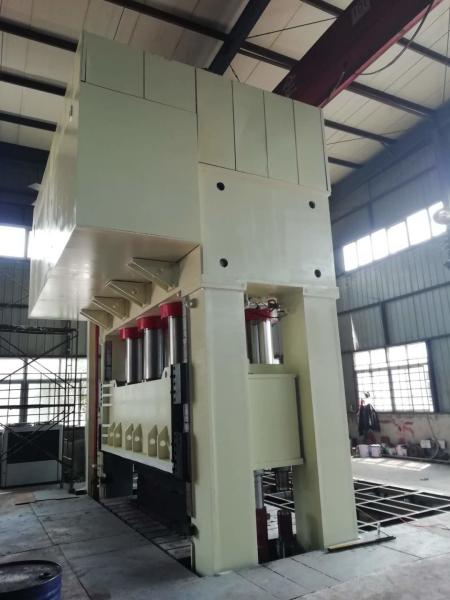

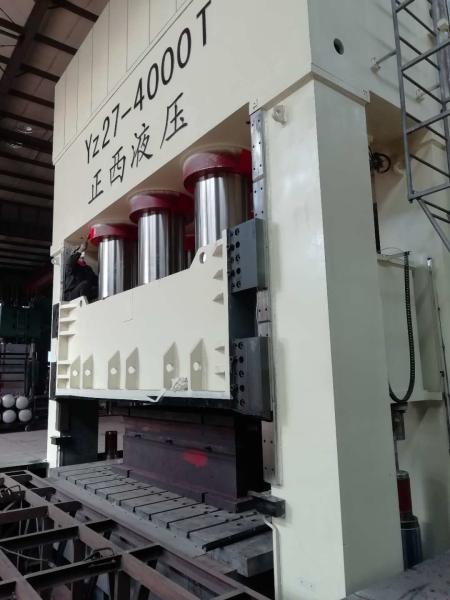

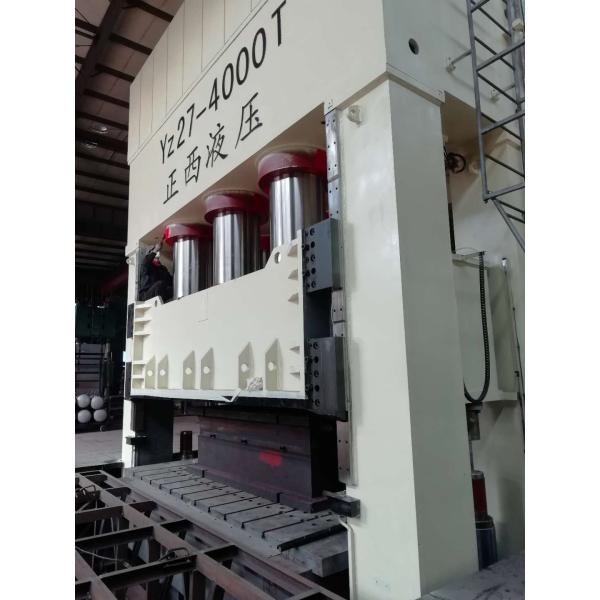

Deep Drawing Hydraulic Press Machine CE Hydraulic Press Machine 4000 Ton High standard Metal Plate

The hydraulic press table is equipped with a hydraulic pad and sufficient ejector hole. It is suitable for the pressing process of plastic materials, such as sheet stretching, bending, flanging, punching, etc. It can also be used for calibration, press fitting, grinding wheel forming, cold. The press forming process of extruded metal parts, plastic products and powder products, the machine has independent power mechanism and electrical system, and adopts centralized control, which can realize manual and automatic operation modes, working pressure, pressing speed and stroke range. Adjusting, and can complete the automatic circulation of the three processes of ejection, no ejection, and stretching, and there are two molding processes of constant pressure and fixed range.

The working principle is that according to the pressing process, the master cylinder can complete the basic working cycle of the rapid down-down deceleration pressing, the holding pressure delay, the pressure relief return, and the stop (arbitrary position), and the pressure, the speed and the dwell time must be adjusted. The ejection hydraulic cylinder is mainly used for ejecting the workpiece, and it is required to perform the actions of ejecting, retreating, and stopping. For example, when the thin plate is stretched, it is required to lift out the auxiliary movements such as the rise, stop and pressure return of the hydraulic cylinder. Sometimes it is necessary to press the blank with a crimping cylinder to prevent wrinkles in the periphery.

Optional accessories: mobile workbench; slider proportional adjustment and pressure regulating device; hydraulic pad proportional pressure regulating device; punching buffer device; light curtain safety protection device; oil heating or cooling device; touch industrial display; Sensing device; floating guide and rolling bracket for mold change; non-recoverable column lubrication device; mold lighting.
With the idea of stretching hydraulic press, you can come to Huzhou Xinke Forging Machine Co., Ltd., which adheres to the concept of creating brand with high quality and honest operation. It draws on advanced hydraulic design and manufacturing technology at home and abroad, and strictly controls the production quality management system. Start with the design source and choose from the procurement parts.
At present, four types of hydraulic machines, such as four-column, frame type, single-column type and horizontal type, have been formed, including general hydraulic presses, single-action sheet metal stamping hydraulic presses, double-action hydraulic presses, metal extrusion forming hydraulic presses, and powder forming hydraulic presses. A variety of special hydraulic machines such as motor manufacturing.

It adopts integral or split or pull-frame structure, and has the characteristics of good rigidity and high precision through computer finite element analysis; four-corner and eight-sided guide rails with high guiding precision and strong anti-offset capability; imported material cylinder sealing components, reliability High, long life; fast travel, fast working speed, improve production efficiency; use displacement sensor or non-contact switch to improve the reliability and accuracy of stroke control; machine, electric and liquid integrated safety device, equipped with cylinder lower chamber support The circuit and the upper and lower chamber interlocking circuits of the cylinder have excellent safety performance. With PLC control, the work is sensitive and reliable, and the flexibility is good.

The stretching hydraulic press is suitable for all stamping processes such as drawing, blanking and flanging, especially for the following fields:

1, auto parts: body cover, brake pads, fuel tank, chassis, axle housing, bumper;
2, household appliances: washing parts, rice cooker parts, TV parts, refrigerator parts, etc.;
3, kitchen utensils: washing tanks, pots, stainless steel appliances, and other various containers;
4, other: tractors, motorcycles, aerospace, aviation.
