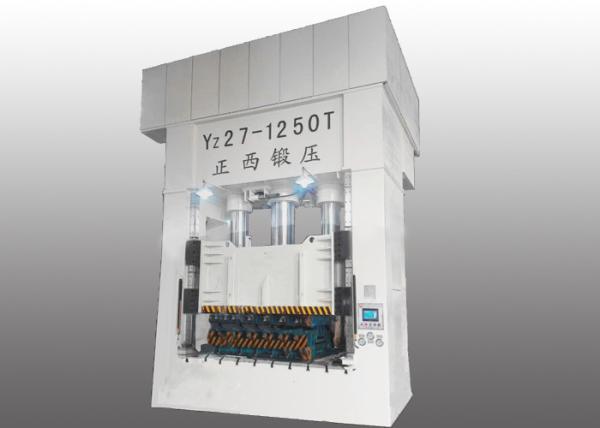

1250Ton Servo Hydraulic Press Machine for automobile parts deep drawing belongs to ZHENGXI Yz27 series which mainly be used on metal forming technology, also called metal stamping press, sheet metal deep drawing press or H frame type hydraulic press.

Application

ZHENGXI 1250Ton Servo Hydraulic Press Machine for automobile parts deep drawing have multi-function can process sheet metal including technology like deep drawing, stamping, bending, cutting and flanging. It is widely been used to the followin area.

• Automobile industry: vehicle body cover, door, automobile hub, battery cover, chasis, fule tank. Can be also used for other vehicles like tractor, motorcycle, wheelbarrow.​
• Electric products industry: refrigerator, air condition, microwave oven, washing machine and more.
• Kitchen ware industry: kitchen sink, metal cookware, LPG cylinder

Key Features

• The nominal force capacity of servo hydraulic press available up to 3500Ton as per customer's requirments
• The servo hydraulic press equipped with special servo motor which gives up to 70% energy saving rate, Max. position accuracy reaches ±0.005mm and Max. force control accuracy reaches ±0.1 Mpa
• Drive control is optional, can be servo control system which special designed for hydraulic press, or PLC control.
• 7 or 10 Inch industrail touch screen provides easy operation.

Parameters of 1250Ton Servo Hydraulic Press Machine for automobile parts deep drawing

Safety Device

1) emergency stop button: press the "emergency stop" button, the hydraulic system, including the motor, will stop running. The press is equipped with two emergency stop buttons, one on the operation control panel and the other on the mobile operation table. In any state and situation, press any one of the emergency stop buttons, and the press stops immediately.

2) Two-handed operation button: Press the synchronization time with both hands within 0.5S, if it exceeds, it will be invalid.

3) Hydraulic Support Safety Circuit: In order to prevent the slider from going out of control, a hydraulic double-support safety valve circuit is installed in the lower chamber of the piston main cylinder to ensure safety. The hydraulic interlocking circuit is set to ensure that the upper chamber of the main cylinder can not be pressurized when the supporting safety valve is not opened.

4) The machine is equipped with power supply, work and other indicators.

5) Longitudinal adjustable safety grating protection device is installed on the front of the press with adjustable position and 600 mm protection height.

6) Overload protection: The hydraulic system is equipped with a safety valve, which automatically overflows and discharges oil when the oil pressure exceeds the set value (adjustable), and sends an alarm signal at the control box.

7) Electrical system protection, motor overload protection and short-circuit protection, control circuit short-circuit protection and system alarm function.

8) Touch screen displays all solenoid valves and travel switches for monitoring.

On-site production photo of 1250Ton Servo Hydraulic Press Machine for automobile parts deep drawing
