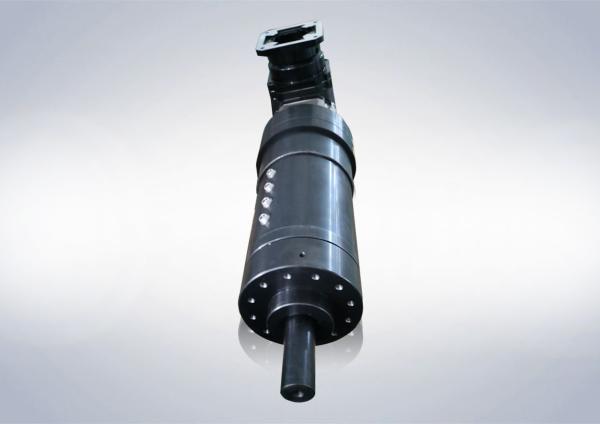

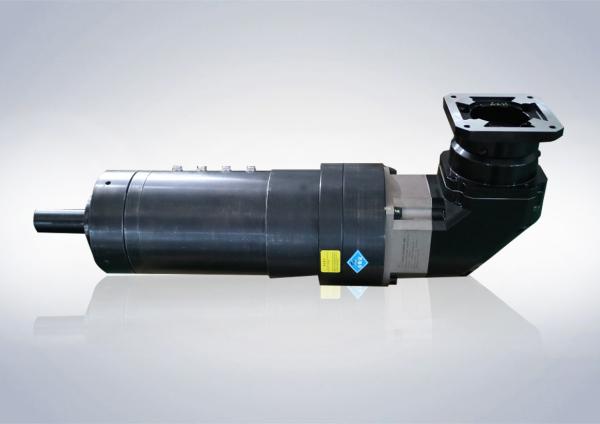

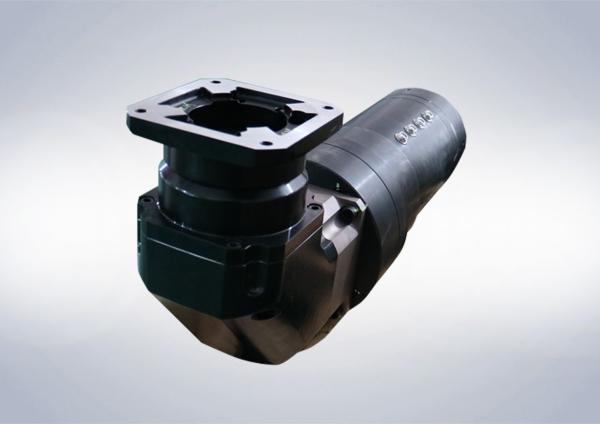

Linear Actuator Match With Many Different Screw Leads,Heavy Load Servo Electric Cylinder Up To 350KN

1. Product Model Definition

Example: TJER220 S800 B R 05 A M C 20 05 0 P11 O/C N/P

Mark:

1. In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2. The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.

2. Electrical Servo Cylinder Drive Torque And Power Selection Table

3. Applications

(1) Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.

(2) Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.

(3) Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.

This type is especially suitable for :
servo pressing, motor assembly production line and you can also purchase our servo pressing software together.

4. Why choose us?

1. Compact structure and small dimension.

2. High rigidity, low inertness and fast response.

3. High reliability and long operating life.

4. Energy saving&less noise.

5. Convenient assembly and use,simple maintenance.

6. One years of quality assurance, life - long maintenance service.

5. FAQ

Q:How much is your minimum order quantity?

A:1 piece.We have confidence that you are satisfied with our production.

Q:What's the price of the product?

A:The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.

Q:Which conturies and regions do your products export to?

A:Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders.

Q:Could you offer us free samples?

A:Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund.

Q: I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?
A: First of all, thank you very much for your trust and using our cylinder, I think the main reason is the screw inside, after about 8000 working hours, you’d better replace it with a new screw to ensure the accuracy.
The reference formula:
L10=(Ca/Fm)3×L
★ L10: The life of the electric cylinder,unit: Km

★ Fm: Average load of electric cylinder,unit: Kn

★ Ca: Screw nut basic dynamic load, unit: Kn

(can be detected by screw samples)

★ L: Screw lead,unit: mm
