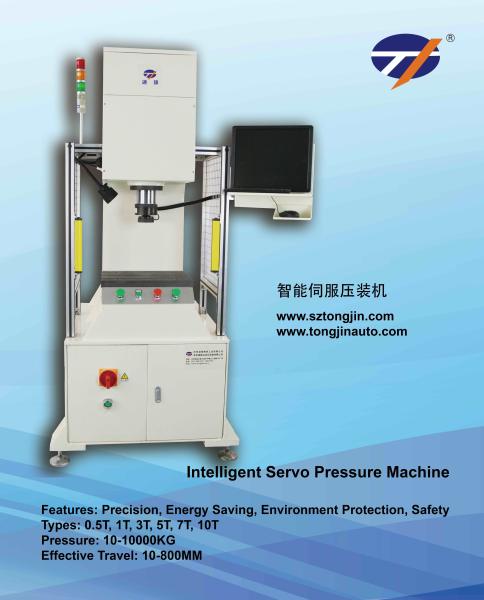

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure
C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure
Specifications
Brand Name :
TJ
Model Number :
TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
20 pcs per month
Delivery Time :
6~8 weeks
Packaging Details :
non wooden box
repeatability :
±0.01
lead :
200~500mm
pressing mount speed :
0~35mm/s
fast forward/return :
0~100mm/s
pressure range :
0.1~250KN
voltage :
tri-phase 380V/220V
Description

C-type servo pressing machine,pressing mount speed:0~35mm/s,pressure range:0.1~250KN,repeatability:±0.01

1.Introduction

As a new Pressure machine, depend on the advantages saving energy, low noise, environment protection low maintenance and excellent controllability and stability, get good graces and recognition from more and more enterprises and scientific research departments Especially in today’s emphasis on energy and the environment, under the premise of the application of the hydraulic and pneumatic pressure machine will inevitably become the trend of development in future. Production is widely applied to assemble auto parts, home appliance, hardware, rubber, powder etc.

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

Technical Principles:

⊙Sere Pressure machine: is driven by AC servo motor and output force precision ball screw to achieve the functions of press fitting and measuring pressure displacement.

⊙Precise pressure sensor and encoder inside can measure the speed, press and position precisely; Professionally developed control software can assure precisely to control the parameters of press mounting force, stop position, press mounting speed and holdup time etc, in the whole process to achieve the CNC control .

Elementary Operation:

⊙Teaching Mode: can set related parameters.

⊙Running Mode: start button. Servo pressure machine start running according to the set parameters (curve pictured at right).

⊙External Control Mode: servo pressure machine can accept the command code through external I/O port and work.

⊙Editing Function: During press mounting process allows to set varieties of conditions to control press mounting speed and the stop position; Implementing application of setting the determine window and incremental control etc.

Software of Servo Pressure Machine:

Keyboard and functional keys settings

Simulation parameters

Curve determine settings interface

⊙Program Set-allows editing procedures and setting determine conditions.

⊙Data Sampling Program-can download the data the whole process of press mounting and save in the PC.

2.Specification

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

3.Classic cases

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

C - Type Hardware Servo Driven Press Mount Speed 0~35mm/S 0.1~250KN Pressure

Contact us for more applications.
