Screw specification 1604 1605,Standard motor rated thrust 4.5 kN,Standard rated speed 60-83mm/s
Screw specification 1604 1605,Standard motor rated thrust 4.5 kN,Standard rated speed 60-83mm/s
Specifications
Brand Name :
suzhou Tongjin
Model Number :
TJEN 065
Certification :
IPA, CE certification
Place of Origin :
china
MOQ :
1 pcs
Price :
USD, negotiable
Payment Terms :
T/T, 30%payment in advance, 70% payment before delivery
Supply Ability :
100 pcs/month
Delivery Time :
4-5 weeks
Packaging Details :
nonwooden box
speed :
250 mm/s
Drive motors :
servo motors
Controller :
plc
Weight :
100 kg
Max effective travel mm :
600mm
Maximum load thrust kN :
4.5kn
Description

Application

SIMULATION AIRCRAFT AND MISSILE CARRIER, RADAR MONITORING, ETC.;

AEROSPACE TEST AND TESTING;

METAL MATERIAL PROCESSING;

ENTERTAINMENT STAGE, DYNAMIC SEATS, ETC

Technical specifications

Screw specification

 1604 1605

KW

Standard motor rated power KW

 0.4 0.4 0.75
N·m Motor rated torque N·m 1.27 1.27 2.39
r/min Rated motor speed r/min 3000 3000 3000

Reduction ratio

 3 3 5 3

Standard motor rated thrust kN

 4.5 4.31 4.5 4.5

Standard motor rated speed mm/s

 67 83 50 83

Repeated positioning accuracy mm

 ±0.01/±0.02

Maximum effective travel mm

 600

Maximum load thrust kN

 4.5

Maximum expansion speed mm/s

 1000

Magnetic switch

 AL-39DFBL-02

2M

Two wire type no contact type normal
AL-39DFL-02

2M

Two wire type no contact type normally

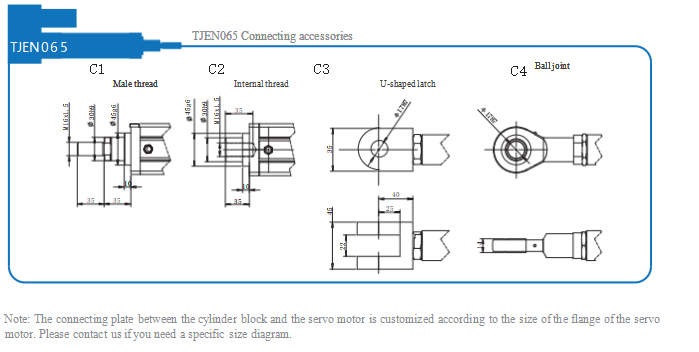

Dimensions
