Manual Lubricating Robot Rail System With Organ Shield Accelertaion ≤5m/S²
Manual Lubricating Robot Rail System With Organ Shield Accelertaion ≤5m/S²
Manual Lubricating Robot Rail System With Organ Shield Accelertaion ≤5m/S²
Manual Lubricating Robot Rail System With Organ Shield Accelertaion ≤5m/S²
Specifications
Brand Name :
TJ
Model Number :
TJS XX SXXX VXX AXX LX EX X
Certification :
ISO9001:2008,ISO14001:2004
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
10 pcs per month
Delivery Time :
6~8 weeks
Packaging Details :
non wooden box
repeatability :
±0.1
velocity :
≤3m/s
load :
≤6t
accelertaion :
≤5m/s²
stroke :
≤70m
lubricating system :
manual/automatic
dustproof modes :
sheet metal cover/organ cover
drag chain material :
engineering plastics/steel/stainless steel
Description

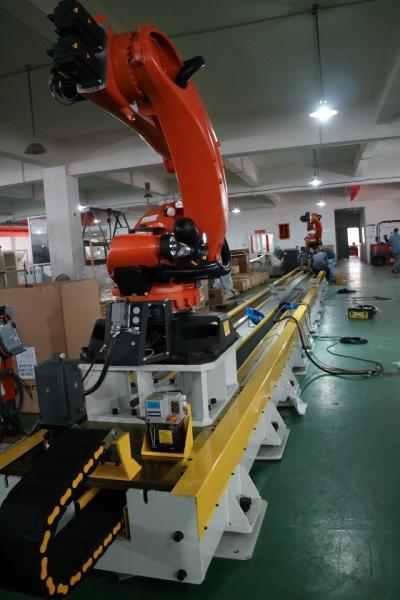

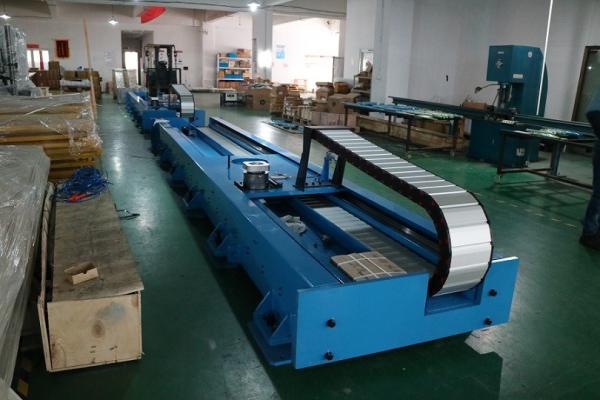

About robot linear track

The new robot 7th-axis(robot linear track) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.

Model definition

①TJS ②05 ③S040 ④V08 ⑤A08 ⑥L1 ⑦E1 ⑧2

①TJ 7th - Axis Robot

③Stroke

S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.

⑤Acceleration

A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²

⑦Dustproof modes

E1:sheet metal cover

E2:organ cover

E3:others

②Load

0.8:800kg

15:1.5t

30:3t

④Speed

V08:0.8m/s

A10:1m/s

Select any value within 3m/s.

⑥Lubricating system

L1:manual

L2:automatic

L3:others

⑧Drag chain

1:engineering plastics

2:steel

3:stainless steel

4:others

Why choose us?

1. Product advantages

★Customized travel

★Flexible installation, high precision

★High safety

★Environmental Protection

2. Mature after-sales system

Our professional technicians will install and adjust products in site and make sure the rail run normally.Our company promises one year warranty and lifetime maintenance,we will arrange our technicians to maintenance as soon as possible once the device is out of order to make sure the customers can use our product without any worries.

3. Experienced in the industry

Our company is experienced in 7th robot and system integration .We have focused on this product for more than 3 years and met multiple different customers’ requirements.

4. Extensive cooperation with robot manufacturers

We have a good cooperative relationship with some robot manufacturers such as FANUC,ABB,YASKAWA,Panda,ESTUN,EFORT etc.So if you also need us provide the robot,maybe we take advantages in the price of the robot.
