Automatic Steel Robot Rail System For Flame Plating Long Working Life
Automatic Steel Robot Rail System For Flame Plating Long Working Life
Automatic Steel Robot Rail System For Flame Plating Long Working Life
Automatic Steel Robot Rail System For Flame Plating Long Working Life
Specifications
Brand Name :
TJ
Model Number :
TJS XX SXXX VXX AXX LX EX X
Certification :
ISO9001:2008,ISO14001:2004
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
10 pcs per month
Delivery Time :
6~8 weeks
Packaging Details :
non wooden box
repeatability :
±0.1mm
velocity :
≤3m/s
load :
≤6t
accelertaion :
≤5m/s²
stroke :
≤70m
lubricating system :
manual/automatic
dustproof modes :
sheet metal cover/organ cover
drag chain material :
engineering plastics/steel/stainless steel
Description

high tensile robot rail system used for flame plating,long working life 7th robot axis easy&flexible to install

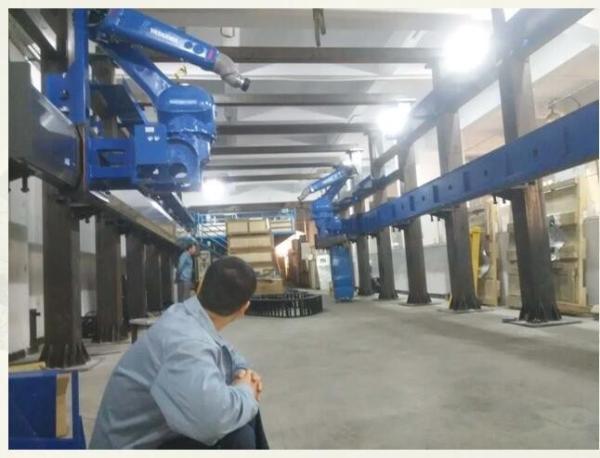

About 7th axis

The new robot 7th-axis(robot rail) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.

Model definition

TJS 05 S040 V08 A08 L1 E1 2

↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

①TJ 7th - Axis Robot

③Stroke

S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.

⑤Acceleration

A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²

⑦Dustproof modes

E1:sheet metal cover

E2:organ cover

E3:others

②Load

0.8:800kg

15:1.5t

30:3t

④Speed

V08:0.8m/s

A10:1m/s

Select any value within 3m/s.

⑥Lubricating system

L1:manual

L2:automatic

L3:others

⑧Drag chain

1:engineering plastics

2:steel

3:stainless steel

4:others

Length configurations

single length is 7m, travel is 6m
some differences for different articulate robot

Options/Accessories


★Control system related to motion

★Dustproof components:

(1)organ shield

(2)Sheet metal guard

★GAMBINI lubrication unit for gears and racks

★Automatic centralized lubrication system for guide rails

★Segment-based travel switch

★High-precision displacement grating scale
