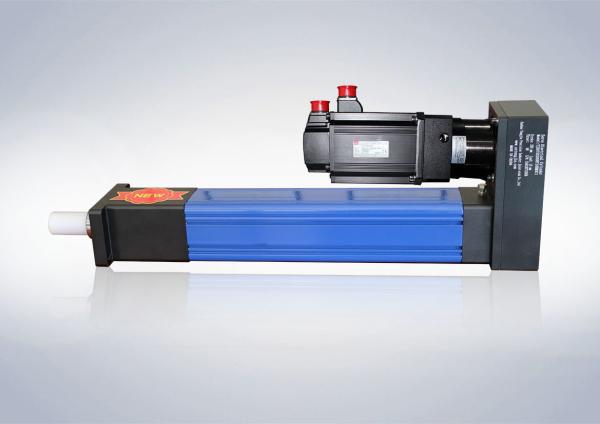

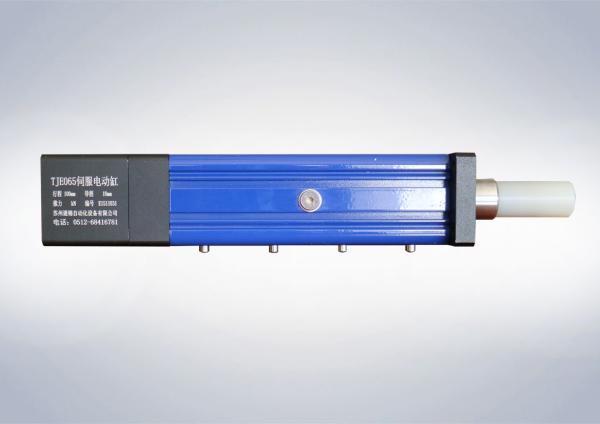

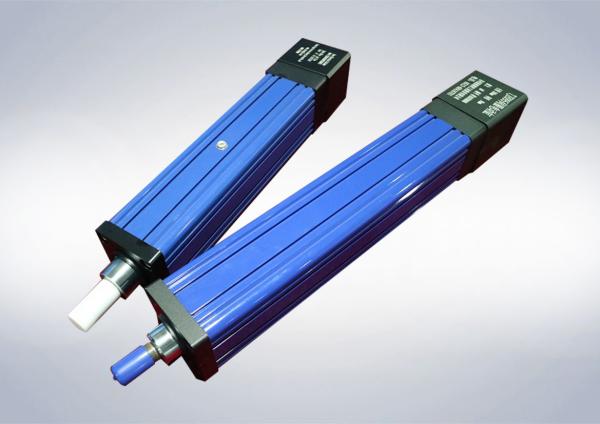

Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors
Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors
Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors
Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors
Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors
Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors
Specifications
Brand Name :
TJ
Model Number :
TJE065,TJE075,TJE095
Certification :
ISO9001:2008,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable,400 USD ~ 50,000 USD
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
800 pcs per month
Delivery Time :
3-4 weeks
Packaging Details :
external packing:carton or non wooden box;cushion packing:EPE foam
stroke :
50~1500mm
output force :
up to 100KN
speed :
up to 300mm/s
operating ambient temperature :
-20~80℃ in general
operating life :
100,000 km in general
material :
aluminium shell(normal) & steel shell(special)
power :
electric
repeatability :
± 0.01mm
Description

Structure diagrams

Best Sellers Models Electric Cylinder,Fast Response Linear Actuator Match With Servo Motors

Application Field


Military Equipment:Radar, missile erecting support,swaying platform of armored car, cabin door open on warship/plane etc, height adjustment of seat, weapon servo system, lifting stand , height adjustment of artillery on the tank etc.


Special Equipment: Automatic equipment, logistics transmission, elevating platform, leaning adjustment, valve control, coordinates manipulator, mechanical device, CT gamma, food and pharmaceuticals industry, numerial control, textile device etc.


Experimental Equipment:Simulation platform, test platform, wave machine, measurement equipment etc.

Maintenance


Before delivery cylinder is fully loaded lubricating grease NO.3 DIN GB7324-1994.
There is a bolt on the right above of actuator , unscrew it with tool and than put the lubricating oil(better MOBIL) slowly into it(5-10 drips is enough) and then fix the bolt. Once every 2 or 3 month is OK.
