Specifications
Brand Name :
TJ
Model Number :
TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
20 pcs per month
Delivery Time :
4-5weeks
Packaging Details :
non wooden box
machine model :
C-type/four-column type/desktop type
control forms :
touch screen type/computer type
pressure range :
0.1~250KN
max. effective stroke :
500mm
pressing mounting speed :
0~35mm/s
fast forward/return speed :
0~100mm/s
max. dwell time :
3000s
repeatablity :
±0.01
Description

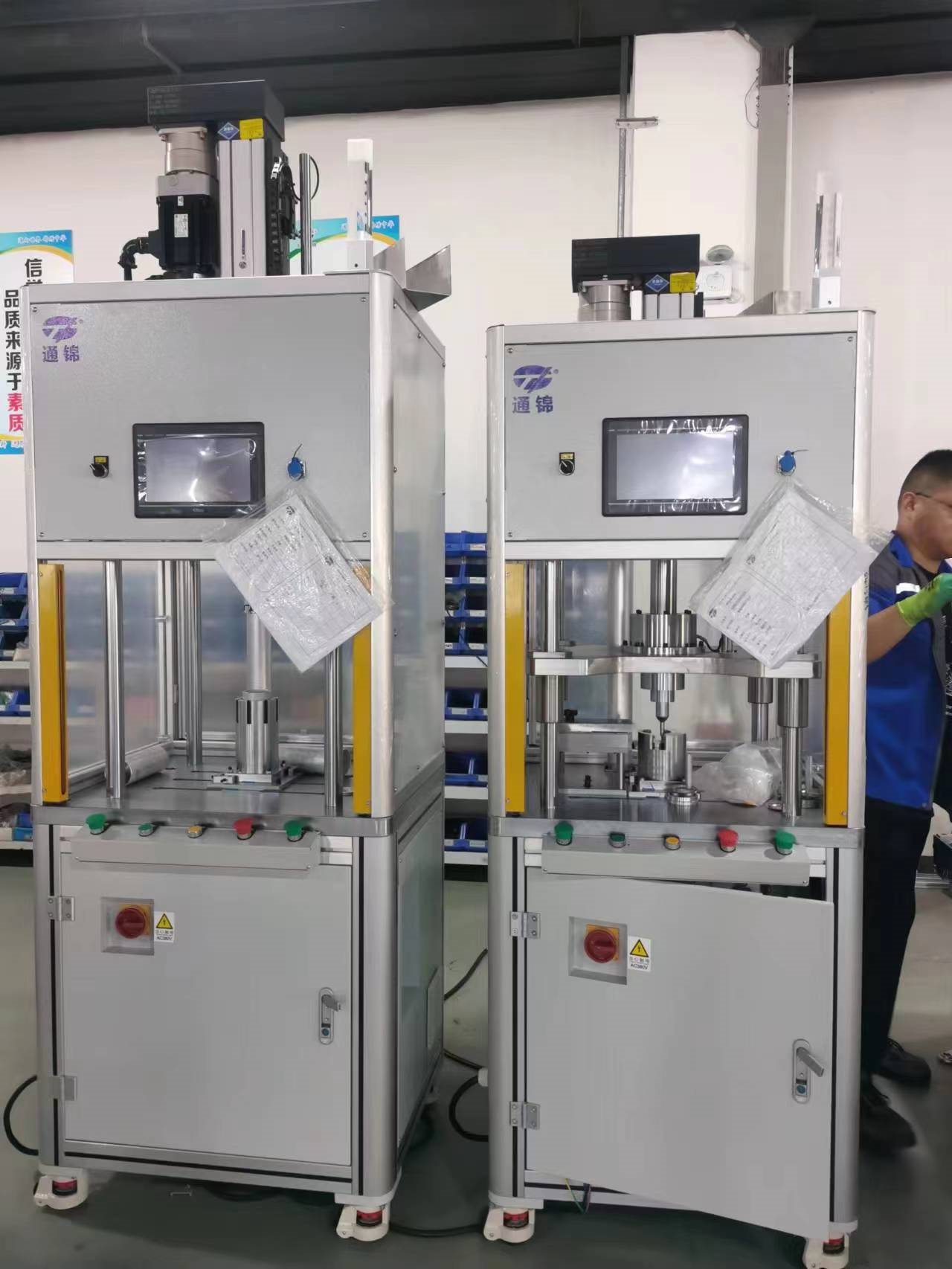

The Ball Joint Link Servo Riveting Machine is a specialized equipment designed for efficiently and accurately riveting ball joint links. Ball joint links are mechanical connectors commonly used in various industries, such as automotive, machinery, and engineering equipment.

Main Features

1.The servo press riveting machine for ball joint links is a specialized equipment designed to rivet ball joint links efficiently and precisely. Ball joint links are mechanical connectors commonly used in various industries, such as automotive, machinery, and engineering equipment. The servo press riveting machine combines servo control technology with riveting processes to achieve high productivity, accuracy, and stability during the riveting operation.

Key features and advantages of the servo press riveting machine for ball joint links include:

Servo Control Technology: The servo control system ensures precise control of the force and position during the riveting process, guaranteeing the accuracy and consistency of each riveting operation. This is crucial for maintaining the quality and reliability of the ball joint links.

Efficient Riveting: The servo control technology enables the machine to respond rapidly and make adjustments quickly, resulting in efficient riveting operations and improved production efficiency.

High Precision: The machine exhibits excellent riveting precision and repeatability, ensuring consistent riveting quality and reducing the occurrence of defective products.

Automation Control: The servo press riveting machine is equipped with advanced automation control systems, allowing for automated riveting operations, reducing manual intervention, and enhancing production efficiency.

User-Friendly Interface: The control system of the servo press riveting machine usually features a user-friendly interface, making the operation simpler and more intelligent.

Energy Efficiency and Environmentally Friendly: The machine incorporates advanced energy-saving technology, reducing energy consumption and minimizing environmental impact during the production process.

The application of the servo press riveting machine for ball joint links is crucial in the automotive and engineering machinery industries. It enhances manufacturing efficiency and product quality, while reducing labor costs and defective rates, thus enhancing the competitiveness and market share of manufacturing companies. As technology continues to advance, the performance and functionalities of the servo press riveting machine will continuously improve, driving the development and progress of related industries.

Ball joint links find extensive applications in various industries，Servo Control Technology，Efficient Riveting，

Dimensions

Ball joint links find extensive applications in various industries，Servo Control Technology，Efficient Riveting，

Model Stroke(mm) D(mm) S(mm) L2(mm) W2(mm) H2(mm) L1(mm) W1(mm) H1(mm)
TJ-SP-10 200 150 300 350 300 770 670 750 1695
TJ-SP-20 200 150 300 350 300 770 670 750 1715
TJ-SP-30 200 200 400 450 400 770 770 900 1910
TJ-SP-50 200 200 400 450 400 770 770 950 1958
TJ-SP-70 200 250 400 550 500 770 870 1100 2095
TJ-SP-100 200 300 400 650 600 770 970 1200 2180

★Only for reference.Specific parameters are subject to the agreement.

Comparison

Compared with hydraulic/pneumatic pressing mounting machines,servo machines have many obvious advantages.

servo hydraulic pneumatic
pressure range 0.1~400KN 200~5000KN 1~20KN
pressure precision 0.2 % F.S 2%F.S 2%F.S
repeatability 0.01mm 0.02mm 0.02mm
max. speed 250 mm/s 30 mm/s 50 mm/s
working life 10 million times 10 years (need maintenance) 5-10 years(need maintenance)
stroke 10-500 mm 200-600 mm 10-100 mm
energy consumption

energy

saving

 high consumption high consumption
maintenance easy&seldom hard&often often
environmental nature non-pollution much pollution much noise

Parameters Table

Items/Type Unit

TJ-SP

-05

Maximum value KN 5

Allowance

range

 KN 0.5-5

Minimum adjustable

unit

N

1

Minimum

detection

value

0.2% of the maximum pressure

Lead

Maximun

value

 mm 200

Minimum adjustable

unit

mm

0.01

Speed

Press

mounting

 mm/s 0-35

Fast forward/

return

mm/s

0-100

Minimum adjustable

unit

mm/s

0.01

Dwell

time

Maximum

vaule

 S 3000

Minimum adjustable

unit

S

0.1
Repeatability mm ±0.01
Power kw 0.75
Voltage Tri-phase V 380/220

Items/Type Unit

TJ-SP

-100

Pressure

range

 Maximum value KN 100

Allowance

range

 KN 10-100

Minimum adjustable

unit

N

1

Minimum

detection

value

0.2% of the maximum pressure

Lead

Maximun

value

 mm 500

Minimum adjustable

unit

mm

0.01

Speed

Press

mounting

 mm/s 0-35

Fast forward/

return

mm/s

0-100

Minimum adjustable

unit

mm/s

0.01

Dwell

time

Maximum

vaule

 S 3000

Minimum adjustable

unit

S

0.1
Repeatability mm ±0.01
Power kw 7.5
Voltage Tri-phase V 380/220

★Only for reference.The stroke is optional,specific parameters are subject to the agreement.
