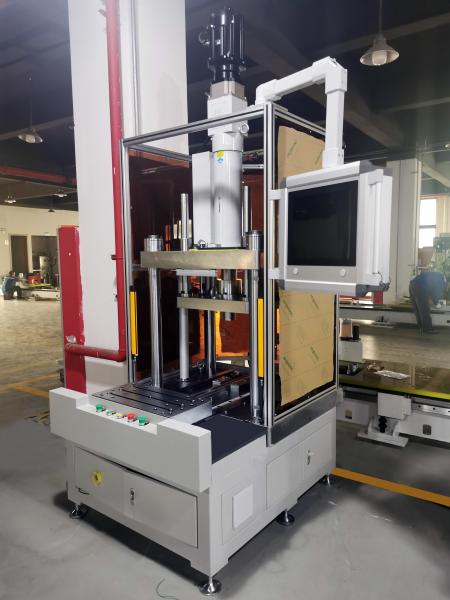

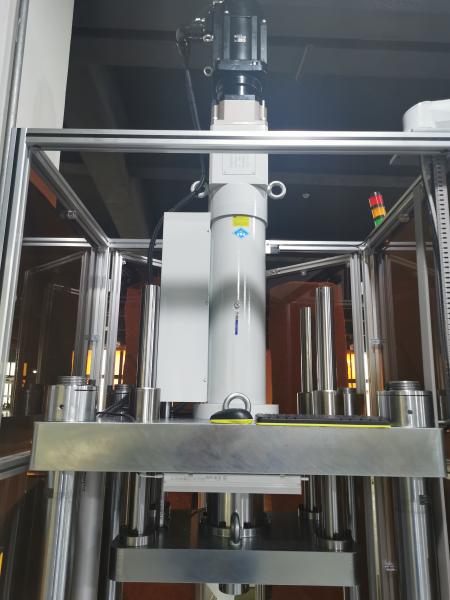

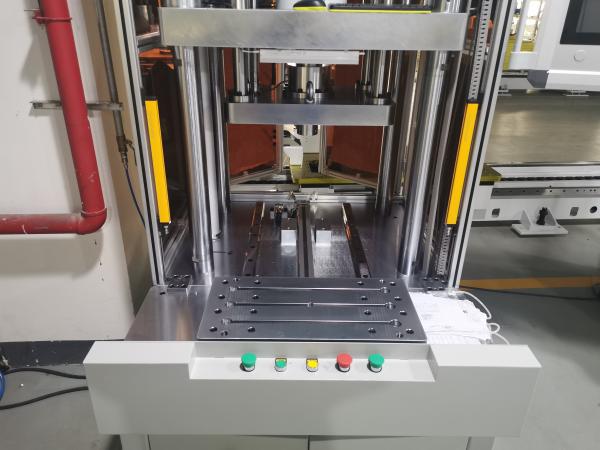

Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press
Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press
Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press
Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press
Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press
Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press
Specifications
Brand Name :
TJ
Model Number :
TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
20 pcs per month
Delivery Time :
5-6 weeks
Packaging Details :
non wooden box
machine model :
C-type/four-column type/desktop type
control forms :
touch screen type/computer type
pressure range :
0.1~250KN
max. effective stroke :
500mm
pressing mounting speed :
0~35mm/s
fast forward/return speed :
0~100mm/s
max. dwell time :
3000s
repeatablity :
±0.01
Control Mode :
PLC
Frequency :
50/60Hz
Noise Level :
≤75dB
Positioning Accuracy :
0.01mm
Power Source :
Electric
Pressure Adjustment :
Stepless
Pressure Holding :
Yes
Pressure Range :
0-400kg
Product Name :
Servo Electric Press
Repeatability :
0.02mm
Safety Protection :
Yes
Speed Range :
0-1000mm/s
Stroke Length :
50-150mm
Voltage :
220V/380V
Weight :
1300KG
Capacity :
30T
Control System :
PLC
Dimension :
1400x1400x1700mm
Model :
SEP-30T
Motor Power :
2.2KW
Safety Device :
Light Curtain
Shut Height :
250mm
Slide Adjustment :
20mm
Speed :
50-100SPM
Stroke :
50mm
Table Size :
400x400mm
Warranty :
1 Year
Description

Motor Rotor Press Machine for Secure Assembly

motor rotor press machine, specifically designed for assembling the outer rotor of a motor onto a shaft with a tight fit. An outer rotor motor is a type of motor where the rotor is positioned outside of the stator. During the motor manufacturing process, it is essential to securely press the outer rotor onto the shaft to ensure proper functionality and performance of the motor.

The main features and characteristics of the motor rotor press machine include:

Press Force Control: The machine is equipped with a force control system that allows precise control of the pressing force. This ensures a tight and stable connection between the outer rotor and the shaft, preventing any looseness or detachment.

Automation: Modern machines often come with automation features, making the pressing process more efficient and accurate. Automation also increases production efficiency and reduces the possibility of human errors.

Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press

Suitable for Different Specifications: The machine is designed to accommodate various sizes and types of motor outer rotors and shafts, as different motor models may require different press configurations.

Safety Measures: Safety features are integrated into the machine to ensure the safety of operators. This may include protective covers, safety sensors, emergency stop buttons, etc.

Reliability: The pressing process significantly affects the motor's performance and lifespan, so the machine needs to be reliable to ensure consistent and stable pressing quality.

Data Recording and Feedback: Some machines are equipped with data recording and feedback capabilities, allowing the logging of pressing data for quality control and tracking purposes.

Motor Rotor Press Machine for Secure Assembly，Safe & Reliable Motor Rotor Press

The motor rotor press machine plays a crucial role in the motor manufacturing process, ensuring that the motor meets the required quality and performance standards.
