Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
Specifications
Brand Name :
TJ
Model Number :
TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
20 pcs per month
Delivery Time :
5-6 weeks
Packaging Details :
non wooden box
machine model :
C-type/four-column type/desktop type
control forms :
touch screen type/computer type
pressure range :
0.1~250KN
max. effective stroke :
500mm
pressing mounting speed :
0~35mm/s
fast forward/return speed :
0~100mm/s
max. dwell time :
3000s
repeatablity :
±0.01
Control Mode :
PLC
Frequency :
50/60Hz
Noise Level :
≤75dB
Positioning Accuracy :
0.01mm
Power Source :
Electric
Pressure Adjustment :
Stepless
Pressure Holding :
Yes
Pressure Range :
0-400kg
Product Name :
Servo Electric Press
Repeatability :
0.02mm
Safety Protection :
Yes
Speed Range :
0-1000mm/s
Stroke Length :
50-150mm
Voltage :
220V/380V
Weight :
1300KG
Capacity :
30T
Control System :
PLC
Dimension :
1400x1400x1700mm
Model :
SEP-30T
Motor Power :
2.2KW
Safety Device :
Light Curtain
Shut Height :
250mm
Slide Adjustment :
20mm
Speed :
50-100SPM
Stroke :
50mm
Table Size :
400x400mm
Warranty :
1 Year
Description

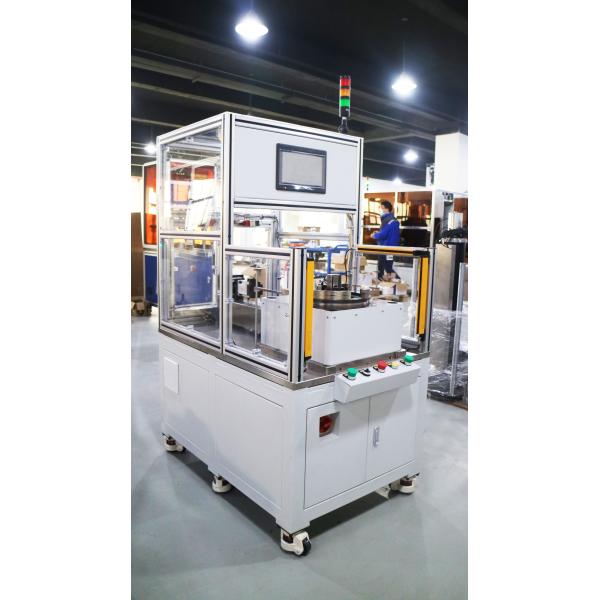

Servo Electric Frame Insertion Press Machine

This is a specialized mechanical equipment used to insert a frame or framework into another component or device. During the manufacturing process, there are instances where it is necessary to insert a frame into other parts to construct complex devices or components. The Inserting Frame Press Machine ensures the correct installation and tight connection of the frame to ensure the stability and performance of the device or component.

Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation

The main features and characteristics of this equipment include:

Frame Insertion: The machine precisely controls the force and alignment to insert the frame into another component, ensuring its accurate positioning and fixation.

Automation: Modern Inserting Frame Press Machines often come with automation features, which can improve production efficiency and reduce the possibility of human errors.

Suitable for Different Specifications: The equipment is designed to accommodate frames of various sizes and types to meet different production needs.

Safety: The machine is equipped with safety measures to ensure the safety of operators. This may include protective covers, safety sensors, emergency stop buttons, etc.

Reliability: The frame insertion process is critical to the quality and performance of the final product. Therefore, the equipment needs to be reliable to ensure consistent and stable frame insertion quality.

Inserting Frame Press Machines are widely used in various manufacturing industries, such as automotive manufacturing, electronics, appliance manufacturing, etc., for assembling various complex devices and components.

Servo Electric Frame Insertion Press Machine， Servo Electric Press for Frame Insertion and Fixation
