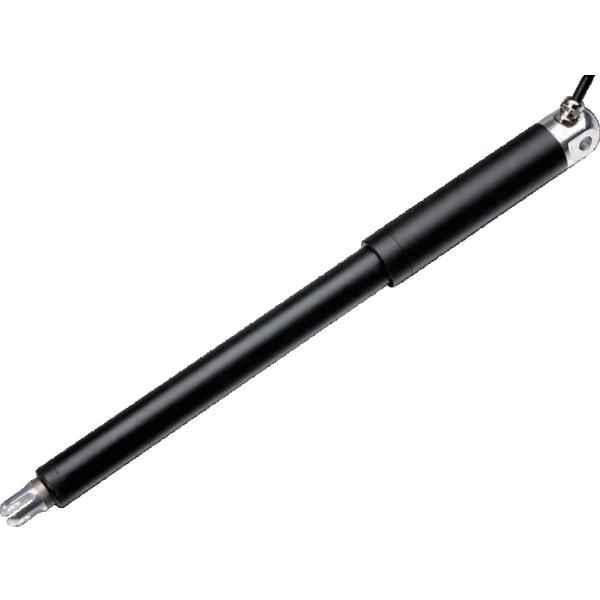

TJED35 Series Up To 800N Fast Linear Actuator Electric Rotary
TJED35 Series Up To 800N Fast Linear Actuator Electric Rotary
Specifications
Brand Name :
TJ
Model Number :
TJED35
Certification :
ISO9001:2008,CE
Place of Origin :
China Suzhou
MOQ :
1 pcs
Price :
negotiable,400 USD ~ 50,000 USD
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
1000 pcs per month
Delivery Time :
3-4 weeks
Packaging Details :
external packing:carton or non wooden box;cushion packing:EPE foam
stroke :
50~1500mm
output force :
up to 800N
speed :
up to 40mm/s
operating ambient temperature :
-20~80℃ in general
operating life :
100,000 km in general
material :
aluminium shell(normal) & steel shell(special)
power :
electric
repeatability :
± 0.01mm
Color :
Silver gray or black
Product name :
Electric cylinder TJED35 Series
Description

TJED35 Series Up To 800N, Linear Actuator,Electric Linear Actuator,Fast Linear Actuator,Electric Rotary Actuator

Tongjin High Precision Linear actuators

Tongjin has a professional, united, and energetic management team, adhering to the "Science and technology as a precursor to quality and development" core concept, to provide customers with superb technology, better quality and excellent service at anytime, anywhere.

1. Descriptions

Tongjin Linear actuators are a type of actuator that convert rotational motion in motors into linear or straight push/pull movements. Linear actuators are ideal for all types of applications where tilting, lifting, pulling or pushing with pounds of force are required. Electric linear actuators are often the preferred solution when you need simple, safe and clean movement with accurate precision and smooth motion control. LINAK created the first electric linear actuator in 2002 and has led the industry in linear movement ever since.

2.Specifcations

Voltage 1 2V DC, 24V DC, 36V DC, 48V DC
Maximum Load 800N
The fastest speed in full load 40mm/s( 100N)
Minimum installation size S+240mm(S< 300mm)
S+260mm(S> 300mm)
Colour Silver gray or black
Noise <56db
Safety and regulation certification ISO9001-2008,QE,ROHS
Working temperature range + 45°C 20°C
Other options Hall sensor
内Built-in limit switch (but not adjustable)

Code

 Rated load Self locking force N (under the condition of thrust) (A) Rated loadCurrent (A) (24VDC)mm/s Output velocity no-load (24VDC) mm/s (24VDC)mm/s Full load of rated load (24VDC) mm/s
N Thrust N N Pull N
A 800 800 1200 1.4 6.5 5.8
B 600 600 800 1.4 12 11.4
C 400 400 400 1.2 18 13
D 200 200 200 1.0 22 17.6
E 100 100 100 1.0 43 40
(24V DC)

General Features

Voltage 1 2V DC, 24V DC, 36V DC, 48V DC
Maximum Load 800N
The fastest speed in full load 40mm/s( 100N)
Minimum installation size S+240mm(S< 300mm)
S+260mm(S> 300mm)
Colour Silver gray or black
Noise <56db
Safety and regulation certification ISO9001-2008,QE,ROHS
Working temperature range + 45°C 20°C
Other options Hall sensor
Built-in limit switch (but not adjustable)


TJED35 Model Selection
Load and speed

Code

 Rated load Self locking force N (under the condition of thrust) (A) Rated loadCurrent (A) (24VDC)mm/s Output velocity no-load (24VDC) mm/s (24VDC)mm/s Full load of rated load (24VDC) mm/s
N Thrust N N Pull N
A 800 800 1200 1.4 6.5 5.8
B 600 600 800 1.4 12 11.4
C 400 400 400 1.2 18 13
D 200 200 200 1.0 22 17.6
E 100 100 100 1.0 43 40
马达电压(24V DC)


Control mode
0, No overcurrent protector
1,Overflow protector
3, No Holzer sensor
4, Install Holzer sensor
Line length
1 straight line*300mm 2= straight line*600mm
3= straight line*1000mm A= Customization

3. Tongjin Fabric Tongjin Linear Actuator

What is a Linear Actuator? An electric linear actuator is a device that converts the rotational motion of an AC or DC motor into linear motion. It can provide both push and pull movements. This movement makes it possible to lift, drop, slide, adjust, tilt, push or pull objects with the simple push of a button.

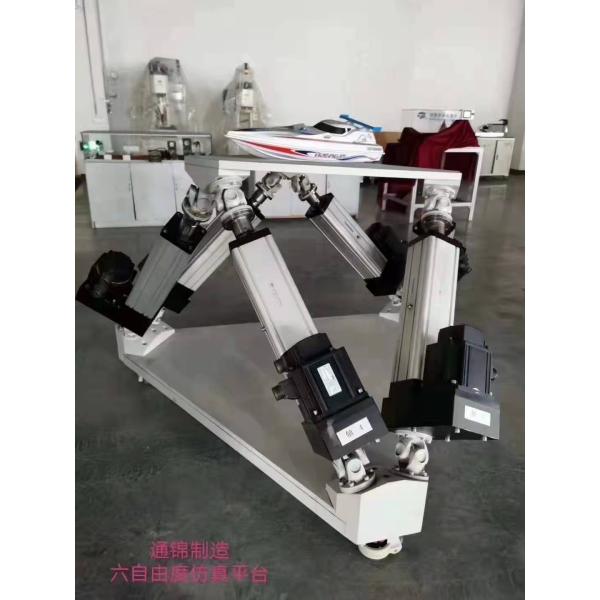

4. More pictures

TJED35 Series Up To 800N Fast Linear Actuator Electric RotaryTJED35 Series Up To 800N Fast Linear Actuator Electric Rotary
TJED35 Series Up To 800N Fast Linear Actuator Electric Rotary
