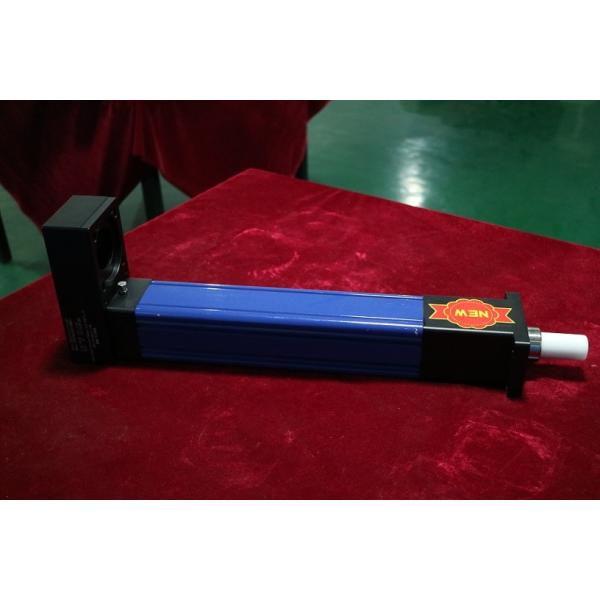

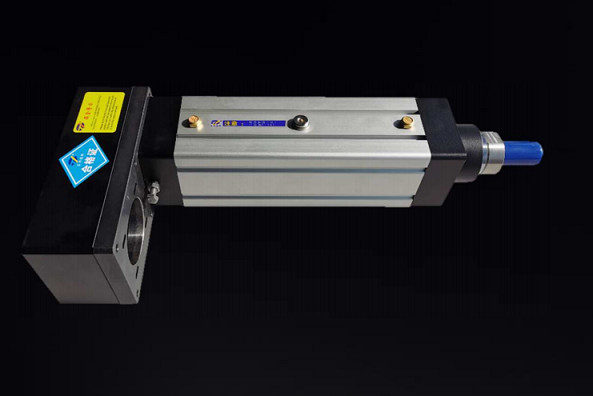

NEW DESIGN TJEN 075 SERIES

Where we change?

1. More interface choices(bare ,can be customized),provides more design ideas for end users

2. Modular design,Compact structure with small inertia,high rigidity and low noise

3. More flexible to to mount the electrc cylinder

All Brand-new Internal Structure

1. We use new mould for the cylinder profile to make the cylinder with better rigidity and longer stroke.

2. We redegign the connection between the push rod and piston to shorten the piston length,so that we can simplify the processing technology and make the delivery time shorter.

3. Air holes with mufflers are added at both ends of the cylinders to reduce the energy consumption.

4. The push rods adopt self-lubricated bearing guidance,and the more uniform camber surface fitting enables the cylinder to have some lateral bearing capacity.

Model Selection Guidances

STEP 1 :Accuracy & environmental condition

Check the basic conditions used in the application

STEP 2: Required space

Check the available space in the application and select the installation options: linear type,parallel type or bare cylinder.

STEP 3: MAX axial force required

Check the axial force to select the servo motor and gearbox(if necessary).

STEP 4: MAX speed

Check the required speed to select the screw lead.

STEP 5: Required stroke

Select the required stroke from a list of standard stroke.If the required stroke is not listed: define the length of the available stroke at a minimum of 10 mm.Note the value of the maximum possible travel of the selected model.

STEP 6: Lateral force

Determine the lateral force of the application.The new series of cylinders are allowed to bear some lateral force.Please communicate with us if you need to bear the lateral force in your application.

STEP 7 :Motor mounting flange

Select the appropriate motor mounting flange, linear or parallel.

STEP 8: The push-rod load form

Selects the electric cylinder push-rod end for load connection.

We also provide customized solutions!

Applications

★ Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.

★ Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.

★ Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.
