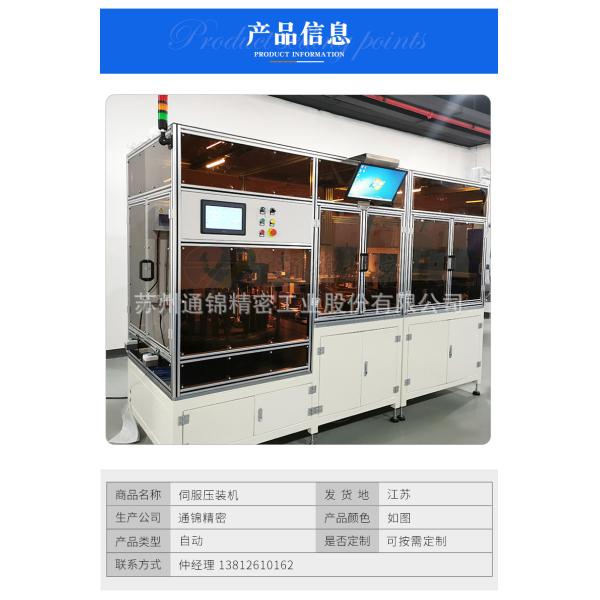

Four Column Servo Press Machine With Stator Monitoring System

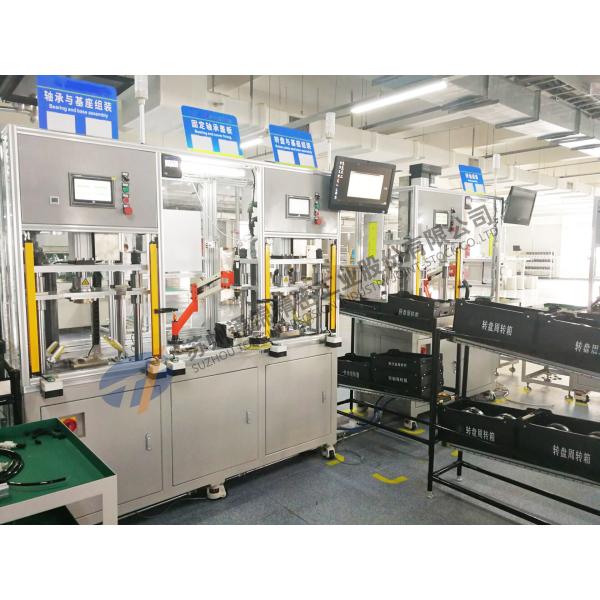

Four Column Servo Press Machine With Stator Monitoring System

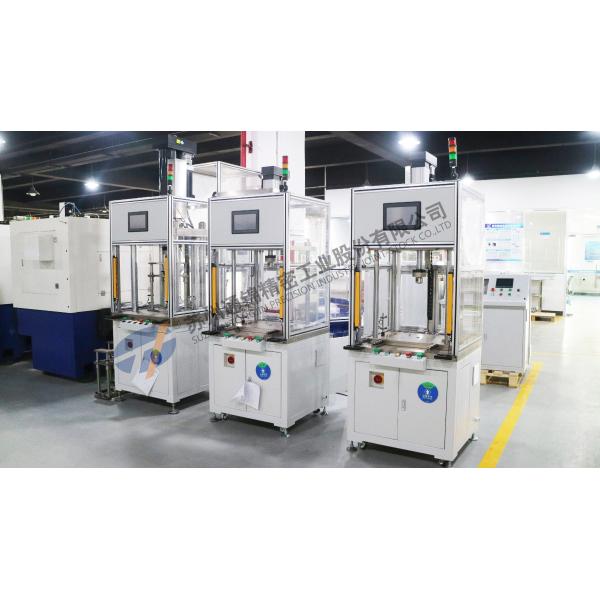

Four Column Servo Press Machine With Stator Monitoring System

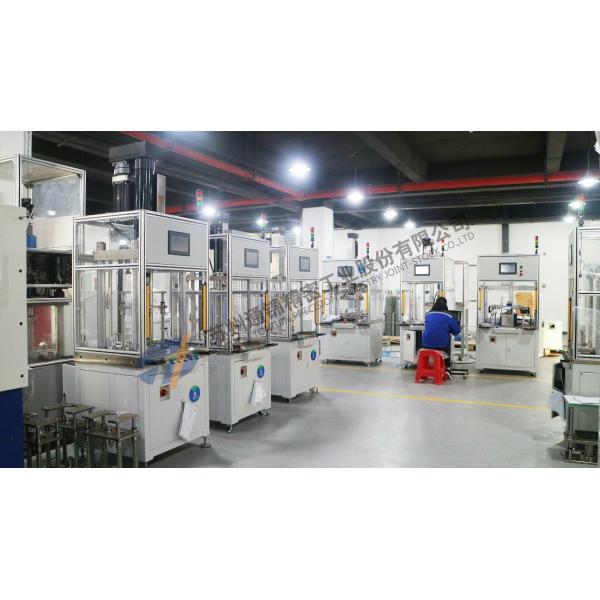

Four Column Servo Press Machine With Stator Monitoring System
Specifications
Brand Name :
TJ
Model Number :
TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T,30% payment in advance,70% before delivery
Supply Ability :
20 pcs per month
Delivery Time :
6~8 weeks
Packaging Details :
non wooden box
name :
Servo press machine of stator monitoring system
Power source :
Servo-driven
machine model :
C-type/four-column type/desktop type
control forms :
touch screen type/computer type
pressure range :
0.1~300KN
max. effective stroke :
500mm
pressing mounting speed :
0~35mm/s
fast forward/return speed :
0~100mm/s
max. dwell time :
3000s
repeatablity :
±0.01
Description

Servo Press Machine Of Stator Monitoring System,Servo-Driven,Stator Monitoring

Servo press machine of stator monitoring system,servo drive

Name Servo press Shipping origin suzhou
Company name Suzhou Tongjin color picture
Product type Customerize yes

Main Features

Four Column Servo Press Machine With Stator Monitoring System

1. Diverse pressing mounting modes

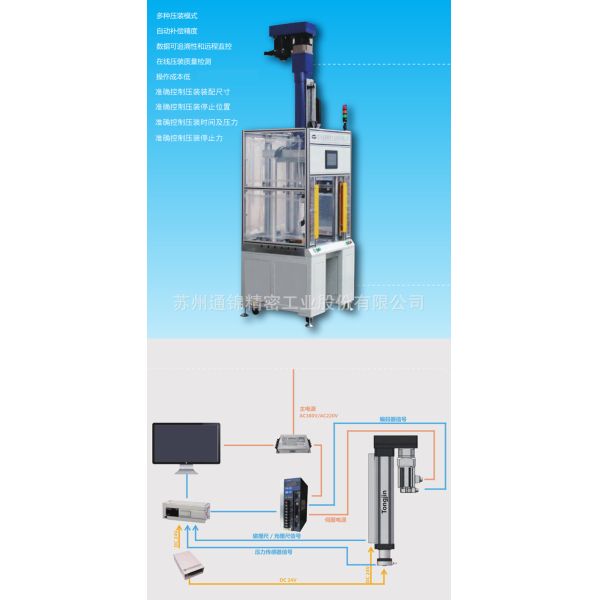

Tongjin servo press is a use of servo motor drive press, its execution process is through the software programming movement process control, transmission to the NUMERICAL control application module, and then through the servo drive servo motor movement, through the transmission device to achieve the output end of the motion control. After the pressure sensor through the shape variable feedback analog signal, after amplification, analog-to-digital conversion, into digital signal output to PLC, to achieve pressure monitoring; Position and speed monitoring are realized by analyzing position signal of encoder through servo motor.

Four Column Servo Press Machine With Stator Monitoring System

2. Online pressing quality control

--meet quality control and data management during the whole process

(1) After the operation,all the setting,result data and press displacement curve can be shown on the interface of the pressing machine.It can control interference fit quality efficiently,realize the working data traceability management,detect and remove bad products to avoid more losses.It can also help to optimize the technical parameters and designs at the same time.

(2) With the function of checking the position upon bearing force to test whether it works and the direction is right or not.

(3) With the function of detecting the pressure and sampling other pressure values(max. value ,incremental value etc.)in any position of the pressing mounting displacement range to judge whether it can satisfy the set quality control conditions or not.

(4) With the function of detecting pressure and position in the stop position to judge whether it can satisfy the set quality control condition in the stop position.

3. Automatic precision compensation

--meet the the precise assembly requirement under the special operating condition

The servo pressing machine has unique solutions:software automatic compensation,system dynamic compensation and external trigger stop function.

Environmental,energy-efficient,safe and low operating cost

(1) The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.

(2) Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.

Four Column Servo Press Machine With Stator Monitoring System

4. Environmental,energy-efficient,safe and low operating cost

(1) The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.

(2) Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.

Four Column Servo Press Machine With Stator Monitoring System

Four Column Servo Press Machine With Stator Monitoring System

Function Application

Four Column Servo Press Machine With Stator Monitoring System

1. Control pressing mounting assembly size precisely

★Servo pressing mounting machine can test the pressure precisely according to the set pressed depth and compensate workpiece size tolerance to make sure the precision.It can also set pressure and displacement quality judgement region at the same time and detect online to ensure the product pressing mounting 100% qualified.

2. Control pressing mounting stop position precisely

★The guide wheels is assembled between 2 positioning pallets.The pallets need to be mounted precisely during the assembly to ensure the size.

★Set precise stop position and detect stop pressure.

3. Control pressing mounting time and pressure

★Servo pressing machine can conduct precise regular time and pressure operation to ensure the safe and reliable bond.It is widely used in the bonding operation and the ultrasonic welding.

4. Control pressing mounting stop force precisely

★The encapsulation of aluminium casing needs precise force and displacement control.Set the pressure accurately and control the stop position to avoid the motor being damaged by pressure.

Four Column Servo Press Machine With Stator Monitoring System

Parameters Table

Items/Type Unit

TJ-SP

-01

TJ-SP

-05

TJ-SP

-10

TJ-SP

-20

TJ-SP

-30

TJ-SP

-50

Maximum value KN 1 5 10 20 30 50

Allowance

range

 KN 0.1-1 0.5-5 1-10 2-20 3-30 5-50

Minimum adjustable

unit

N

1

Minimum

detection

value

0.2% of the maximum pressure

Lead

Maximun

value

 mm 200 200 200 200 250 350

Minimum adjustable

unit

mm

0.01

Speed

Press

mounting

 mm/s 0-35

Fast forward/

return

mm/s

0-100

Minimum adjustable

unit

mm/s

0.01

Dwell

time

Maximum

vaule

 S 3000 s

Minimum adjustable

unit

S

0.1
Repeatability mm ±0.01
Power kw 0.4 0.75 1.5 2.2 3.5 5.5
Voltage Tri-phase V 380/220

Items/Type Unit

TJ-SP

-70

TJ-SP

-100

TJ-SP

-150

TJ-SP

-200

TJ-SP

-250

TJ-SP

-300

Pressure

range

 Maximum value KN 70 100 150 200 250 300

Allowance

range

 KN 7-70 10-100 15-150 20-200 25-250 30-300

Minimum adjustable

unit

N

1

Minimum

detection

value

0.2% of the maximum pressure

Lead

Maximun

value

 mm 350 500 500 500 500 500

Minimum adjustable

unit

mm

0.01

Speed

Press

mounting

 mm/s 0-35 0-35 0-30 0-25 0-20 0-15

Fast forward/

return

mm/s

0-100

0-100

0-100

0-50

0-50

0-30

Minimum adjustable

unit

mm/s

0.01

Dwell

time

Maximum

vaule

 S 3000 s

Minimum adjustable

unit

S

0.1
Repeatability mm ±0.01
Power kw 7.5 7.5 7.5 7.5 11 11
Voltage Tri-phase V 380/220

★Only for reference.The stroke is optional,specific parameters are subject to the agreement.

FAQ

Q A
How much is your minimum order quantity? 1 piece.
What's the price of the product?

The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.
Which countries and regions do your products export to?

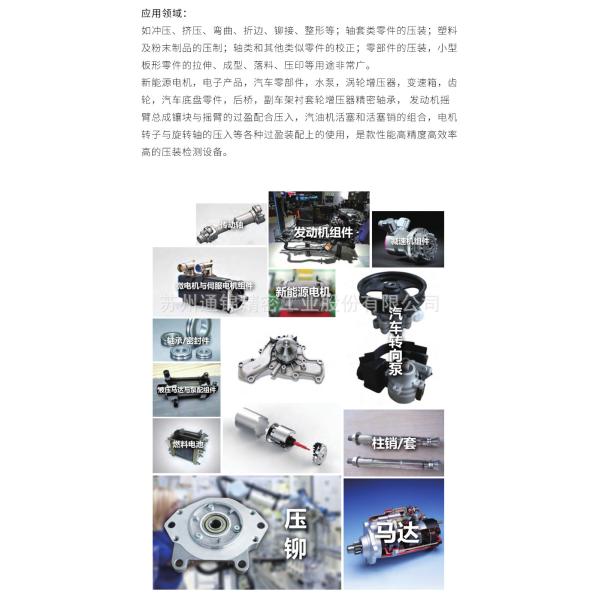

France,Germany,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for motor,automobile components,bearing pressing mounting etc.By the way,many customers replace pneumatic and hydraulic pressing machines with our servo pressing machines.
Can we use our own software and only buy the hardware from you? Yes,of course.We will communicate with our skilled technicians to ensure the software and pressing machine do the cooperative work successfully.
