Cement Plant Three Phase 35KV 5000A Intelligent Power Saving System
Cement Plant Three Phase 35KV 5000A Intelligent Power Saving System
Specifications
Brand Name :
SEBOS
Model Number :
SES
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
30% T/T as deposit, 70% T/T before shipment
Supply Ability :
50 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden case
Energy saving :
7%-18%
KVA capacity :
315kva-3150kva
Voltage :
380V-660V
Installation service :
available
After service :
available
OEM :
available
Installation time :
2 days
Warranty :
3 years
Description

1. Electric power quality problems

The common electric power quality issues in the world power applications include harmonics, three-phase asymmetry, notch, voltage flicker, resonance transient, impulse transient, voltage transient, noise, etc. Among them, harmonic and voltage transient are the most prominent power quality problems. The annual economic loss caused by power quality disturbance and electrical environmental pollution is amazing.

The EPRI report of the American Academy of Electric Power Sciences points out that losses caused by harmonics and other power quality problems in the United States are as high as $30 billion a year. In China, according to the data of "China Power Quality Industry Status and Customer Behavior Survey Report" among the 92 enterprises in 32 industries surveyed, 49 enterprises suffered economic losses of 250-350 million yuan due to power quality problems.
At present, the international electricity utilization rate is about 56%, while our electricity utilization rate is only about 35%. The important reason is the low power quality. If the power quality is improved on a large scale to improve the efficiency of power utilization, it will play a very important role in energy saving and emission reduction.

2. Power optimization scheme

intelligence electric energy saving system

Without changing the original production structure, production equipment and production technology of enterprises, SEBOS intelligent power saving system is installed at the low or high voltage terminal of transformers. Using pure physical electromagnetic interaction mode, eliminating clutter, absorbing harmonics and improving power factor in power supply, so that can balance electromagnetic interaction, reduce magnetic moment imbalance, improve mechanical efficiency of motor and improve power quality.

3. Advantage

  • Design according to actual load and electrical parameters of transformer

  • High and low voltage transformer capacity models are all matched, low voltage (380V/660V1100V), from 315KVA to 3150KVA are matched, high voltage (6300V/10000V/35000V) models are customized according to the actual load of the transformer

  • One-click switching between power-saving state and normal power supply state without affecting normal production, customer can switch repeatedly at any time in the case of continuous power supply, in order to verify the power-saving rate.

  • Installation of integrated display system, all electrical parameters are displayed in Chinese and digital, can be viewed at any time

  • Implant cloud monitoring system, through mobile phone APP or computer, timely monitoring of electricity usage

  • The special winding mode cooperates with the principle of electromagnetic balance to enhance the balance degree of three-phase current and voltage, so as to enhance the smooth operation of electrical equipment, reduce the abnormal heating, luminescence, noise and vibration of electrical equipment, and then improve the mechanical efficiency, reduce the demand for electrical energy from the power grid, so as to achieve the purpose of energy saving and protection.

4. Technology Princip

Electromagnetic balance technology / Micro magnetic field technology / Virtual capacitance technology

The core technology of SEBOS Intelligent Power Saving System is a three-phase electromagnetic balance technology with iron core and special multi-winding connection mode. Its iron core adopts anti-Z connection, balances three-phase voltage and current, balances three-phase power supply and eliminates clutter interference by overlapping magnetic fields produced by three-phase windings.

Special multi-winding connection mode can compensate magnetic flux of iron core and control the consistency of induction electromotive force of each phase to the greatest extent, so as to maintain three-phase balance, reduce additional losses such as zero-line current, and achieve the purpose of power saving.

5. Technical Comparison with energy-saving products on the market

Feature types Reactance Technology Reactive power compensation Frequency conversion technology Phase control technology Operation management SEBOS Intelligent power Saving System
Principle Step-down Reduce reactive power PWM control Phase controlled voltage Efficiency management Electromagnetic Balance Technology
Capacity Middle,small Not limited Middle,small Middle,small Not limited Not limited
Installation mode Series connection Parallel connection Series connection Series connection — Series connection
Higher harmonic Restrain Restrain Increase Increase — Reduce
Power factor Reduce Increase Increase Reduce — Increase
Three-phase Balance No No No Yes — Yes
Maintenance No Some times Always Always Always No
Using life 20 years 8 years 2-5 years 3-8 years — Over 30 years
Application Lighting device System and Single device Single device Single device System System
Structure condition Simple Complex Simple Simple — Simple
Electricity saving rate little no High little no High
Energy saving less no less less high High
Disadvantage Mainly used for lighting Only reduced the loss of the power supply Large maintenance and high harmonic generation Same as frequency conversion technology It is difficult to establish control model On-site testing before customization

6. Personalized customized

Single-phase: 110V, 220V 50A Medium and low pressure: 30KVA-2500KVA

Three-phase: 380V,6KV,10KV,35KV 5000A High pressure: 3150KVA-5000KVA

Capacity (KVA) SIZE: L (mm) SIZE: W (mm) SIZE: H (mm) Weight
315 1000 1100 2000 550
400 1000 1100 2000 650
500 1000 1100 2000 750
630 1000 1100 2000 900
800 1000 1100 2000 1000
1000 1000 1100 2000 1100
1250 1000 1100 2000 1250
1600 1000 1300 2000 1450
2000 1100 1300 2000 1650
2500 1100 1300 2000 1850
3150 1300 1300 2000 2000

7. Equipment inspection

1) Passed the qualification inspection of CNAS

2) According to CQC3103-2009

8. Equipment safety and energy saving

  • SEBOS intelligent power-saving system will not be cut off due to switch tripping

  • When the intelligent power saving system fails, the main circuit will automatically switch to the municipal power supply.

  • The load is not affected during power saving and normal electric supply conversion and the modular design of power-saving part is convenient for upgrading

  • Intelligent power saving system is installed at the secondary outlet side of transformer, which conforms to the electricity regulations.

  • SEBOS intelligent power saving system is sent to the National Smart Grid Transmission and Distribution Equipment Quality Supervision and Inspection Center and China Quality Certification Center for inspection and certification, and has obtained CMA, CE and CQC reports.

9. Reconstruction effect

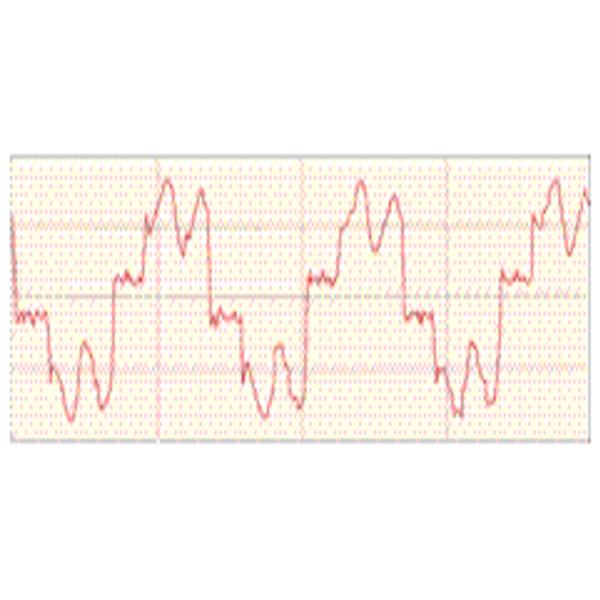

Before reconstruction

Cement Plant Three Phase 35KV 5000A Intelligent Power Saving System

After Reconstruction

Cement Plant Three Phase 35KV 5000A Intelligent Power Saving System

9. Successful cases

Cement plant

Cement Plant Three Phase 35KV 5000A Intelligent Power Saving System
