CE 10kw 60L Serpentine pipe Air Cooled Chiller
CE 10kw 60L Serpentine pipe Air Cooled Chiller
Specifications
Brand Name :
SEBOS
Model Number :
SL
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
100%T/T before shipment
Supply Ability :
100 sets per month
Delivery Time :
15 days
Packaging Details :
Wooden case
Energy saving :
20%
Refrigerant :
407
Controller :
micro-computer
protection :
Overload, high and low pressure
Cooling temperature :
7 ℃ - 35 ℃
Technical training service :
Available
Description

Industrial Air cooled Chiller Environmental protection and energy saving

1. Performance Characteristic:

1. The device can cool the water temperature ranging from 7 ℃ to 35 ℃, the low cooling temperature can be customized as per customer’s needs

2. The micro computer controls the system running and the temperature can be precise to ±1 ℃

3. The overload protection device is used for compressor and pump to prolong the service life

4. The multi protection device(antifreezing protection, high and low pressure protection and flow protection) ensures the system safety

5. The water tank is made from the stainless steel and has a heat insulation layer. Freezing pipelines have the insulation layer to improve refrigerating efficiency

6. Low speed and noise blower fan

7. The blower fan stops along with the compressor, thus effective electric energy saving

2. Specification

Model SL-3A SL-5A SL-10A SL-15A SL-20A SL-30A SL-40A SL-50A SL-60A
Refrigeration capacity KW 10 15 30 45 60 90 120 150 180
Kcal/h 7740 12900 25800 38700 51600 77400 103200 129000 154800
Compressor power KW 2.2 3.7 7.5 11 15 22.5 30 37.5 45
HP 3 5 10 15 20 30 40 50 60
Refrigerant type R22
Filling quantity KG 1.5 2.5 5 7.5 10 12 18 30 35
Water tank capacity L 60 90 180 270 360 — — — —
Evaporator type Serpentine pipe type Shell type
Freeze water pipe Inch 1 1 1.5 2.0 2 3 3 4 4
Freeze water flow rate L/min 60 90 180 270 270 270 380 460 550
M3/h 3.6 5.4 11 16 16 16 23 28 33
Fan motor Type Axial flow type blower fan
Power KW 0.45 0.45 0.45*2 0.65*2 0.65*2 0.65*4 0.65*4 1.1*2 1.8*4
Safeguard Protection of high & low pressure, compressor overload, pump overload, anti-freezing, flow rate
Power AC3+N+PE 50/60HZ
Dimensions(mm) L 750 1100 1450 2200 2200 2200 2500 2500 3000
W 680 680 790 1000 1320 1320 1320 2000 2200
H 900 1100 1120 2100 2100 2180 2290 2180 2180
Weight KG 100 160 300 700 750 1400 1600 2200 2400

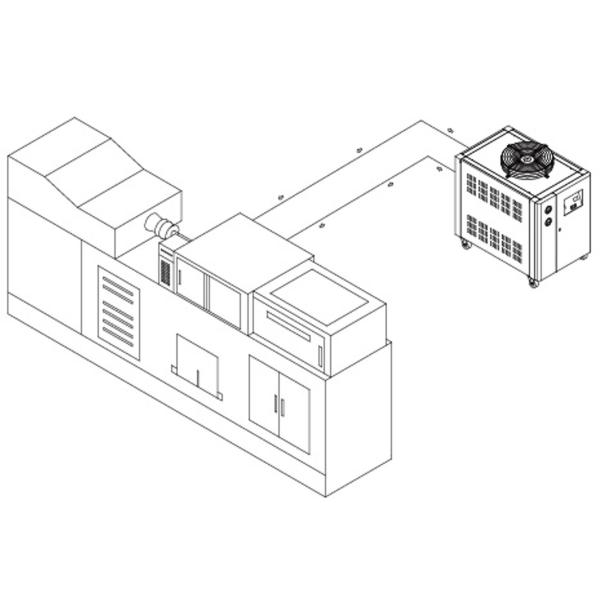

3. Diagram of installatio
