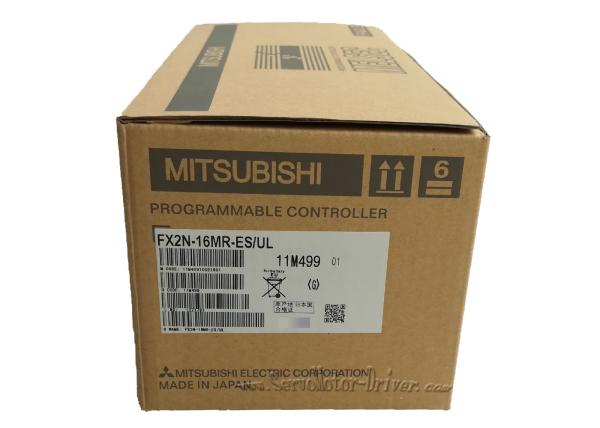

30VA Power Mitsubishi Plc Controller , FX2N 16MR ES UL Mitsubishi Plc Fx2n
30VA Power Mitsubishi Plc Controller , FX2N 16MR ES UL Mitsubishi Plc Fx2n
30VA Power Mitsubishi Plc Controller , FX2N 16MR ES UL Mitsubishi Plc Fx2n
30VA Power Mitsubishi Plc Controller , FX2N 16MR ES UL Mitsubishi Plc Fx2n
Specifications
Brand Name :
Mitsubishi
Model Number :
FX2N-16MR-ES/UL
Certification :
CE, UL, CUL, GOST, RoHS
Place of Origin :
Japan
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C,Paypal
Supply Ability :
1000pcs/Day
Delivery Time :
0-2 days
Packaging Details :
Original Packing With Good Protection Material
Application :
Refrigeration Industry
Product name :
Mitsubishi PLC Programmable Logic Controller
Condition :
New and Original
Warranty :
1 Year
Type Of Output :
1536 aux relay
Alternative number :
FX2N16MRES/UL
Power Consumption :
30VA
Description

Mitsubishi New PLC FX2N-16MR-ES/UL FX2N16MRES/UL

FX2N-16MR-ES/UL

Product Description

Manufacturer Mitsubishi Electric
Power Supply 85 - 264V AC, 50/60 Hz
Power Consumption 30VA
No. of Inputs 8 digital input S/S
No. of Outputs 8 relay output
Type Of Output 1536 aux relay
Max Number Input/output 16
Dimension 130x90x87mm
Weight 1.6 kg
Data register 1000 MW
Timers 256 timer relay
FX-16MR-ES/UL States 1000 bit
High speed counters Max 6 32 bits up/down counting ,
Operation processing time Basic instruction :0.48 microsec

Product Details

FX2N PLC

The most advanced series in the FX family of PLC’s. It is compact, offers extremely fast program execution, accepts up to eight special function modules and provides maximum flexibility and control power for all your factory automation applications.

Use a cable at least 2mm2 (AWG14) to ground equipment. Ground resistance must
be less than 100W (class 3). Note that the ground cable must not be connected to the
same ground as the power circuits. Grounding is recommended but if a proper ground
cannot be provided the PC will still operate correctly without being grounded.
Attention:

1. Don’t link the 24V terminals.
2. Never connect an external power supply to the PC’s 24V terminal.
3. External DC supplies should not compromise the SELV aspects of the FX/FX2C
products.
FX: Without extension block:FX-16M, FX-24M, FX-32M/E = 24V DC Max. 250mA
Version changes:V 1.2

FX-48M/E, FX-64M, FX-80M, FX-128M = 24V DC, 460mA
FX-48M/E, FX-64M, FX-80M, FX-128M = 24V DC, 400mA V 2.0

In addition to the features already listed, the FX2N also offers the following:

Choice of 6 I/O sizes, expandable up to 256 I/O
High processing speed, 0.08μs/basic instruction
125 applied instructions, 3072 auxiliary relays, 256 timers, 235 counters, 8000 data registers
8K step RAM program memory (expandable to 16K with EEPROM)
24Vdc 460mA output for sensors etc (250mA for 16 and 32 I/O)
100% backward compatibility with older FX units

Q&A

What is your contribution to your clients?

We try our best to provide goods in fast way and make sure it is in good condition. In that way,our clients' machine can run well as soon as possible.

What is your forecast for this industry?

As more and more work done by machine,our field has lofty propect for many years.
