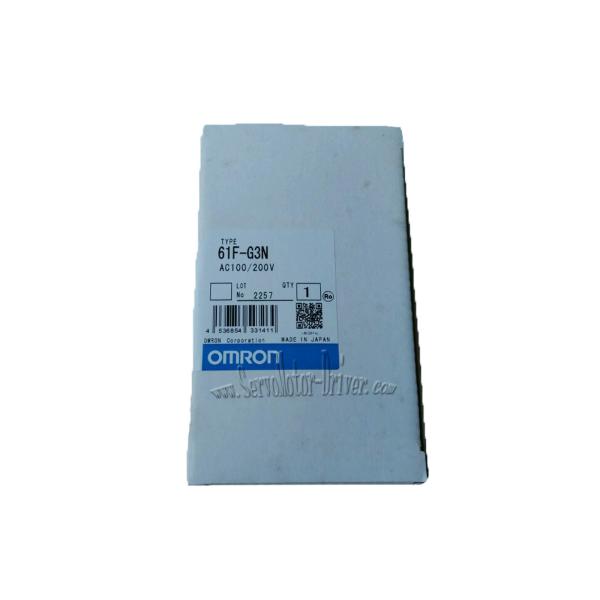

Electrode Type Omron Floatless Level Switch LED Action Display 61F G3N
Electrode Type Omron Floatless Level Switch LED Action Display 61F G3N
Specifications
Brand Name :
Omron
Model Number :
61F-G3N
Certification :
ROHS,CE,UL,CCC,VDE
Place of Origin :
Janpan
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C,Paypal
Supply Ability :
1000pcs/Day
Delivery Time :
0-2 days
Packaging Details :
Original Packing With Good Protection Material
Application :
Machinery
Alternate Item Number :
61FG3N
Condition :
New
Warranty :
One Year
Product Name :
Electrode type liquid level switch
Shape and structure :
General erect
Description

Omron 61F-G3N or 61FG3N Electrode type liquid level switch

61F-G3N

Product Description

Name:Electrode type liquid level switch (compact insert type)

Advantage:Space saving for small control plates
Design, maintenance simple
Compact design of high 49.4mm x wide 38mm x thick 84mm.
• with LED action display, the working state is clear at a glance.
• the 11 foot type ensures an independent 2C connection by losing out.
Compliance with CE (N, N8) and UL/CSA (N8) standard

Control objects, general conditions of general water and sewage in general conditions, such as general clean water, sewage pump room and water tank, and long distance between water tank and water supply tank, need remote operation.
Rated voltage: AC100/200V (common) 50/60Hz (common)
Allowable range of voltage variation: 85 to 110% of rated voltage
Interelectrode voltage: AC8V
Interelectrode current: AC below 1mA
Power consumption: G / 3.5V: A, G2, G1 following - - I - 5.5V: A: 7.5V A following G3 - G4 - 14.5V: A following the following
Action resistance between electrodes (Jian Yizhi): 0 ~ 4K Omega 0 ~ 5K Omega 0 ~ 1.8K omega (2km) 0 ~ 0.7k omega (4km)
Inter electrode reset resistance (recommended value): About 15K Omega ~ infinity Omega, about 15K Omega 4K ~ infinity (2km) 2.5k ~ infinity (4km)
Use the cable length: below 1km below 600m 2km below, 4km below
Output: AC220V 5A (resistive load), AC220V 2A (inductive load cos phi =0.4)
Using ambient temperature: -10 ~ +55 C, -10 ~ +70, -10 ~ +55
Use of ambient humidity: 45 to 85%RH
Insulation resistance: above 100M omega (DC500V megabymeter)
Pressure resistance: AC2000V 50/60Hz 1min
Life electric: for more than 500 thousand times, more than 5 million times
Weight G: about 380g G1, G2, I: About 750g G4: about 1710g

F&A

Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.

Q: What payment terms can you accept?
A: T/T,West union,Paypal

Q: Will you help resolve problems after sale?
A: We provide best service to customers and will be glad to offer any help.
