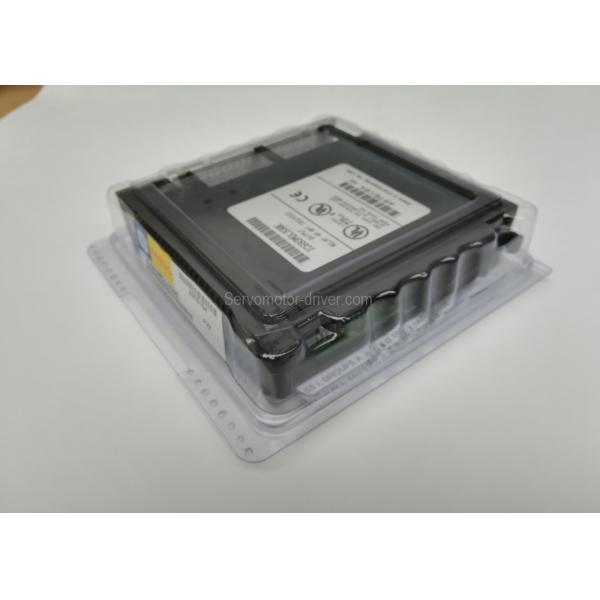

GE FANUC IC693MDL930E SERIES 90-30 Isolated Relay Output Module

The GE Fanuc IC693MDL930 is a 4 Amp Isolated Relay Output module. Designed for the Series 90-30 Programmable Logic Controller, this module provides 8 normally-open relay circuits. These enable the user to control output loads. Each circuit has a 4-amp output switching capacity. Each output point on the module is isolated from the other points and each point has a separate common power output terminal. The GE Fanuc IC693MDL Discrete I/O Modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches, and BCD thumb wheels.

GE Fanuc IC693MDL Discrete I/O Modules

Features

· AC and DC Power Types

· 8, 16, and 32 Contact Point Modules

· Multiple Input Voltage Ranges

· Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays, and indicator lamps.

· Rated Voltage 24 volts DC, 120/240 volts AC (nominal – see the following table for exceptions)

· Operating Voltage 5 to 30 volts DC 5 to 250 volts AC, 50/60 Hz

· Outputs per Module 8 isolated outputs

· Isolation 1500 volts between field side and logic side 500 volts between groups

· Maximum Load 4 amps resistive maximum per output 2 amps pilot duty per output 20 amps maximum per module for UL installations

· Minimum Load 10 mA Maximum Inrush 5 amps

· On Response Time 15 ms maximum

· Off Response Time 15 ms maximum

· Int. Power Consumption 6 mA (all outputs on) from 5 volt bus on backplane 70 mA (all outputs on) from relay 24V bus on backplane

Notice

no copy,no fake,no renew or rebulid,100% genuine.

in this item please confirm the right model number before you order it.

if you have any questions please mail us before you purchase it.

in this item we can provide you more photos in details if you wanna.

this item just include what you can see in the picture,all the accessories are showwed in the photos.
