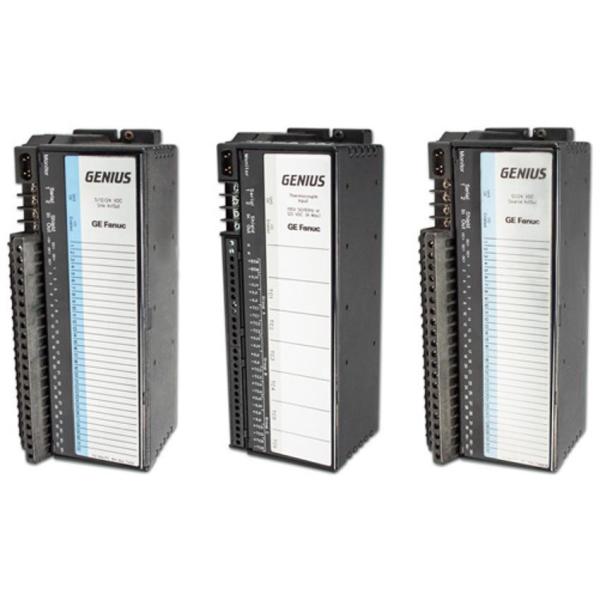

GE IC660EBD110 93-132 VAC 16-channel discrete input Block 1500 V 115 VAC

Product information GE IC660EBD110 :

The IC660EBD110 is an electronics assembly that is a component of the IC660BBD110 Sixteen (16) point, 93-132 VAC discrete input module. This electronics assembly is formerly manufactured by GE Fanuc Automation however, recently acquired by Emerson Automation. Being an electronics assembly, this component hosts the necessary circuitry to enable discrete input capabilities. The IC660EBD110 specifically hosts the voltage sensing circuits, Resistor / Capacitor network, and isolation circuits for both inputs and outputs. It is paired with the terminal base that provides input signal termination points. The compatible terminal base for use with this electronics assembly is IC660TBD110. The IC660EBD110 features Sixteen (16) discrete input channels that accept input signal voltage ranges of 93-132 VAC, 47-63 Hz. The module’s input to the ground or serial bus isolation is rated at 1500 V. This electronic assembly is capable of detecting input open and shorted wire which is reported to the CPU and indicated locally via the Unit OK LED.

Additionally, this electronic assembly has I/O Enabled LED and 16 individual LEDs that represent each input channel. The input channels have a typical processing time of 1 ms with an added delay caused by the configured filter times such as 10 to 100 ms which can be configured in 10 ms increments. The IC660EBD110 has an operating temperature of 0 to 60 Degree Celsius; Storage temperature of -40 to 100 Degree Celsius; Relative humidity of 5-95% non-condensing and operating vibration of 5-10 Hz, 2” or 5.088 displacements. The electronics assembly must be installed when power is not present in the device as this assembly does not support Removal and Insertion Under Power (RIUP).

The IC660EBD110 electronics assembly is an electronics assembly with 16 circuits that are inputs only, and GE Fanuc manufactures it as part of the Genius I/O device series. It has an operating voltage range of 93 to 132 volts AC, a heat dissipation rating of 28 Watts maximum with all 16 inputs powered on and with the full current applied.

The electronics assembly has a frequency range of 47 to 63 Hertz and the required power for the electronics assembly only is 80 milliamps of maximum device current and it is another 200 milliamps of maximum input circuit current. Other notable specifications include an input to ground isolation rating of 1500 Volts, a terminal board rating of 5 Amps, and an LED on each circuit to show the state of the input of the logic side.

The GE Fanuc IC660EBD110 electronics assembly weighs approximately 1.8 kilograms and measures 8.83 x 3.50 x 3.94 inches. It also features an operating temperature range of 0 to 60 degrees Celsius and a storage temperature range of -40 to 100 degrees Celsius and a non-condensing tolerable humidity range of 5 to 95 percent. The IC660EBD110 electronics assembly has a resistive input circuitry, and the resistive load is adequate to activate 2-wire proximity switch devices. The block has an input resistance of 11.6 kiloohms that offer a preload current of 9.9 milliamps at a voltage rating of 115 Volts. Each circuit of the IC660EBD110 electronics assembly has its LED indicator, which shows the presence of on and off threshold voltage. This electronics assembly uses 16 input references with the value 1 in the bit, indicating that the input is at or above the configured threshold voltage.
