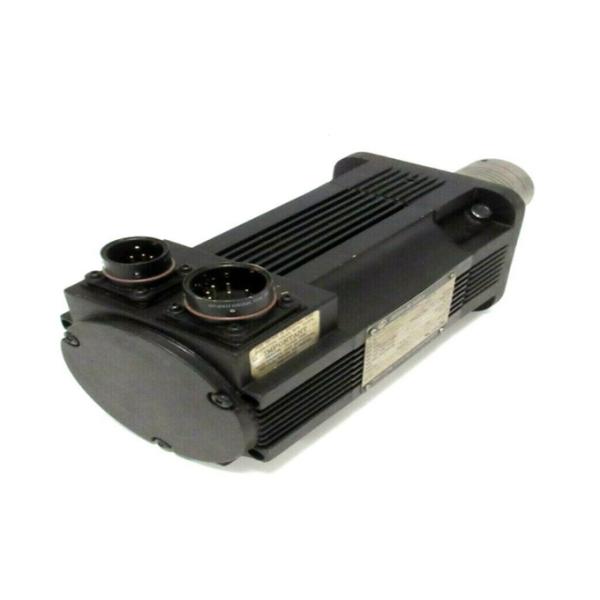

AB 1326AB-B410G-21-K4L SERVO MOTOR 1326AB SERVO MOTORS SERIES 380 TO 460 VOLTS AC

• Technical Specifications for 1326AB-B410G-21-K4L

• Brand Allen-Bradley / Rockwell Automation
  Series 1326 Motors
  Part Number 1326AB-B410G-21-K4L
  Brand Allen-Bradley/Rockwell Automation
  Series 1326 Motors
  Part Number 1326AB-B410G-21-K4L
  Category AC Brushless Servo Motors

  Voltage 380 - 460V AC
  Rated Speed 4000/5000 RPM
  Rated Power 1.0 Kilowatts
  Mounting IEC Metric Flange with Keyway
  Stall Current 2.45 Amperes
  Magnet Stack Length 10
  Product Lifecycle Status* Discontinued/Obsolete

• About 1326AB-B410G-21-K4L

• The Allen-Bradley 1326AB-B410G-21-K4L servo motor is a brushless servo motor in the 1326AB servo motors series. It operates on 380 to 460 Volts AC, with a motor rated speed of 4000 to 5000 RPM. The 1326AB-B410G-21-K4L servo motor is a brushless servo motor manufactured by Allen-Bradley as part of the 1326AB brushless servo motor series. It features an input power range of 380 to 460 Volts AC, with a motor rated speed of 4000 to 5000 RPM. The 1326AB brushless servo motors are designed and intended to provide smooth performance as well as high continuous output. The servo motor also comes with a rated torque of 2.7 N-m or 24 pounds on an inch, peak torque of 8.1 N-m or 72 pounds on an inch, as well as a rated power of 1.kilowatt. Besides, this servo motor features a diameter frame measuring 108 millimeters or 115 millimeters bolt center and a magnet stack length of 10. The 1326AB-B410G-21-K4L brushless servo motor features the NEMA, IEC metric flange mounting with a keyway option. It has a holding brake torque of 41 N-m or 72 pounds on an inch with a 24 Volts DC coil for the Allen-Bradley 1326AB-B4 frame series.

  Other features of the Allen-Bradley 1326AB-B410G-21-K4L brushless servo motor, as well as other drives in this series, include a system continuous torque of 2.7 N-m or 24 pounds on an inch, and a system permanent stall current of 2.45 Amps. The 1326AB servo motors comprise 3-phase brushless AC servo motors that offer excellent performance and meet the high standards of the Allen-Bradley servo system applications. The servo motors are compatible with the Allen-Bradley 1391 AC servo controllers. Other features include ferrite magnets for economical performance, standard MIL-spec connectors, and environmentally sealed power along with feedback cable packages. When the 1326AB motors are externally mounted or used with blower packages, they lose the IP 65 enclosure rating.

•
