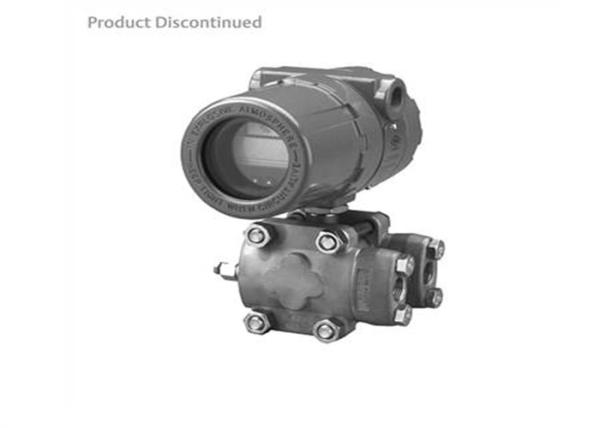

ROSEMOUNT Silicone Fill Smart 1151 GP5E12 Pressure Transmitter With CE/RoHS Certification
ROSEMOUNT Silicone Fill Smart 1151 GP5E12 Pressure Transmitter With CE/RoHS Certification
Specifications
Brand Name :
Rosemount
Model Number :
1151 GP5E12
Place of Origin :
USA
Certification :
CE
MOQ :
1
Price :
Contact me
Packaging Details :
original
Delivery Time :
3~5 days
Payment Terms :
TT
Supply Ability :
Contact me
Certifications :
CE, RoHS
Long description :
The Rosemount 1151 Pressure Transmitter Is Known To Offer Long-term And Reliable Performance.
Syltherm ® XLT :
–100 To 300 °F (–73 To 149 °C)
Range :
0-5" H2O To 0-1000 Psid
Output :
4-20 MA Dc; 10-50 MA Dc Smart 4-20 MA Dc, 4-20 MA Dc Square Root Of Input With Adjustable Damping (Flow)
Accuracy :
SMART: +/-0.1% Of Calibrated Span
Model :
1151 GP5E12
Silicone Fill Sensor :
–40 To 220 °F (–40 To 104 °
Description

ROSEMOUNT Silicone Fill Smart 1151 GP5E12 Pressure Transmitter With CE/RoHS Certification

Product Description:

Specifications
PERFORMANCE SPECIFICATIONS

(Zero-based calibrated ranges, reference conditions, silicone oil fill, 316 SST isolating diaphragms for HART 4-20 mA protocol.)

Accuracy

- Output Model Accuracy Specification and Span

  • Output Code S Ranges 3 through 8 for DP and GP;
  • Ranges 4 through 7 for HP

±0.075% of calibrated span between 1:1 to 10:1 of URL for Square Root Mode

All other ranges and transmitters ±0.25% of calibrated span for all spans

  • Output Codes E, G, L, and M
  • Ranges 3 through 5 for DP and GP ±0.2% of calibrated span for all spans
  • P8 Option: Ranges 3 through 8 for DP and GP, all HP and all LT
  • ±0.1% of calibrated span for > 10 inH 2 O
  • All other ranges and transmitters ±0.25% of calibrated span for all spans

Output Code Model Specification

  • S Ranges 3-8 ±0.1 of URL for 2 years
  • E and G Ranges 3-6
  • All other ranges
  • ±0.2 of URL for 6 months
  • ±0.25 of URL for 6 months
  • L and M All ranges ±0.25 of URL for 6 months

Output Code Model Specification

  • S DP/GP Ranges 4-8, HP Ranges 4-8
  • Zero Error = ±0.2% URL per 100 °F (56 °C)
  • Total Error = ±(0.2% URL + 0.18% of calibrated span) per 100 °F;
  • double the effect for other ranges and transmitters
  • E, G, L, and M Ranges 4-0
  • Zero Error = ±0.5% URL per 100 °F.
  • Total Error = ±(0.5% URL + 0.5% of calibrated span) per 100 °F;
  • double the effect for Range 3.

Model Zero Error Span Error

  • DP Range 4 and 5 ±0.25% of URL for 2,000 psi (13790 kPa), correctable through rezeroing at line pressure. Correctable to ±0.25% of input reading per 1,000 psi (6895 kPa)
  • DP Range 3 ±0.5%, correctable through rezeroing at line pressure. Correctable to ±0.5% of input reading per 1,000 psi (6895 kPa)
  • DP Transmitters Ranges 6 - 0 ±0.5%, correctable through rezeroing at line pressure. Correctable to ±0.25% of input reading per 1,000 psi (6895 kPa)
  • HP Transmitters All Ranges ±2.0% of URL for 4,500 psi (31027 kPa), correctable through rezeroing at line pressure. Correctable to ±0.25% of input reading per 1,000 psi (6895 kPa).

Other Performance Specifications:

0.02 URL span

0.1– % of calibrated span between 10:1 and 50:1 of URL

0.2 0.05+ x URL span for ± % of calibrated flow span for

Features:

The installed stability of this product is highly reliable, with a deviation of only ± 0.01% of URL over a period of 2 years. This ensures that you can be confident in the accuracy of your measurements, even over an extended period of time.

Multiple protocols are available for this product, including 4-20mA HART, Analog, and Low Power. This means that you can easily integrate it into your existing systems or choose a communication method that best suits your needs.

The product is also highly versatile and can be used for differential, gauge, and absolute pressure measurements. With pressure ranges up to 6000 psi, it can handle a wide variety of applications and environments.

The installed stability of this product is highly reliable, with a deviation of only ± 0.01% of URL over a period of 2 years.

  • Protocols available include 4-20mA HART
  • Analog
  • Low Power

The product is also highly versatile and can be used for:

  • Differential pressure measurements
  • Gauge pressure measurements
  • Absolute pressure measurements

With pressure ranges up to 6000 psi, it can handle a wide variety of applications and environments.

Technical Parameters:

Materials

The isolating diaphragms are available in four different materials: 316L stainless steel, Hastelloy C, Monel and Tantalum. The process flanges are compatible with the same materials as the diaphragms. In addition, adapters are available in Cadmium and Nickel plated CS, 316 SST, Hastelloy C, and Tantalum.

Accuracy

We offer two levels of accuracy for our products. SMART devices have an accuracy +/-0.1% of calibrated span, while analog products have an accuracy ranging from +/-0.2% to +/-0.25% of calibrated span.

Applications:

The Rosemount 1151 GP5E12 Pressure Temperature Transmitter is a highly reliable and accurate product that is made in the USA. It is CE certified and has a minimum order quantity of 1. The packaging is original, and the delivery time is 3-5 days. Payment terms are TT, and the supply ability is contact me for more information.

Product Application Occasions

The Rosemount 1151 GP5E12 Pressure Temperature Transmitter is perfect for a wide range of applications, including:

  • Industrial processes
  • Chemical processing
  • Food and beverage
  • Pharmaceuticals
  • Water and wastewater management
  • Power generation
Product Scenarios

The Rosemount 1151 GP5E12 Pressure Temperature Transmitter is a versatile product that can be used in a variety of scenarios, such as:

  • Intelligent Temperature Controller: The transmitter can be used as an intelligent temperature controller in industrial processes, making it easy to monitor and control temperature levels.
  • Infrared Thermometer Temperature Gun: With its accurate temperature sensing capabilities, the transmitter can be used as an infrared thermometer temperature gun in food processing and other industries where temperature measurement is critical.
  • Inert Environments: The transmitter is capable of operating in inert environments with temperatures ranging from -50 to 350 °F (-45 to 177 °C) and Syltherm ® XLT environments with temperatures ranging from -100 to 300 °F (-73 to 149 °C).
Product Specifications
  • Brand Name: Rosemount
  • Model Number: 1151 GP5E12
  • Place of Origin: USA
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: Contact me for more information
  • Packaging Details: Original
  • Delivery Time: 3~5 days
  • Payment Terms: TT
  • Supply Ability: Contact me for more information
  • Model: 1151 GP5E12
  • Output: 4-20 MA Dc; 10-50 MA Dc Smart 4-20 MA Dc, 4-20 MA Dc Square Root Of Input With Adjustable Damping (Flow)
  • Inert: –50 To 350 °F (–45 To 177 °C)
  • Syltherm ® XLT : –100 To 300 °F (–73 To 149 °C)
  • Range: 0-5" H2O To 0-1000 Psid

Support and Services:

The Pressure Temperature Transmitter product technical support and services include:

- Installation guidance

- Operating instructions

- Troubleshooting assistance

- Maintenance and repair services

- Calibration and verification services

- Technical documentation and manuals

- Training courses for operators and maintenance personnel

FAQ:

Q1. What is the brand name of this pressure temperature transmitter?

A1. The brand name is Rosemount.

Q2. What is the model number of this pressure temperature transmitter?

A2. The model number is 1151 GP5E12.

Q3. Where is this pressure temperature transmitter made?

A3. It is made in the USA.

Q4. Does this pressure temperature transmitter have any certifications?

A4. Yes, it has the CE certification.

Q5. What is the minimum order quantity for this pressure temperature transmitter?

A5. The minimum order quantity is 1.

Q6. What is the price of this pressure temperature transmitter?

A6. Please contact us for pricing information.

Q7. What is the packaging of this pressure temperature transmitter?

A7. It comes in its original packaging.

Q8. What is the delivery time for this pressure temperature transmitter?

A8. The delivery time is usually 3 to 5 days.

Q9. What are the payment terms for this pressure temperature transmitter?

A9. We accept TT (Telegraphic Transfer).

Q10. What is the supply ability of this pressure temperature transmitter?

A10. Please contact us for information on supply ability.
