Rosemount ™ 3144P temperature transmitter, using Rosemount X-well ™ technology
Support Model Selection
Enhance the visibility of temperature processes by utilizing the Rosemount 3144P temperature transmitter
Enhance security
■ Compliant with regulatory requirements
Fully utilize limited resources
■ Achieve production and quality goals
By utilizing Rosemount X-well technology, advanced diagnostic capabilities, and outstanding transmitter reliability and accuracy
Minimize the number of products that do not meet specifications to the greatest extent possible
Reduce maintenance and downtime
■ Improve the utilization rate of limited resources
■ Meet regulatory requirements
Features and advantages
Complete Point Solution ™ Accurately measure the process temperature in monitoring applications without the need for thermal sleeves or processes
perforated
Simplify the specifications, installation, and maintenance of temperature measurement points, and eliminate potential leakage points.
Calculate reproducible and accurate process temperature measurement results through the built-in heat conduction algorithm of the transmitter.
Measuring the surface and ambient temperature of pipelines utilizes the thermal conductivity properties of devices and process pipelines to provide accurate process measurement results.
Obtain information at any time using asset tag numbers
The newly shipped equipment contains a unique QR code asset identifier, which allows you to directly access serialized information from the device. Through this feature, you can:
Access equipment drawings, diagrams, technical documents, and troubleshooting information on your MyEmerson account.
Shorten the average repair time and improve maintenance efficiency.
Ensure that you have located the correct device.
Eliminate the time-consuming task of locating and copying nameplates before viewing asset information.
Excellent on-site reliability and innovative process measurement solutions
■ Ultra high precision and stability
Supports universal sensor inputs (thermistor, thermocouple, mV, ohms), and can support single or dual sensors
Assembly of equipment
■ Wide range of sensors and process diagnostic products
Compliant with SIL3: Recognized third-party organizations are required to meet SIL 3 requirements (SIL 2 single use [oo1] and SIL 3 redundant)
The minimum requirements for the use of [oo2] in the instrument safety system have been certified according to IEC 61508
■ Dual chamber casing
■ Large LCD display screen
■ 4–20 mA HART ®, Optional versions (5 and 7)
■ FOUNDATION ™ Fieldbus, compliant with ITK 6.0 and NE107 standards
Improve efficiency with first-class product technical specifications and features
Leading in accuracy and stability in the industry, it can reduce maintenance work and improve performance.
By matching the transmitter sensor, the measurement accuracy can be improved by 75%.
Utilize system alerts and user-friendly instrument panels to ensure good process conditions.
Easily check device status and values on a local LCD display with a large percentage range chart.
Obtain high reliability and easy installation through the industry's most robust dual chamber design.
Optimize measurement reliability through diagnostic functions designed for any protocol on any host system
The thermocouple degradation diagnosis function monitors the working conditions of the thermocouple circuit and achieves preventive maintenance.
The minimum and maximum temperature tracking function tracks and records the temperature limits of process sensors and the surrounding environment
Value.
The sensor drift alarm function detects sensor drift and sends alerts to users.
■ Hot Backup ™ The (hot backup) function can provide temperature measurement redundancy capability.
Experience global consistency and local support provided by numerous Emerson manufacturing centers worldwide
With global manufacturing, we provide globally consistent products from various factories and meet any regulations
Ability to meet the engineering requirements of the model.
Experienced instrument consultants can help you choose the right product for any temperature application,
And provide recommendations for the best installation practices.
The extensive global network of Emerson service and support personnel can be available at any time and any place
Provide on-site service.
Using Emerson's intelligent wireless gateway, wireless installation and configuration can be easily completed.
Are you looking for a wireless temperature solution? For wireless applications that require high performance and excellent reliability, consider the Rosemount 648 wireless temperature transmitter.
Ordering information:
The excellent Rosemount 3144P temperature transmitter in the industry provides outstanding on-site reliability and innovation
Process measurement plan and diagnostic capability.
The characteristics of the transmitter include:
■ Temperature measurement component using Rosemount X-well technology (option code PT)
Dual sensor and single sensor input capability
■ Transmitter Sensor Matching (Option Code C2)
Integrated lightning protection terminal (option code T1)
■ Passed IEC 61508 safety certification (option code QT)
Advanced sensor and process diagnostic functions (option codes D01 and DA1)
■ Easy to read large LCD display screen (option code M5)
■ "Assemble to Sensor" option (option code XA)
Online product configuration tool
Many products can be configured online using our product configuration tool. Use the Configure button or visit our website to get started. By using the built-in logic and continuous validation of this tool, you can configure your product faster and more accurately.
Model group
The model group contains detailed information related to each product. The specific model code varies depending on the product. A typical model code example is shown in Figure 1.
Figure 1: Model Code Example
1. Required model components (most applicable choices)
2. Other options (which may add various features and functions to the product)
Technical specifications and ordering
Equipment procurement personnel must determine the specifications and selection of product materials, options, or components.
Optimize delivery time
The products with asterisks (★) represent the most common options, and selecting the products with asterisks will result in the fastest delivery. Products without asterisks usually have longer delivery cycles.
How to order Rosemount X-well technology
Rosemount X-well ™ The technology is suitable for temperature monitoring applications and is not suitable for control or safety applications. It can be used with Rosemount 0085 tube clamp sensor and adopts
Factory assembled Rosemount 3144P temperature transmitter with direct installation configuration. Cannot be used for split installation configuration. Rosemount X-well technology is only used by factories
The silver plated end unit sensor of Rosemount 0085 sensor with a length of 3.15-in. (80 mm) must be provided and assembled before it can work according to regulations. If it
He shares the sensor, so it will not be able to work according to regulations.
The Rosemount X-well component can be used for most Rosemount 0085 tube clamp sensor diameter sizes.
Typical component model:
3144P D 1A 1 NA M5 PT C1 HR7 XA
0085 N 3 P1 J 0080 U 0169 N XA
Product Certification
Version 2.21
Regarding the inclusion of HART ® Rosemount 3144P temperature transmitter certified by protocol product, please refer to the document using HART protocol and Rosemount X-well technology
Rosemount 3144P temperature transmitter.
European Directive Information
A copy of the EU declaration of conformity can be found at the end of the Rosemount 3144P temperature transmitter Quick Installation Guide. The latest version of the EU Declaration of Conformity can be found at
Obtained on Emerson.com.
Ordinary venue certification
According to the standard, the transmitter has been inspected and tested by a nationally recognized testing laboratory (NRTL) authorized by the Federal Occupational Safety and Health Administration (OSHA) in the United States, proving that
Its design meets basic electrical, mechanical, and fire protection requirements.
dimension

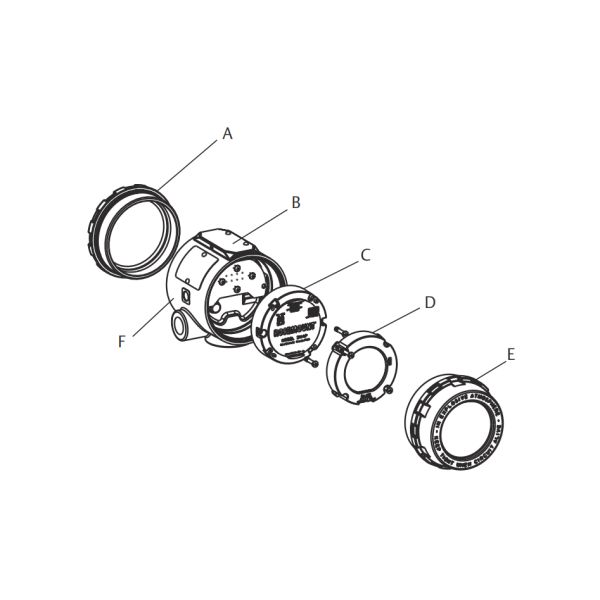

Figure 2: Decomposition diagram of transmitter
A. Cover with wiring diagram
B. Nameplate
C. Electronic module
D. LCD display screen
E. Display screen cover
F. Shell with permanent terminal block

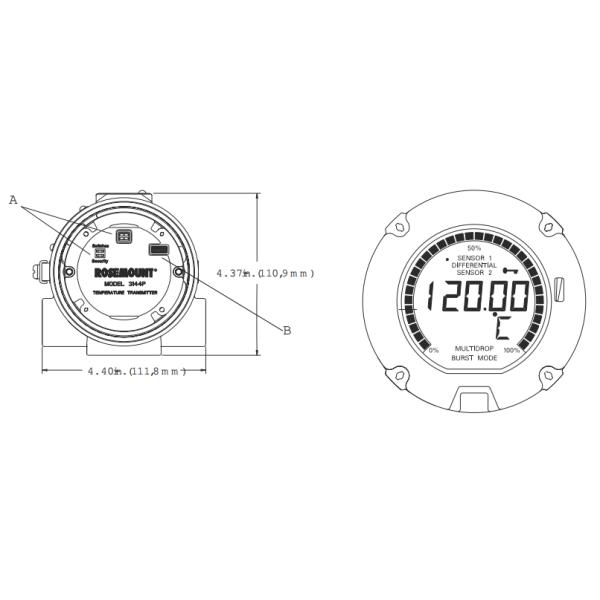

Figure 3: Switch position and LCD display panel
A. Switch (1)
B. LCD display screen connector
pour
The unit of measurement is inches (millimeters).

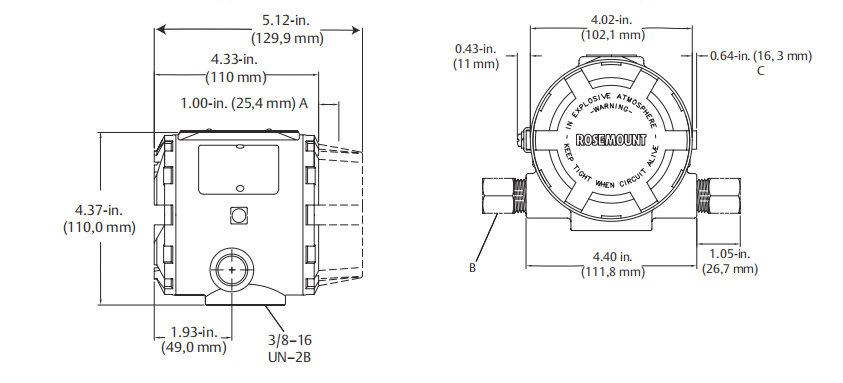

Figure 4: Transmitter View
A. Entrance of conduit
B. Display screen cover
C. Nameplate
pour
The unit of measurement is inches (millimeters).
Figure 5: Transmitter suitable for conduit with M20 3 1.5, PG 13.5 inlet
A. Gap required for disassembling the lid
B. M20 x 1.5, PG 13.5 connector
C. Explosion proof/explosion-proof clip (depending on option code)
pour
The unit of measurement is inches (millimeters).
Figure 6: Pipeline installation configuration using optional mounting brackets
A. For transmitter installation
B. 2-inch U-bolt for pipeline installation
pour
The unit of measurement is inches (millimeters).

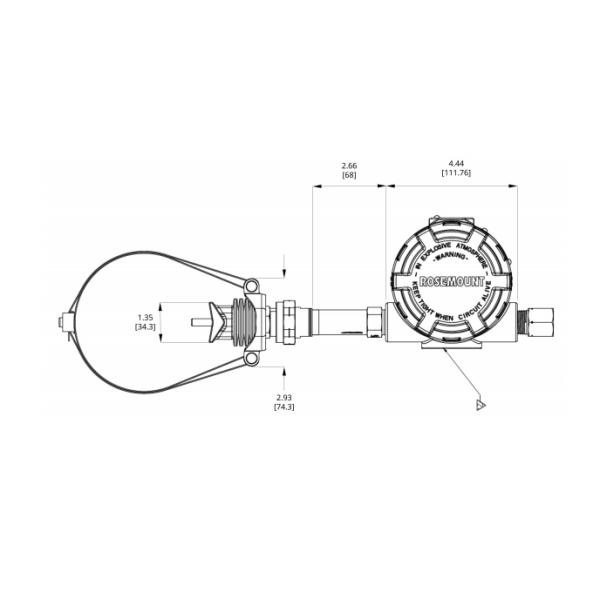

Figure 7: Rosemount X-well assembly with universal pipe rack
