AJIEWATER 20T/D 500LPD Seawater Desalination Equipment
AJIEWATER 20T/D 500LPD Seawater Desalination Equipment
Specifications
Brand Name :
AJIEWATER
Model Number :
AJIE-1.5T
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
Paypal, L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 units per month
Delivery Time :
30 days
Packaging Details :
Wooden or carton
Capacity :
500LPD
After-sales service provided :
Field installation
Material :
FRP
Power :
2KW
Weight :
200KG
Type :
RO Membrane 4040
Application :
water water purification machines
Warranty :
1 Year
Description

10T / 20T Per Day Seawater Desalination Equipment Salt Water To Drinking Water

Detailed Product Description

Item:

 10T/20T Per Day Seawater Desalination Equipment Salt Water To Drinking Water

Raw Water:

 Seawater / Salt Water

Price:

 Negotiate

Usage:

 Filling Machine , Food, Drink Water And So On

Output:

 30L-50,000T Per Day

Material:

 Fiber Reinforced Polymer

Raw Water:

 Underground , Tap Water , River Water And So On.

Certificate:

 CE, SGS

10T/20T Per Day Seawater Desalination Equipment Salt Water To Drinking Water

Reverse Osmosis System use for Seawater Desalination

Reverse osmosis desalination equipment is a device that desalinates seawater using the principle of reverse osmosis technology.Composition of reverse osmosis Marine water generator: water intake system, pretreatment system, desalination and desalination system, energy recovery system, chemical cleaning system, chemical dosing system, power supply, power distribution and automatic control system.The whole equipment consists of pretreatment system, reverse osmosis system, electrical control system, cleaning system and dosing system.

Reverse osmosis desalination equipment is a device that desalinates seawater using the principle of reverse osmosis technology.


Composition of reverse osmosis Marine water generator: water intake system, pretreatment system, desalination and desalination system, energy recovery system, chemical cleaning system, chemical dosing system, power supply, power distribution and automatic control system.The whole equipment consists of pretreatment system, reverse osmosis system, electrical control system, cleaning system and dosing system
The pretreatment system includes water supply pump, multi-media filter, precision filter and security filter, which mainly deals with large impurities, residual chlorine and fine particles contained in the raw water to ensure the water quality of the reverse osmosis system.


The reverse osmosis system includes high pressure pump, RO reverse osmosis membrane assembly, pressure regulating valve and cleaning box, which mainly further processes the pre-treated raw water into fresh water.


The basic process flow of reverse osmosis Marine water-making equipment is as follows: seawater is pumped into the pretreatment system by the water supply pump, and then filtered into quartz sand and activated carbon filtration system after adding fungicide and flocculant in the chemical dosing system.Seawater enters the high-pressure pump after the pretreatment system. Under the action of the high-pressure pump, it flows through the coil membrane with high desalination rate. By controlling the pressure regulating valve to increase the pressure, some pure water in seawater enters the porous collection pipe through the membrane and flows out of the equipment through the hose.The filtered water enters the 5um security filtration system after water quality reduction, PH adjustment and scale inhibitor addition. The filtered low- pressure seawater enters the high-pressure pump for pressurization one way and the pressure exchange energy recovery device the other way.Under the treatment of the membrane reactor, the high-pressure seawater passes through the membrane to form fresh water and enters the fresh water tank for storage after water quality adjustment.The remaining high pressure concentrated water goes into the pressure exchange energy recovery device to recover the energy and discharge.


RO System configuration list

NO.

Device Description

Origin/brand

Quantity

1

Raw water pump(CHL2-40 SS304 )

CNP

1 Set

A. Flow: 2.0m3/H Head: 29m K = 0.55kw

B. Including: inlet valve, return valve, pipe fittings and so on

2

Sand filter CK-1465/Ф350X1650MM

CHUNKE

1 Set

A. FRP tank

CHUNKE

B. Manual Valve F56F

Runixn

1 Set

C. Top&bottom water distributor and center pipe

1 Set

3

Carbon filter CK-1465/Ф350X1650MM

CHUNKE

1 Set

A. FRP tank

CHUNKE

B. Manual Valve F56F

Runixn

1 Set

C. Top&bottom water distributor and center pipe

1 Set

4

5μm Cartridge filter

CHUNKE

1 Set

A. Model:Ф195X500X5core material:ABS

CHUNKE

1 Set

B. 20″×5μm PP filters

China

5pcs

5

High pressure pump CDL2S-15

CNP

1 Set

A. Flow:2.0m3/h Head:112m

B. Material:SS304 K=1.5KW

6

Reverse osmosis water production: 1m3/h, desalination rate:96～99%, System water utilization: ≥ 60%

1 Set

A. Membrane housing 4040-1core SS304

CHUNKE

4pcs

B. Membrane element 4040

Vontron

4pcs

C. 304 Stainless steel frame

1 Set

D. Water inlet solenoid valve

1PC

E. Strong water solenoid valve

1 Set

F. High pressure water inlet control valve

1PC

G. Concentrated water flow control valve

1 Set

7

Pipe fittings, valves U-PVC

China

1 Set

8

Electronic control system

CHUNKE

1 Set

Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller.

9

Filter Media

China

1 Set

A. Quartz sand

China

150KG

B. Activated carbon

China

50KG

10

Pressure gauges

China

1 Set

A. Reverse osmosis pressure gauge 0～25kgf/ cm2

China

2pcs

B. High pressure pump low pressure protection switch

China

1PC

C. System pressure gauge 0～6kgf/ cm2

China

2pcs

D. Pure water conductivity meter

China

1 Set

E. PC Program controller

China

1 Set

11

Flowmeter Panel type(10GPM)

China

A. One stage Pure water flowmeter(Panel type 10GPM)

China

1 Set

B. One stage Strong water flowmeter(Panel type 10GPM)

China

1 Set

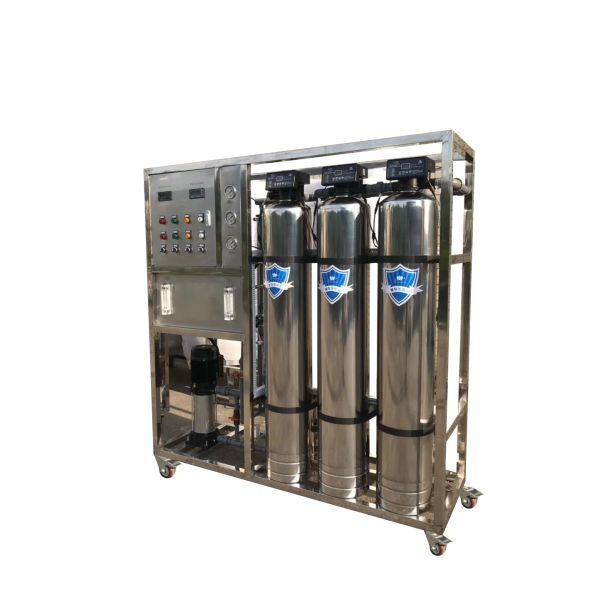

RO System Pictures

AJIEWATER 20T/D 500LPD Seawater Desalination Equipment
