SUS304 PLC Automatic Pure Water Treatment System
SUS304 PLC Automatic Pure Water Treatment System
Specifications
Brand Name :
AJIEWATER
Model Number :
AJ-BW
Certification :
CE,ISO
Place of Origin :
Guangzhou,China
MOQ :
1 unit
Price :
Discussible
Payment Terms :
Cash,PayPal, T/T, L/C, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-30 working days
Packaging Details :
Standard package
Material :
SUS304
Warranty :
1 Year
Application :
water treatment
Type :
Pure Water Treatment System
Capacity :
100g/hr active chlorine production
Voltage :
200V/50Hz
Product name :
Water Treatment System Processing Reverse Osmosis Plant
Control :
PLC automatic
Description

Mineral Water Production RO Water Plant With Ozone And Ultraviolet Sterilizer

Detailed Product Description

Product Name::

Mineral Water Production RO Water Plant With Ozone And Ultraviolet Sterilizer

Application:

Drinking / Food / Hospital / Irrigation

Flow:

0.5T-100T

Pretreat Ment:

Carbon Filter , Sand Filter,water Soften

Payment Terms:

EXW, FOB, CFR

Dosing Pump:

ajiewater

MOQ:

1 Unit

Production Time:

20-30 Working Days

High Light:

sea water purification machine, salt water purification system

Mineral Water Production RO Water Plant With Ozone And Ultraviolet Sterilizer

Technical principle: The electronic industry reverse osmosis pure water machine can separate, purify and concentrate the solution of the raw water, so that the water quality meets the technical requirements.Hongsen reverse osmosis pure water machine simple operation, stable operation, high degree of automation.Low energy consumption, good water quality.Reverse osmosis is the separation of water from a solution through a specially made semi-permeable membrane by applying a pressure greater than the osmotic pressure on the solution.Because this process is the opposite of osmosis, it is called reverse osmosis. Reverse osmosis is the separation of water from a solution through a special semi-permeable membrane by applying a pressure greater than the osmotic pressure on the solution.According to the different osmotic pressure of various materials, the reverse osmosis method greater than osmotic pressure can be used for a certain solution to achieve the purpose of separation, extraction, purification and concentration of the solution.Reverse osmosis devices, which are used to separate the range of ions in a solution, require no heating and have no phase transition, so they use less energy than conventional methods.The reverse osmosis device is small in size, simple in operation and wide in application.With the reverse osmosis device, the treatment of industrial water, does not consume a lot of acid and alkali, no secondary pollution, its operating costs are also relatively low. Operation parameters:Inlet temperature: 15-45 degrees CelsiusAmbient temperature: 5-45 ℃Maximum recovery rate: 75%Control mode: PLC/PLC+/ touch screen /DCSPower supply: 380 v / 50 hz

Model Number

Capacity(L/H)

Power(KW)

Ro membrane

Size L*W*H(mm)

RO-250

250

2.0

4040

1600*620*1700

RO-500

500

2.0

4040

1600*620*1700

RO-750

750

2.5

4040

1800*620*1800

RO-1000

1000

2.5

4040

1800*620*1800

RO-1500

1500

2.5

4040

1800*620*1800

RO-2000

2000

3.5

4040

2450*800*1850

RO-3000

3000

4.5

4040

2450*800*1850

RO-4000

4000

6.5

8040

2950*900*1850

RO-5000

5000

8.0

8040

2950*900*1850

RO-6000

6000

8.0

8040

4150*900*2150

RO-8000

8000

12.0

8040

4850*1500*2850

RO-10T

10000

18.0

8040

4850*1500*2850

RO-15T

15000

18.0

8040

7500*1800*2850

RO-20T

20000

28.0

8040

9000*2000*3000

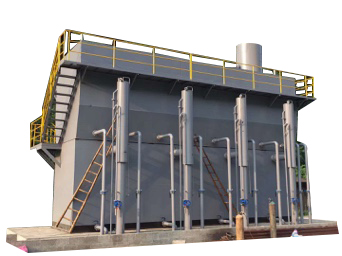

RO system Detail picture:

SUS304 PLC Automatic Pure Water Treatment System
