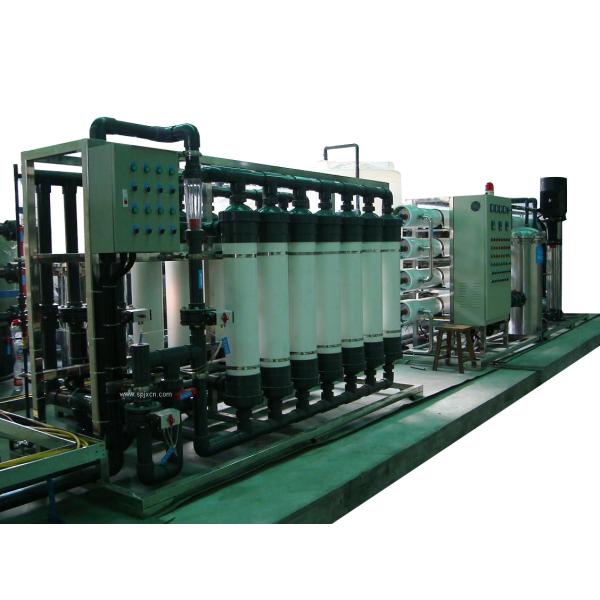

UF Mineral Water Treatment Plant/Equipment/Machine Ultrafiltration Membrane System

Mineral Water Treatment System / Ultrafiltration Water Treatment Equipment

1. System description
The Industrial water UF filter machine can be used in pretreatment and post treament, It has automatic function to collect water and back wash, so it wil reudce the frenquency of RO system cleaning and disinfection, it's more stable compared with multimedia filter, in the pretreatment, it can absorb and remove the suspended particles, organic colloid, in the water, and it helps to reduce the TOC in the water.

2. Features:
1) Barrier filtration, normal pore size of 0.01 μm,
2) Removal of suspended solids (turbidity) or micro-organisms.
3) Removal of organics up to 99%
4) Fully automated operation - PLC control
5) No need for chemicals (coagulants, flocculates, disinfectants, pH adjustment)
6) Pretreatment application for brackish and seawater desalination

3. UF machine System flow:
Raw water→Raw water pump→Multi-medium filter→Activated carbon filter→Security filter→UF device→ Water point

4. Details Configuration for 10000L/H Mineral water treatment:
Model: UF-1000I(10000L/H)
Capacity: 10000L/H at 25Deg C
General Power: 1.1kw 380V 50Hz
Ultrafiltration Membrane: 8040 5PCS
Pretreatment Part: Dia750*1500 2set with sand filter 800kg and GAC filter 300kg
Feed pump: China Top CNP CHL8-30
PP sendiment Filter: 5u *500mm 8PCS
Post UV sterilizer: UV-160W

5. UF machine Application:
1)Drinking water
2)Clarifying and eliminating bacterial for mineral water
3)Water treatment for medicine
4)Separation and refinement of enzyme
5)Concentration and refinement of biologic products
6)Concentration and separation of fruit juice
7)Concentration and refinement of milking
8)Pre-treatment of large water treatment equipment
9)Terminal treatment of ultra-pure water for electronic industry
10)Pouring in water treatment for extremely low permeable wells in oil field
11)Treatment of industrial waste water and reclamation of usable water.
