Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera
Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera
Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera
Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera
Specifications
Brand Name :
Trio-Vision
Model Number :
TVS-2000E
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
20units per month
Delivery Time :
4-8 weeks
Packaging Details :
CARTON
Drum :
Manual, lightweight
Control :
Joystick and compuuter
Transmission :
Wifi
Cable length :
120m
Description

Wireless Main Pipe Sewage Pipe Inspection Crawler System Inspectin Robot

Wireless Main Pipe Sewage Pipe Inspection Crawler System Inspectin Robot is composed of

a joystick box, manual cable drum, crawler and camera. The manual cable drum is lightweight, it is easy for transportation and operation. The most important improvement is we use a Windows laptop not a traditional controller to control. It is equipped with a joystick, you can control both on laptop and joystick. The customer can use any type of Windows laptop as a controller

It is mainly used for pipe, sewer, drain inspectrion. The device is equipped with powerful lights and portable power supply. The longest cable can be 300 meters according to the requirements of customers. It is a waterproofed product that can be immersed into water up to 10 meters.

Features:

1. 360 ° rotate of camera

2. Windows laptop

3. Anti-fogged camera lens

4. Laptop and joystick control

5. Brightless adjustable

6. Light and easy transportation

System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Manual cable drum Automatic cable drum
Windows Laptop PA500 portable movable power
Joysitck

Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera

Technical Parameter

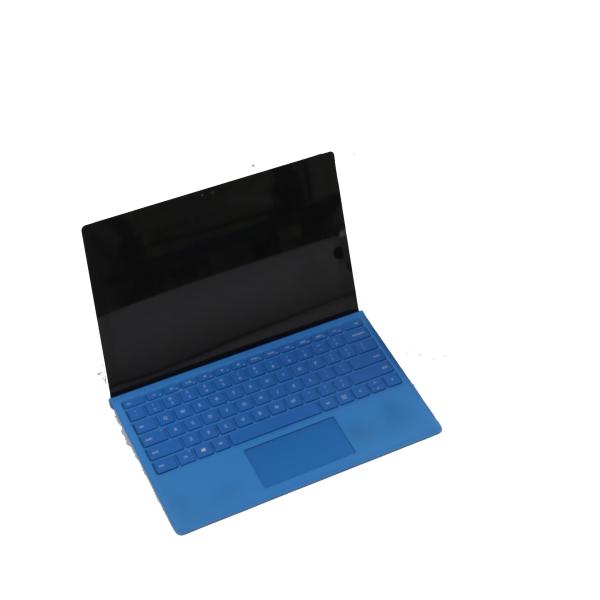

Controller Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
Cralwer TVS-800 Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera 1,Manual cable drum
2,standard length: 120m

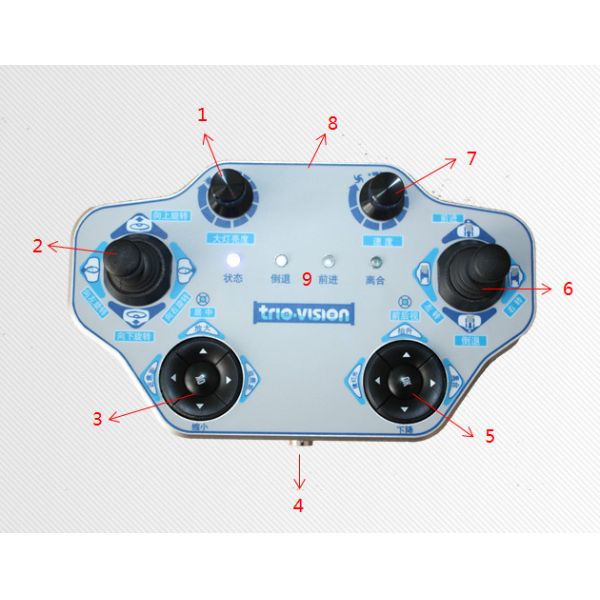

Joystick Waterproofed Pipeline Inspection System , Wireless Robotic Pipe Inspection Camera

(1)high beam brightness adjustment

(2)camera control, left/right/up/down

(3)camera zoom in/out/focus near/far/center

(4)power switch

(5)elevator up/down/clutch/rear sight/camera light adjustment

(6)crawler direction control, forward/backward/left/right

(7)crawler speed control

(8)USB

(9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected
