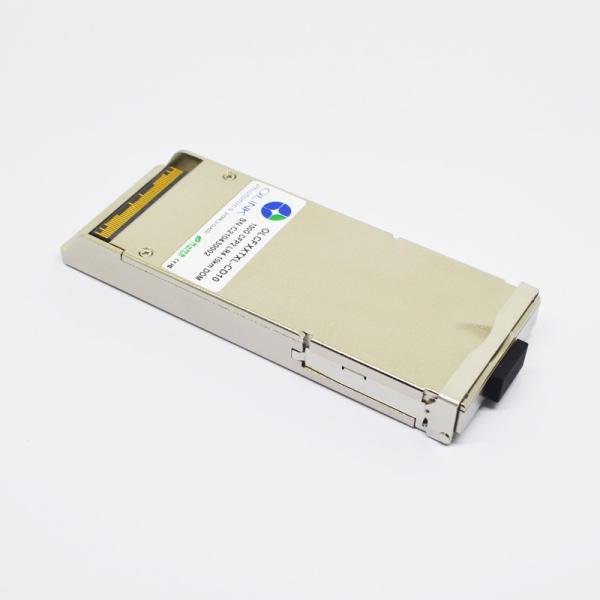

1310nm 10km DOM LC SMF Cfp2 Transceiver CFP2-100G-LR4 Compatible
1310nm 10km DOM LC SMF Cfp2 Transceiver CFP2-100G-LR4 Compatible
Specifications
Brand Name :
OLKOPTO
Model Number :
OLCFXXTXL-CD10
Certification :
RoHs, FCC, CE, UL etc
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T or Net 30 days
Supply Ability :
10K per month
Delivery Time :
3-5 working days
Packaging Details :
Individual package
Data Rate :
103.1 Gbps
Form Factor :
CFP2
Wavelength :
1310nm
Distance :
10km
Connector :
Duplex LC
Source :
DML+PIN
Optical Power :
-4.3~4.5
Sensitivity :
<-10.6 dBm
Operating Temperature :
0~70℃
Fiber Type :
SMF
DOM :
Supported
Application :
●Local Area Network(LAN) ●Wide Area Network(WAN) ●Switch to router interface ●ITU-T OTU4 OTL4.4
Description

1310nm 10km DOM LC SMF Cfp2 Transceiver CFP2-100G-LR4 Compatible

Cisco CFP2-100G-LR4-C Compatible 100GBASE-LR4 1310nm 10km DOM LC SMF Transceiver Module

Product Features

●Supports up to 112Gbps bit rates

●Duplex LC connector

●Hot pluggable

●Operating electrical serial data rate up to 27.952493Gbps

●4 parallel electrical serial interface

●Applicable for 10km SMF connection

●Low power consumption, < 6W

●Digital Diagnostic Monitor Interfacel

●MDIO Communication Interface

●Compliant with 100GBASE-LR4 and OTU4

●Operating case temperature:

Commerical:0 to 70 °C

Functional Description

Olinkcom’ OLCFXXTXL-CD10, 100G CFP2 LR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
