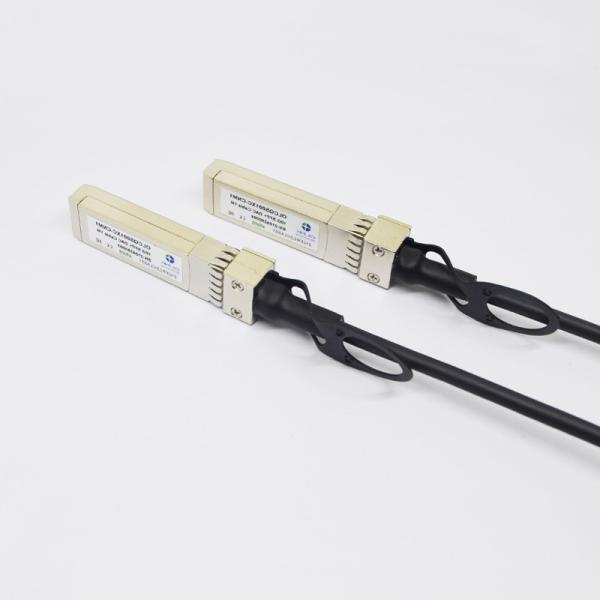

Juniper Compatible 10G SFP+ DAC Twinax Cable 3M With 20 Pins Edge Connector
Juniper Compatible 10G SFP+ DAC Twinax Cable 3M With 20 Pins Edge Connector
Specifications
Brand Name :
OLKOPTO
Model Number :
OLSP01XC-CN3
Certification :
RoHs, FCC, CE, UL, ISO9001, ISO14001
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T or Net 30 days
Supply Ability :
80-100K per month
Delivery Time :
3-5 working days
Packaging Details :
Individual package
Juniper Part Number :
QFX-SFP-DAC-3M
Vendor Name :
Olinkcom
AWG :
30AWG
Cable Length :
3M
Jacket Material :
PVC
Temperature :
0~70℃
Description

Juniper Compatible 10G SFP+ DAC Twinax Cable 3M 20 Pins Edge Connector

Juniper QFX-SFP-DAC-3M Compatible 10G SFP+ DAC Twinax Cable 3M

General Description

SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 3M).

General Product Characteristics

SFP+ DAC Specifications

Number of Lanes

Tx & Rx

Channel Data Rate

10.3125 Gbps

Operating Temperature

0 to + 70°C

Storage Temperature

-40 to + 85°C

Supply Voltage

3.3 V nominal

Electrical Interface

20 pins edge connector

Management Interface

Serial, I2C

Pin Function Definition

Pin

Logic

Symbol

Description

1

VeeT

Module Transmitter Ground

2

LVTTL-O

Tx_Fault

Module Transmitter Fault

3

LVTTL-I

Tx_Disable

Transmitter disable; Turns off transmitter laser output

4

LVTTL-I/O

SDA

2-wire Serial Interface Data Line (Same as MOD-DEF2 in INF-8074i)

5

LVTTL-I/O

SCL

2-wire Serial Interface Clock (Same as MOD-DEF1 in INF-8074i)

6

Mod_ABS

Module Absent, connected to VeeT or VeeR in the module

7

LVTTL-I

RS0

Rate Select 0, optionally controls SFP+ module receiver

8

LVTTL-O

Rx_LOS

Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as Signal Detect)

9

LVTTL-I

RS1

Rate Select 1, optionally controls SFP+ module transmitter

10

VeeR

Module Receiver Ground

11

VeeR

Module Receiver Ground

12

CML-O

RD-

Receiver Inverted Data Output

13

CML-O

RD+

Receiver Non-Inverted Data Output

14

VeeR

Module Receiver Ground

Mechanical Specifications

The connector is compatible with the SFF-8432 specification.

Juniper Compatible 10G SFP+ DAC Twinax Cable 3M With 20 Pins Edge Connector

Ordering Information

Part Number

Description

OLSP01XC-CN3

SFP+, up to 10 Gb/s,Copper Cable, 0~70℃, 3M

OLSP01XC-IN3

SFP+, up to 10Gb/s,Copper Cable, -40~85℃, 3M
