100G Ethernet Isolated Sfp Jack QSFP28 Connector Mates 1 X 4 Multiple Ports
100G Ethernet Isolated Sfp Jack QSFP28 Connector Mates 1 X 4 Multiple Ports
100G Ethernet Isolated Sfp Jack QSFP28 Connector Mates 1 X 4 Multiple Ports
100G Ethernet Isolated Sfp Jack QSFP28 Connector Mates 1 X 4 Multiple Ports
Specifications
Brand Name :
GLGNET
Model Number :
49007-00N011 - 7
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Integrated Connector :
No, available if need
Heat Sink :
Yes
Light Pipe :
Yes
EMI Tabs :
Yes
Application :
QSFP28 Optical Transceiver
Mount Type :
Press Fit
Description

100G Ethernet Isolated QSFP28 Cage Mates 1 x 4 Multiple Ports EMI Finger Spring

1. GLGNET QSFP28 Cage ( 49007-00N011 ) Mechnical Drawing

2. GLGNET QSFP28 Cage ( 49007-00N011​ ) Structure:

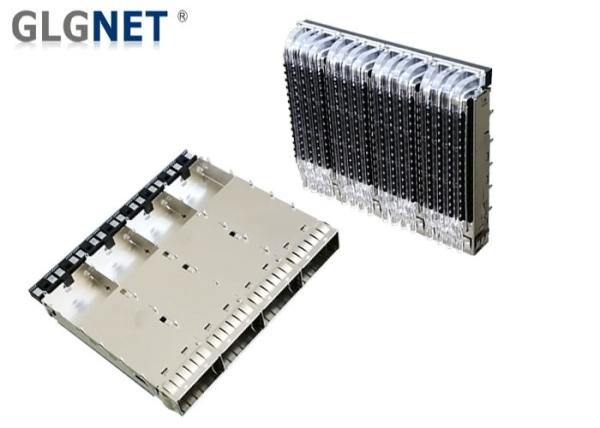

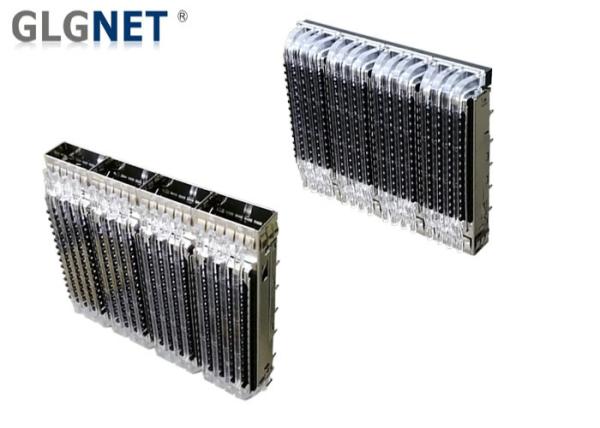

Product Description QSFP28 Cage with Heat Sink Ligth Pipe and EMI Tabs mates with QSFP28 Connector Transceiver
QSFP28 Cage Length 67.9 mm
QSFP28 Cage Width 76.46 mm
QSFP28 Cage Height 15.15 mm (include Heat Sink )
QSFP28 Cage Press Fit PIN Length 2.05 mm
QSFP28 Cage Single Port Width 18.75 mm
QSFP28 Cage Single Port Height 8.95 mm
Appearance one piece Stampled and Formed Metal Cage, with heat dissipation holes, additional heat sink, EMI Tabs and Light Pipes
Light Pipes Yes, let know the Connection Status
Heat Sink Yes, provide better heat dissipation
Monut Type Press Fit Mount Type
EMI Gasket Without
EMI Tab Spring With, provide better EMI protection


3. GLGNET QSFP28 Cage ( 49007-00N011​ ) Materials

Appearance one-piece Stampled and Formed Metal Cage, with heat dissipation holes, additional heat sink, EMI Tabs and Light Pipes
Cage 0.25 mm thickness copper alloy
EMI Tabs Copper Alloy
Heat Sink Aluminum , with black Oxide Treatment On Surface
Light Pipe Polycarbonate Color Clear
CLIP Stainless steel

4. GLGNET SFP Cage Products

By Protocol SFP Series SFP Cages
SFP Plus Cages
SFP28 Series SFP28 Cages
QSFP Series QSFP Plus Cages
QSFP14 Cage
QSFP28 Cages
Female Connectors SFP Female Connectors
SFP Plus Female Connectors
QSFP14 Female Connectors
By Structure SFP Series

1 x 2, 1 x 4, 1 x 6;

2 x 1, 2 x 2, 2 x 4, 2 x 5, 2 x 6, 2 x 8
SFP Plus Series

1 x 2, 1 x 4, 1 x 6;

2 x 1, 2 x 2, 2 x 4, 2 x 6, 2 x 8
SFP28 Series 1 x 1, 1 x 4
QSFP Plus Series 1 x 1
QSFP14 Series 1 x 2
QSFP28 Series 1 x 1
SFP Female Connectors 20pin
SFP Plus Female Connectors 20pin
QSFP14 Female Connectors 38pin

Custom Service is Available,

The SFP Cage can be with EMI Tabs, EMI Gasket, Heat Sink, and Light pipes as required;

5. GLGNET Customization Service

  • Support to make Integrated QSFP28 Connector with EMI Cages, isolated QSFP28 Connector, or Isolated QSFP28 Cages
  • The QSFP28 Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
  • QSFP28 Cage can be with different heat dissipation Hole
  • QSFP28 Cage can be with Light pipes or without, Built in or on Cage top or buttom
  • QSFP28 Cage can be with Heat Sink or without, and the Heat sink with different Style
  • QSFP28 Cage can be with EMI Finger Spring or elastomeric Gasket
  • Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

You can know the Demensions Details from Following Drawing

100G Ethernet Isolated Sfp Jack QSFP28 Connector Mates 1 X 4 Multiple Ports

6. GLGNET QSFP28 Cage ( 49007-00N011 ) Applications:

By Structure

QSFP28 Female Connector

QSFP28 Transceiver ( with Fiber Cable )

By Function

Servers

Storages

Switches

Routers

By Protocol

Telecommunications

Data/Communications

Networking

Fibre Channel and Gigabit Ethernet

This is not a definitive list of applications for this product. It represents some of the more common uses.

7. Application Example:

QSFP28 Cage + QSFP28 Connector + QSFP28 Transceiver for 40G to 100G Ethernet;

100G Ethernet Isolated Sfp Jack QSFP28 Connector Mates 1 X 4 Multiple Ports

8. GLGNET Advantages:

  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops
  • Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
  • 20 years experiences in Variety Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • 20kk ports / month Capacity
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification​
