10G Multiple Port 1x6 SFP+ Cage Connector with HS and LP Press Fit Mounting

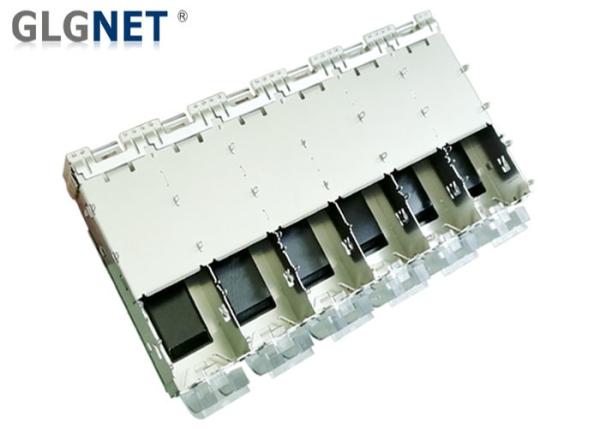

1. 47047-00N011 1x6 SFP+ Shield Cage with HS Heat Sink and LP Light pipe Overview

GLGNET P/N 47047-00N011
Description 1x6 SFP+ Cage Assembly with Heat Sink and Light Pipe
Port Configuration Ganged 6 ports
EMI Spring Yes
Light Pipe Yes
Heat Sink Yes
Cage Body Depth (mm) 55.1
Cage Body Height (mm) 9.65
Cage Body Width (mm) 85.95
Pin Length (mm) 2.05 TYP
Height On PCB (mm) 16.00 max
Mounting Type Press Fit
Shield Material 0.25mm thickness coppy alloy
EMI Spring Material 0.1mm thickness coppy alloy
Clip Material 0.25mm Stainless steel
Heat sink Material Aluminum, Black OXIDE surface treatment
Light Pipe Material Polycarbonate color clear
Cage Surface Plating Nickel Plating
Recommended PCB Thickness 1.5MM MIN
Rated Current 0.5 A Max @ 30℃
Operating Temperature -40 to +85 ℃
Storage Temperature -40 to +85 ℃
RoHS Compliant Yes

2. 47047-00N011 1x6 SFP+ Shield Cage with HS Heat Sink and LP Light pipe Mechanical Requirement

ITEM Qualtified Result Test Condition
Durability No damaged. Speed:25mm / minute
Cycles:250 Cycles
Cage retention(Latch
strength of cage)		 110N Min. Speed:25mm / minute
Cage press-fit insertion force 1x1 CAGE: 500N Max.
1x2 CAGE: 600N Max.
1x4 CAGE: 1300N Max.
1x6 CAGE: 1330N Max.		 Speed:100mm / minute
Cage press-fit extraction
force		 1x1 CAGE: 60N Min.
1x2 CAGE: 60N Min.
1x4 CAGE: 80N Min.
1x6 CAGE: 100N Min.		 Speed:100mm / minute

3. 47047-00N011 1x6 SFP+ Shield Cage with HS Heat Sink and LP Light pipe Environmental Requirement

ITEM Qualtified Result Test Condition
Solder ability (Special applied for DIP Cage) Contact Soldering area: 95% Min. Temperature:245±5℃
Duration: 5±1sec
Resistance to Wave Soldering Heat (Special applied for DIP Cage) No damaged Temperature:260±5℃
Duration: 5±1sec.
Heat Test No damaged Temperature:115±5℃
Duration:250H
Salt Spray No damaged Duration:48H

4. GLGNET SFP+ Cage FEATURES AND BENEFITS

1. Available in single port, ganged and stacked configurations
2. Cages in multiple configurations,
offering either elastomeric gasket or EMI springs to address EMI containment at higher data rates.
3. Belly to belly mounting cages are also available allowing for design and
retrofitting flexibility
4. SFP+ connectors are designed to support up to 16 Gbps signal speeds and are backward compatible with SFP.
5. Available with heat sink and light pipe options for visual verification of operability and the ability to dissipate heat then allow for increased performance and longer
transceiver lifecycle
6. Pair with 20pin SMT Connector,Compatible with SFP+ Optical Transceiver, supports applications up to 16 Gb/s
7. Uses enhanced 20-position connector that is backward-compatible with SFP connectors

5. GLGNET SFP+ Cage Application

  • Storage, servers, routers, switches and hubs
  • Network Interface Cards (NICs)
  • Other telecommunications equipment

Applications by Protocol

  • 10 Gigabit Ethernet (IEEE802.3ae)
  • Fibre Channel: 2G, 4G, 8G and 16G
  • Fibre Channel over Ethernet (FCoE)

6. GLGNET Advantage

  • 20 years experiences in Variety Connectors
  • Effective Cost, fast Lead time,Professional Sales and FAE
  • 1500+ Employees,100+ R&D Engineers, 150+ QA engineers
  • 35000 square meters Factory
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, Delta, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • We have our Own Tooling center, design and produce metal tooling and plastic injection tooling by ourselves
  • We have our own Stamping workshop, plastic injection workshop, automatic assembly working etc.

7. 47047-00N011 1x6 SFP+ Shield Cage with HS Heat Sink and LP Light pipe Mechnical Drawing

10G Multiple Port 1x6 SFP+ Cage Connector with HS and LP Press Fit Mounting

8. Paired 20pin SFP+ Connector Mechnical Drawing (47030-00J191)

10G Multiple Port 1x6 SFP+ Cage Connector with HS and LP Press Fit Mounting
