DWDM Single Fiber 8 Channel Mux/Demux Module West side in 1U 19" chassis LC/UPC
GEZHI Photonics 100Ghz Simplex DWDM MUX/DEMUX module West Side
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fibers.

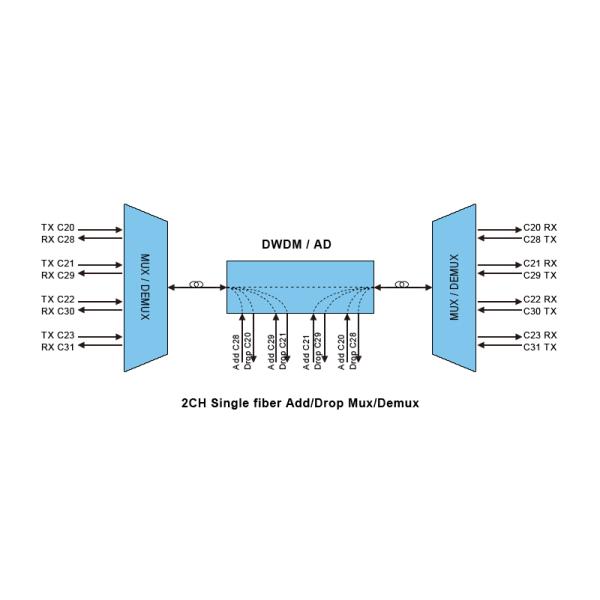

Below drawing is include one pieces 8CH DWDM Mux & 8CH DWDM Demux each. and 2piece two Channel DWDM OADM.
DWDM Single Fiber Mux / Demux Module West side in 1U 19

Describtion
Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase bandwidth over existing fiber networks. DWDM works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber. The technology creates multiple virtual fibers, thus multiplying the capacity of the physical medium.

Applications

  • Long-haul optical networks either in point-to-point or ring topology.
  • Expanding the capacity of an existing optical network.
  • Capacity leasing for network wholesalers.
Parameter 4 Channel 8 Channel 16 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) ITU 100GHz Grid
Center wavelength Accuracy (nm) ±0.1
Channel Spacing (nm) 100
Channel Passband (@-0.5dB bandwidth (nm) >0.25
Insertion Loss (dB) ≤1.8 ≤3.7 ≤5. 5
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/℃) <0.005
Wavelength Temperature Shifting (nm/℃) <0.002
Polarization Dependent Loss (dB) <0.1 <0.1 <0.15
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (℃) -5~+75
Storage Temperature (℃) -40~85
Package dimension (mm) L100 x W80 x H10 L142 x W102 x H14.5

Specifications may change without notice.

Above specification are for device without connector.

Ordering Information

DWDM X XX X XX X X XX
Channel Spacing Number of Channels Configuration 1st Channel Fiber Type Fiber Length In/Out Connector
1=100GHz

04=4 Channel

08=8 Channel

16=16 Channel

M=Mux

D=Demux

21=Ch21

……

34=Ch34

……

50=Ch50

……

1=Bare fiber

2=900um loose

tube

3=2mm Cable

4=3mm Cable

1=1m

2=2m

S=Specify

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify
