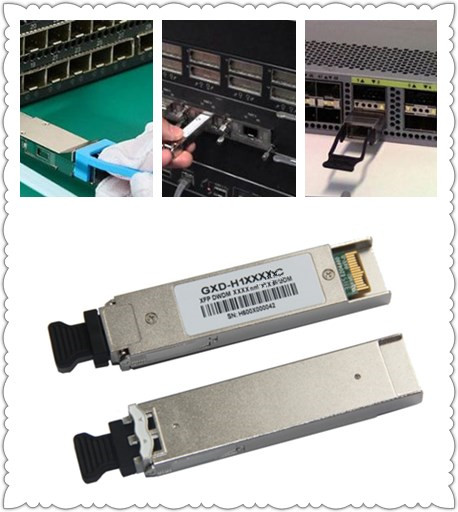

80KM 1550nm SM XFP 10g Optical Transceiver
80KM 1550nm SM XFP 10g Optical Transceiver
Specifications
Brand Name :
Gezhi
Model Number :
GX-H155-ZRC
Certification :
CE,RoHs,FCC
Place of Origin :
China
MOQ :
1 pieces
Price :
Get Latest Price
Payment Terms :
L/C, T/T
Supply Ability :
60000 Piece/Pieces per month for GX-H155-ZRC
Delivery Time :
1~4 work days
Packaging Details :
According to quantity ,we can offer 1 by one in box ,or 10pcs in plastic box or 20pcs.
Form Factor :
10Gbps XFP Optical Transceiver
Data-rate :
10GBASE-ER
Form-factor :
XFP Optical Transceiver
Connector :
LC
Wavelength :
1550nm
Distance :
40km
Description

80KM 1550nm SM XFP 10g Optical Transceiver

GX-H155-ZRC

10Gbps XFP Optical Transceiver, 80Km Reach

Features:

♦ XFP MSA Compliant

♦ Data rate from 9.95 Gbps to 11.1Gbps

♦ No Reference Clock required

♦ Cold Start up Wavelength Compliance

♦ EML transmitter and APD receiver

♦ Link length up to 80km

♦ Low Power Dissipation 3.5W Maximum

♦ -5ºC to 70ºC Operating Case Temperature

♦ Diagnostic Performance Monitoring of module temperature, supply

♦ Voltages, laser bias current, transmit optical power, receive optical power

♦ RoHS compliant and lead free

Application:

♦ SONET OC-192&SDH STM 64

♦ 10G Ethernet

♦ 80 km 10G Fiber Channel

Description:

Gezhi's XFP Transceiver is designed for 10G SDH, 10G ZR and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Ordering Information:

Part Number Product Description
GX-H155-ZRC 1550nm, XFP, 10Gbps, 80km, 0ºC ~ +70ºC

80KM 1550nm SM XFP 10g Optical Transceiver
