2:1 Optical Protection Switch
2:1 Optical Protection Switch
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-DSW
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1PC
Price :
US $1 - 100 / Piece | 1 Piece/Pieces (Min. Order)
Payment Terms :
T/T, Western Union
Supply Ability :
50000 pcs per monthe
Delivery Time :
5~8work days
Packaging Details :
paper box with foam
Item Name :
Optical Protection Switch
Connector :
FC/APC
Package :
Metal Box
Control Mode :
Button,RS232
Wavelength :
1260~1650nm
Features :
Unmatched Low Cost
Description

2:1 Optical Protection Switch

GEZHI 2:1 optical protection system provides two diverse routes for the same link. On detection of a failure, the unit automatically switches to the redundant route.

Features Applications
  • High Isolation
  • Low Optical Distortions
  • High Reliability
  • Unmatched Low Cost
  • Epoxy-Free Optical Path
  • Channel Blocking
  • Instrumentation
  • Configurable Add/Drop
  • System Monitoring

2:1 Optical Protection Switch Order Information

GZ-DSW-1x2-x-xx-x-x-xx

Mode Wavelength Control Model Fiber Type Connector

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

X=Others

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

FP=FC/PC

FA=FC/APC

X:Others

2:1 Optical Protection Switch Specification

Parameters GZ-DSW-1x2
Wavelength Range nm 532~1064nm 1260～1650
Operating Wavelength nm 532/650/780/850/980 nm 1310/1490/1550/1625 nm
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 5V / 500mA
Control Mode / Button, RS232
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Dimension mm (L)104.0×(W)120.0×(H)28

Note: Customization is available.

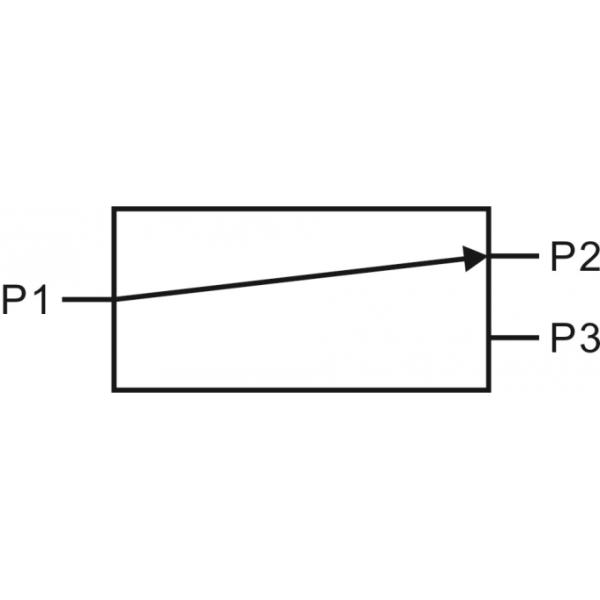

2:1 Optical Protection Switch​ Optical Route

Status One Status Two


2:1 Optical Protection Switch
2:1 Optical Protection Switch

2:1 Optical Protection Switch​ Panel diagram

2:1 Optical Protection Switch
