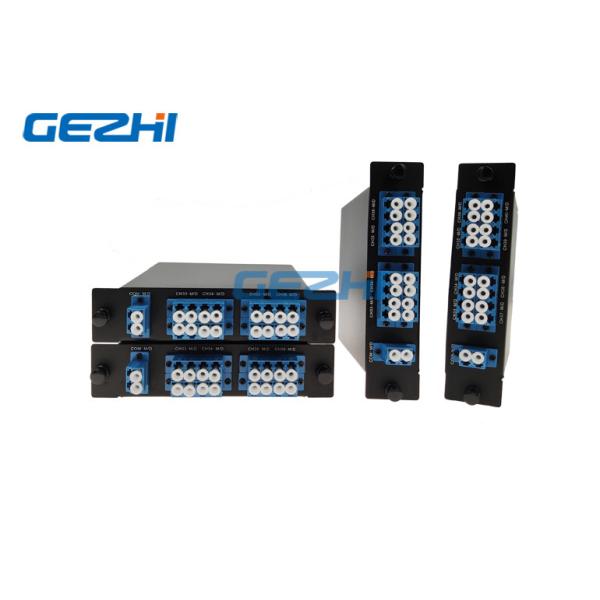

Single Fiber C21 to C36 Wave DWDM Mux Module
Single Fiber C21 to C36 Wave DWDM Mux Module
Specifications
Brand Name :
GEZHI
Model Number :
DWDM16CHMC21RULP
Certification :
CE/RoHS/ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
paper box with foam
Item :
DWDM
Type :
Mux or Demux
Wavelength :
C21 to C36
Package :
1U 19inch Rack
Adaptor :
LC/PC
Application :
Data Center
Description

Single Fiber C21 to C36 Wave DWDM Mux Module

GEZHI provides high quality DWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. Each Single Fiber C21 to C36 Wave DWDM Mux Module can transmit and receive up to 8 connections of different standards, data rates or protocols over one single fiber optic link without disturbing each other. Each Single Fiber C21 to C36 Wave DWDM Mux Module supports ESCON, ATM, Fibre Channel, and Gigabit Ethernet over each port.

Features Applications
  • ITU-T G.694.1
  • RoHS
  • Low Insertion Loss
  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • DWDM Network
  • Fiber Optical Amplifier
  • Wavelength Routing
  • CATV System
  • Channel Add/Drop

Single Fiber C21 to C36 Wave DWDM Mux Module Specification

Parameters Value
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.4 2.5 3.8 1.7 2.9 3.1
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (°C) -20~70
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19'' Rack mount Package 1U

Single Fiber C21 to C36 Wave DWDM Mux Module Ordering Information

Channel Spacing Configuration No. of Channels Fiber Type Fiber Length Connector Packing

1=100GHz

2=200GHz

M=Mux

D=Demux

MD=Mux+Demux

X= Customized

04=4Channel

08=8Channel

… …

16=16Channel

18=18Channel

X= Customized

0=250um

1=900um

2=2.0mm

3=3.0mm

X= Customized

0=0.5m

1=1m

2=1.5m

3=2m

X= Customized

0=None

FA=FC/APC

FP=FC/UPC

SA=SC/APC

SP=SC/UPC

LA=LC/APC

LP=LC/UPC

X= Customized

A=ABS Box

L=LGX Box

R1=1U19” Rack Mount

X= Customized
