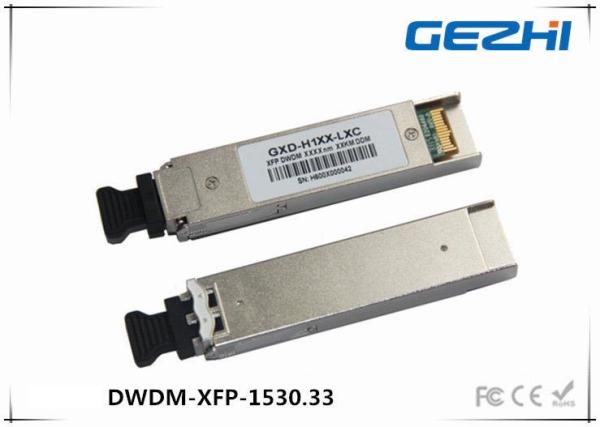

DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER
DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER
DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER
DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER
DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER
DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GXD-H1xx-ERC
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1 pieces
Price :
Get Latest Price
Payment Terms :
L/C, T/T
Supply Ability :
60,000pcs per month
Delivery Time :
1~3working days after payment
Packaging Details :
10 or 20pcs in Plastic tray
Form Factor :
XFP
Port Interface :
1 x 10GBase LC
Interface Details :
10GBase DWDM OC-192/STM-64/10G ER
Data Rate :
9.953 Gbps to 11.318 Gbps
Wavelength :
1550.33 nm
Distance :
40 Km (24.9 miles)
Temperature Range :
Commercial 0°C to 70°C
Digital Diagnostics (DDM) :
Yes
Connection :
Single-mode Fiber (SMF)
Description

DWDM-XFP-1530.33 10GBase DWDM OC-192/STM-64/10G ER LC, 40 Km, 1550.33 nm XFP transceiver.

GXD-H1xx-ERC

10Gbps XFP DWDM Optical Transceiver, 40km Reach

Features:

♦ Wavelength selectable to C-band ITU-T grid wavelengths

♦ Suitable for use in 100GHz channel spacing DWDM systems

♦ XFP MSA Compliant

♦ Data rate from 9.95 Gbps to 11.3Gbps

♦ No Reference Clock required

♦ Cold Start up Wavelength Compliance

♦ DWDM-rated EML transmitter and PIN receiver

♦ Link length up to 40km

♦ Low Power Dissipation 3.5W Maximum

♦ -5ºC to 70ºC Operating Case Temperature

♦ Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

♦ RoHS compliant and lead free

Application:

♦ SONET OC-192&SDH STM 64

♦ 10GBASE-ER/EW

♦ 40 km 10G Fiber Channel

♦ DWDM Networks

Description:

Gezhi’s DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Gezhi DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Mechanical Dimensions:

DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G ER

Ordering Information:

P/N GXD-H1xx-ERC
Datarate 10Gbase DWDM XFP
Wavelenght 1529.55~1565.50nm
Distance 40km
Transmitter EML
Receiver APD
DDM/DOM Yes
Media SMF
Operating Temperature 0°C to +70°C

Company Information

GEZHI Photoncis is founded in 2011, which is a leading provider for optical active and passive products in China. We design,develop,manufacture and distribute the optical products to satisfy customer's need for optical communication in Ethernet,SDH/SONET,Video monitor,FTTH,WDM Netowrk, Access Network, CATV Network, EPON System etc.

Professional, delicated and passional, With reliable quality and competitive pricing,,GEZHI Photonics supply over-expected products and service to customers,In the past years, GEZHI have won the confidence and great reputation from domestic and oversea customers.
