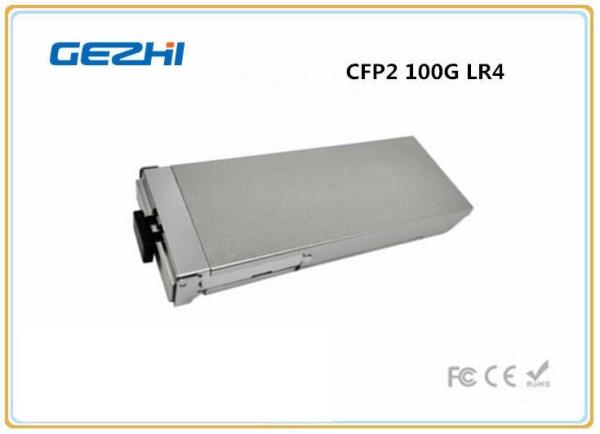

Duplex LC 1310nm 10km CFP2 100G LR4 for Wide Area Network (WAN)
Duplex LC 1310nm 10km CFP2 100G LR4 for Wide Area Network (WAN)
Specifications
Brand Name :
GEZHI
Model Number :
/
Certification :
CE/FCC/RoHS/TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
Get Latest Price
Payment Terms :
L/C, T/T
Supply Ability :
60000 Piece/Pieces per month for QSFP+ SR4 MPO 100M
Delivery Time :
3~5 work days
Packaging Details :
According to quantity ,we can offer 1 by one in box ,or 10pcs in plastic box or 20pcs.
Data transfer rate :
100G
Distance :
10KM
Lanes :
4 Lanes
each lane data rate :
27.952493Gbps
Interface :
LC
Dissipation :
Max:9 W
temperature :
0-70
Warranty :
3 Years
Description
Duplex LC 1310nm 10km CFP2 100G LR4 for Wide Area Network(WAN)

SFP Transceier SMF 10KM with LC connector 100G CFP2 LR4

Product Details

1 Duplex LC receptacle optical interface

2 Single +3.3V power supply
3 Hot-pluggable
4 Operating optical data rate up to 112Gbps
5 Operating electrical serial data rate up to 27.952493Gbps
6 4 parallel electrical serial interface
7 AC coupling of CML signals

Application
1 Local Area Network(LAN)
2 Wide Area Network(WAN)
3 Switch to router interface
4 ITU-T OTU4 OTL4.4 applications

Standards
1 Compliant with IEEE 802.3ba
2 Compliant with CFP2 MSA hardware specifications
3 Compliant with CFP2 MSA management specifications
4 Compliant with ITU-T G709/Y.1331
5 Compliant with RoHS

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Units Notes
Storage Temperature Tst -40 +85 ºC
Supply Voltage Vcc -0.5 +3.6 V
Operating Relative Humidity Rh +5 +95 %

Recommended Operating Conditions

Parameter Symbol Min Typ Max Units Notes
Operating Case Temperature TC 0 - +70 °C
Power Supply Voltage VCC 3.14 3.3 3.46 V
Data rate 103.125 112 Gb/s

Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.

Duplex LC 1310nm 10km CFP2 100G LR4 for Wide Area Network (WAN)

Packaging

Duplex LC 1310nm 10km CFP2 100G LR4 for Wide Area Network (WAN)

Company Information

Company Profile

GEZHI Photoncis is founded in 2011, which is a leading provider for optical active and passive products in China. We design,develop,manufacture and distribute the optical products to satisfy customer's need for optical communication in Ethernet,SDH/SONET,Video monitor,FTTH,WDM Netowrk, Access Network, CATV Network, EPON System etc.

Professional, delicated and passional, With reliable quality and competitive pricing,,GEZHI Photonics supply over-expected products and service to customers,In the past years, GEZHI have won the confidence and great reputation from domestic and oversea customers.
