Smallest fiber optical switches 1x1/1x2 Fiber Optical Switch for System Monitoring

1x2 Opto-Mechanical Optical Switches

Description

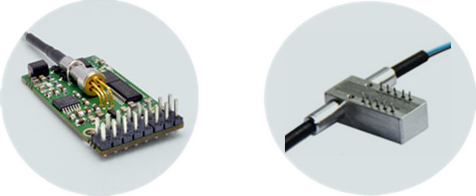

GEZHI Photonics 1x2 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.

GEZHI Photonics’ 1x2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

♦ Low Insertion loss

♦ Wide Wavelength Range

♦ Low Crosstalk

♦ High Stability, High Reliability

♦ Epoxy-free on Optical Path

♦ Latching and Non-latching

Applications

♦ Channel Blocking

♦ Configurable Add/Drop

♦ System Monitoring

♦ Instrumentation

1XN

Smallest Fiber Optical Switch 1x2 Fiber Optical Switch For System Monitoring

Pins

Control Model Optical Path Electric Drive Status Sensor
1×2 1 5 6 10 2-3 3-4 7-8 8-9
Latching P1-P2 -- -- GND V+ Close Open Open Close
P1-P3 V+ GND -- -- Open Close Close Open
Non-latching P1-P2 -- -- -- -- Close Open Open Close
P1-P3 V+ -- -- GND Open Close Close Open

Optical Route

Status One Status Two

Smallest Fiber Optical Switch 1x2 Fiber Optical Switch For System Monitoring

Smallest Fiber Optical Switch 1x2 Fiber Optical Switch For System Monitoring

Electric

Specifications Voltage Current Resistance
5V Latching 4.5~5.5 ≥50mA 125Ω
5V Non-latching 4.5~5.5 ≥40mA 175Ω
3V Latching 2.7~3.3 ≥70mA 50Ω
3V Non-latching 2.7~3.3 ≥50mA 70Ω

Technical Paremeter

Parameters GZ-FSW-1×2
Wavelength Range nm 850±40 / 1300±40 1260~1650
Operating Wavelength nm 850/1300 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:1.0
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime Time ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20~+80
Storage Temperature ℃ -40~+85
Weight g 16
Dimension mm (L)27×(W)12.0×(H)8.2

Note: 1. Customization is available.

2. Specified without connector, and add an additional 0.2dB loss per connector.

Ordering Information

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

X=Others

3=3V

5=5V

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

1=1m

2=1.5m

X=Others

00=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LP/APC

X=Others
