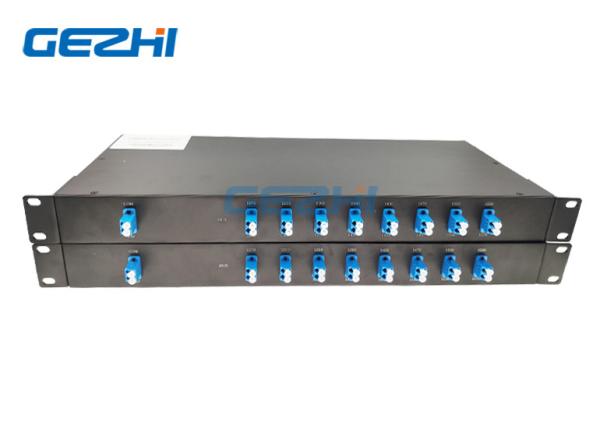

8-wavelength CWDM Modules Two Fiber
8-wavelength CWDM Modules Two Fiber
Specifications
Brand Name :
GEZHI or OEM
Model Number :
C8MD471ULP
Certification :
CE/RoHS/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
100000 Channel per month
Delivery Time :
5~8work days
Packaging Details :
paper box with foam
Product Name :
CWDM two Fiber
Wavelength :
1470~1610nm
Fiber :
Two Fiber
Package :
19" 1U Rack Mount
Feature :
Low IL
Application :
CATV
Description

8-wavelength CWDM Modules Two Fiber

GEZHI 8-Wavelength CWDM Modules is a fiber optical components over duplex single-mode fiber. The CWDM was formed to meet the bandwidth and expansion needs of data centers. This 8 Channel CWDM Mux Demux Modules are developing optical link specifications that will enable cost-effective, low insertion loss. Its with 1470~1610nm wavelength and 19" 1U Rack Mount.

Features Appliecations
  • High Isolation
  • Low insertion loss, low PDL
  • High Reliability and Stability
  • Good channel-to-channel uniformity
  • CATV LINKS
  • CWDM System
  • PON NET Works
  • CWDM OADM Network

Specification

Parameter Value
Channels Number 2 4 8 16 18
Central Wavelength(nm) ITU-T Grid
Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
Channel Pass band(nm) 20
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
MAX. 1.4 1.8 2.8 5.0 5.6
Ripple(dB) ≤0.3
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
Isolation(dB) Adjacent Channel ≥30
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -20~+75
Storage Temperature(℃) -40~85
Note:
1.All the data above does not include connectors
2.For more details, please contact our sales
