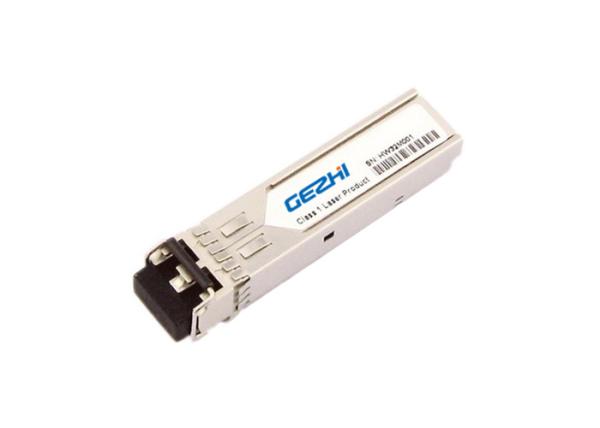

ROHS Compatible 1000Base-SX SFP Transceiver Module MMF 850nm 550 Meter Distance
ROHS Compatible 1000Base-SX SFP Transceiver Module MMF 850nm 550 Meter Distance
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GS-1285-05CD
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
60,000pcs per month
Delivery Time :
1~3working days after payment
Packaging Details :
10 or 20pcs in Plastic tray
Product Name :
Multimode SFP Module
Datarate :
1000base
Wavelength :
850nm
Distance :
550meter
Connector :
LC
Application :
Optical Transmission Systems
Description

ROHS Compatible 1000Base-SX SFP Transceiver Module MMF 850nm 550 Meter Distance

The GEZHI Photonics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network.

Features:

♦ Dual data-rate of 1.25Gbps/1.063Gbps operation

♦ 850nmVCSEL laser and PIN photodetector for 550m transmission

♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

♦ Digital Optical Monitoring

♦ Internal Calibration or External Calibration

♦ +3.3V single power supply

♦ Compatible with SONET OC-24-LR-1

♦ Compatible with ROHS

♦ Operating case temperature range of 0°C to +70°C(Commercial)

Application

♦ Gigabit Ethernet

♦ Fiber Channel

♦ Switched backplane applications

♦ Switch to Switch interface

♦ Router/Server interface

♦ Other optical transmission systems

Specification:

P/N GS-1285-05CD
Datarate 1.25Gbps
Wavelenght 850nm
Distance 550meter
Transmitter VCSEL
Receiver PIN
DDM/DOM Yes
Media MMF
Operating Temperature 0°C to +70°C

Competitive Advantages:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery

ROHS Compatible 1000Base-SX SFP Transceiver Module MMF 850nm 550 Meter Distance
