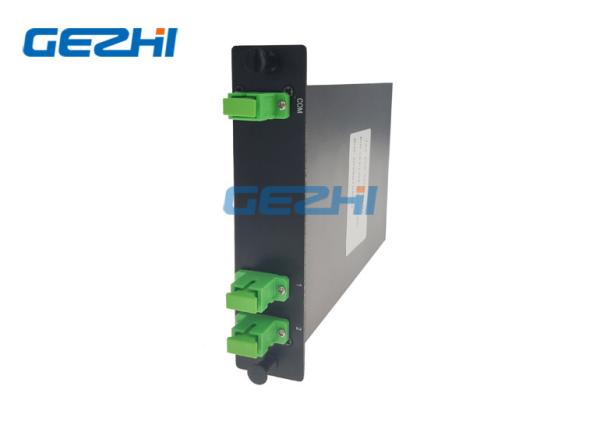

Mini FWDM device 3 ports Filter WDM for 1310 1490 1550
Mini FWDM device 3 ports Filter WDM for 1310 1490 1550
Specifications
Brand Name :
GEZHI or OEM
Model Number :
FWDM-3-T5R34-SA-LGX
Certification :
CE/RoHS/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic box
Product Name :
Mini FWDM
Port :
3 port
Wavelength :
T1550/R1310&1490
Connector :
SC/APC
Features :
Easy opreation
Applications :
CATV
Description

Mini FWDM device 3 ports Filter WDM for 1310 1490 1550

GEZHI 1310/1490/1550 WDM devices based on thin-film filter technology are design to address the specific requirements of the FTTP market. Strong coating and passive device packaging capabilities feature these Wads with excellent optical performance, good reliability and ultra-compact size. We provides a series of FWDM multiplexers for FTTx constructions.Our FWDM product line covers different wavelength windows commonly used in optical fiber systems.

Features

Applications
  • Low Insertion loss
  • High Channel Isolation
  • Wide Wavelength Range
  • High stability and reliability
  • Low Polarization Dependent Loss
  • FTTH System
  • System Monitoring
  • Transmitters and Fiber
  • Fiber optical amplifier
  • CATV Fiber Optic Links
  • Long-hual,Metro,Access and FTTx

Specifications

Parameter FWDM T4/R35 FWDM T5/R34 FWDM T3/R45 FWDM T34/R5
Pass Band Wavelength Range (nm)±10 1480~1500 1540~1560 1260~1360 1260~1360 & 1480~1500
Reflection Band 1 Wavelength Range(nm)±10 1260~1360 1260~1360 1480~1500 1540~1560
Reflection Band 2 Wavelength Range (nm)±10 1540~1560 1480~1500 1540~1560
Insertion Loss(dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Insertion Loss Variation(dB) <0.3
Isolation(dB) Pass Channel >15
Reflect Channel >30
Inertion Loss Temperature Sensitivity(dB/ºC) <0.005
Polarization Dependent Loss(dB) <0.1
Polarization Mode Dispersion(ps) <0.1
Directivity(dB) >50
Return Loss(dB) >50
Maximum Power Handling(mW) 500
Opterating Temperature(ºC) -20~+70
Storage Temperature(ºC) -40~+85

Note:
1.All the data above does not include connectors
2.For more details, please contact our sales
