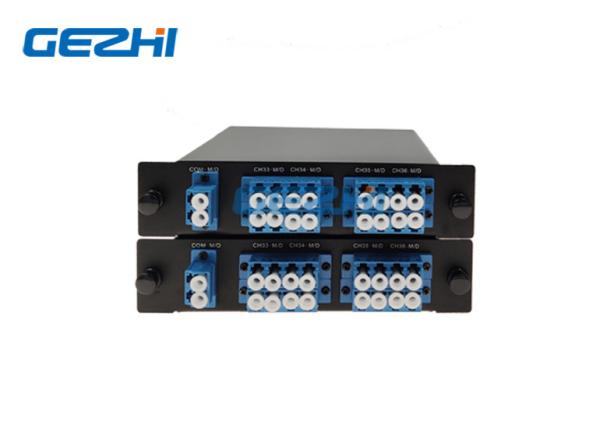

LGX Card Type 200Ghz Passive DWDM Mux Demux
LGX Card Type 200Ghz Passive DWDM Mux Demux
Specifications
Brand Name :
GEZHI or OEM
Model Number :
DWDM8CHMD21LPLGX
Certification :
CE/RoHS/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
100000 Channel per month
Delivery Time :
5-8 work days
Packaging Details :
paper box with foam
Product Name :
Passive DWDM
Package :
LGX card
Connector :
LC or SC
Wavelength :
C21~C36
Channel Spacing :
200Ghz
Channel :
8 Channel
Description

LGX Card Type 200Ghz Passive DWDM Mux Demux

GEZHI LGX Card Type 200Ghz Passive DWDM Mux Demux Modules Based on thin film filter technology and with high wavelength stability, Low polarization dependent loss and high channel isolation, Flat and wide passband features. Its application in DWDM System,CATV system, Telecommunication network system and so on.

Features

Application
  • Wide pass band
  • Low insertion loss
  • ITU channel spacing
  • High channel isolation
  • Epoxy free on optical path
  • High stability and reliability
  • DWDM network
  • Channel add/drop
  • Wavelength routing
  • Fiber optical amplifier
  • CATV fiberoptic system

Ordering Informations

DWDM Type Spacing Channel Number 1 ITU Channel Pigtail Length Connector Package

M=Mux

D=Demux

MD=Mux+Demux

1=100Ghz

2=200Ghz

4=4CH

8=8CH

16=16CH

21=C21

22=C22

``````

60=C60

9=900um

2=2mm

3=3mm

1=1M

X=Specify

NE=None

FA=FC/APC

FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other

A=ABS

L=LGX

1R=19" 1U Rack

2S=2Slot 1U Rack

4S=4Slot 1U Rack

Sepcifications

Parameters Value
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
IL (dB) 1.8 2.5 3.5 1.7 2.9 3.8
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 300
Operating Temperature (°C) -20~75
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U

GEZHI Main Products CWDM/FWDM/CCWDM/DWDM/AWG, Optical Switches, Multi-Channel Fiber Optical Switches
