D2x2B Multimode Optical Switches 850nm Dual 2x2 Bypass , Fiber Optic Switches
D2x2B Multimode Optical Switches 850nm Dual 2x2 Bypass , Fiber Optic Switches
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-D2x2B MM Optical Switch
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
60000pcs per month
Delivery Time :
2~7working days
Packaging Details :
2pcs in a foam with paper Box
Product Name :
MM Bypass Optical Switch
Wavelength :
850nm
Channel :
4x4 (dual 2x2)
Control Type :
Latching or Non-latching
Connector :
LC/SC/FC/ST (PC or APC)
Application :
Configurable OADM
Description
D2x2B Multimode Optical Switches 850nm Dual 2x2 Bypass , Fiber Optic Switches

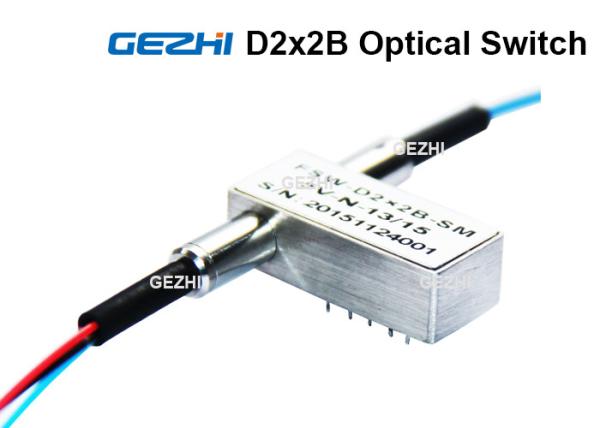

GEZHI Photonics Dual 2x2B Multi-Mode Mechanichal Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.

GEZHI’s Dual 2x2B (D2x2B) MM Mechanichal Optical Switch support all wavelength at Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching


Specification

Parameters

 GZ-FSW-D2×2B
Wavelength Range nm 850±40/1300±40 1260～1650
Operating avelength nm 850/1300 1310/1490/1550/1625/1650
Insertion Loss dB Typ:1.0 Max:1.5 Typ:1.0 Max:1.5
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 3.0 or 5.0
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27.0×(W)12.0×(H)8.2 customization is available.

Pins

Type State Pin definition Power Condition monitoring
D2x2B 1 5 6 10 2-3 3-4 7-8 8-9
Non-latching A

P1-P3

P1’-P3’

 -- -- -- -- Close Open Open Close
B

P1-P4,P2-P3

P1’-P4’,P2’-P3’

 V+ -- -- GND Open Close Close Open
Latching A

P1-P3

P1’-P3’

 -- -- GND V+ Close Open Open Close
B P1-P4,P2-P3 V+ -- GND -- Open Close Close Open


Optical Route

Status One Status Two


D2x2B Multimode Optical Switches 850nm Dual 2x2 Bypass , Fiber Optic Switches


D2x2B Multimode Optical Switches 850nm Dual 2x2 Bypass , Fiber Optic Switches

Dimension

D2x2B Multimode Optical Switches 850nm Dual 2x2 Bypass , Fiber Optic Switches


Order Information

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
