Dual 1x2 Fiber Optical Switches 2x4 Type Non - latching Control
Dual 1x2 Fiber Optical Switches 2x4 Type Non - latching Control
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-D1x2 Optical Switch
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
60000pcs per month
Delivery Time :
2~7working days
Packaging Details :
2pcs in a foam with paper Box
Product Name :
Micro Optical Switch
Wavelength :
1260~1650nm
Channel :
2x4 (dual 1x2)
Control Type :
Latching or Non-latching
Connector :
LC/SC/FC/ST (PC or APC)
Application :
System Monitoring
Description

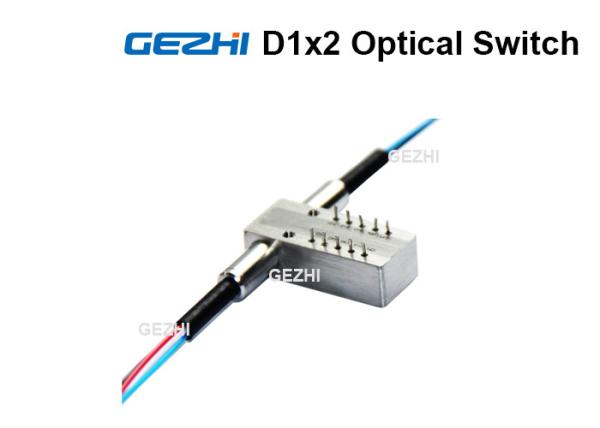

Dual hdmi 1x2 Optical Optical Switches 2x4 Type Non - latching Control

GEZHI Photonics GZ-FSW-D1×2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension. It is an ideal component for OADM, OXC, system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

GEZHI’s Dual 1x2 (D1x2) Mechanichal Optical Switch support all wavelength at 1260nm~1650nm or Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

  • Low Insertion Loss
  • Wide Wavelength Range
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching


Specification

Parameters

 GZ-FSW-D1×2
Wavelength Range nm 850±40/1300±40 1260～1650
Operating avelength nm 850/1300 1310/1490/1550/1625/1650
Insertion Loss dB Typ:1.0 Max:1.5 Typ:1.0 Max:1.5
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 3.0 or 5.0
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27.0×(W)12.0×(H)8.2 customization is available.

Pins

Type State Optical Route Electric Drive Status Sensor
D1×2 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching A P1-P2 -- -- GND V+ Close Open Open Close
P1’-P2’
B P1-P3 V+ GND -- -- Open Close Close Open
P1’-P3’
Non-latching A P1-P2 -- -- -- -- Close Open Open Close
P1’-P2’
B P1-P3 V+ -- -- GND Open Close Close Open
P1’-P3’


Optical Route

Status A Status B


Dual 1x2 Fiber Optical Switches 2x4 Type Non - latching Control


Dual 1x2 Fiber Optical Switches 2x4 Type Non - latching Control

Dimension

Dual 1x2 Fiber Optical Switches 2x4 Type Non - latching Control


Order Information

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
