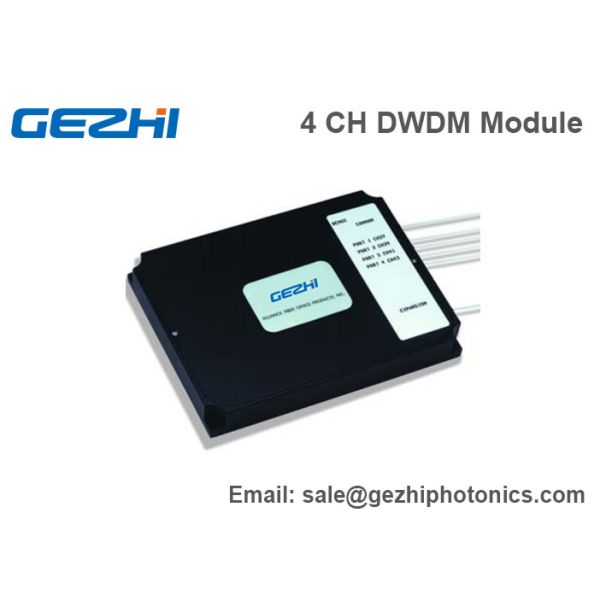

Dense WDM Mux Demux Module box 4 Channel LC/PC Optical DWDM System
Dense WDM Mux Demux Module box 4 Channel LC/PC Optical DWDM System
Dense WDM Mux Demux Module box 4 Channel LC/PC Optical DWDM System
Dense WDM Mux Demux Module box 4 Channel LC/PC Optical DWDM System
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-DWDM Mux Module
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
80000Channel per month
Delivery Time :
2~7working days
Packaging Details :
2pcs in a foam with paper box
Product Name :
200Ghz DWDM
Channel Number :
4 Channels
Wavelength :
1528~1565nm
Connector :
LC/UPC
Fiber Type :
Simplex
Application :
Metro Networks
Description
Dense WDM Mux Demux Module box 4 Channel LC/PC Optical DWDM System

GEZHI Photonics offers high performance 200 GHz Dense WDM Multiplexers and Demultiplexers for ITU channel spacing applications. Thin fim filter DWDM products rely on a unique GEZHI technology to achieve superior field performance.

Our DWDM 4 channel multiplexer and demultiplexer products are available in standard ITU wavelengths ranging from 1528 nm to 1565nm. As with many GEZHI multiplexer Products custom wavelegths and channel configurations are available upon request.

Applications

  • Broadband Systems
  • Optical Add/Drop Multiplexing
  • Telco Networks
  • Metro Networks

Features

  • High Isolation
  • Low insertion Loss
  • Bi-Directional
  • Expoxy-Free Optical Path
  • Low Total Integrated Cross Talk
  • Telcordia GR-1221 Qualified

Technical Specs for 200GHz Dense WDM MUX & DEMUX (4 Channel)

Parameter Unit Value
Channels Number - 4 channel
Channel Central Wavelength nm ITU-T Grid (1528~1565nm)
Passband at 0.5dB nm ≥0.6
Pass band nm λITU±0.25
Pass band Flatness dB ≤0.5
Pass Channel Insertion Loss (Typ.) dB 1.6dB
Pass Channel Insertion Loss (Max.) dB 2.0dB
Adjacent Channel Isolation dB ≥25
Non-adjacent Channel Isolation dB ≥40
Return Loss dB ≥45
Polarization Mode Dispersion ps ≤0.10
Polarization Dependent Loss dB ≤0.10
Directivity dB ≥50
Operation Temperature °C -5~+70
Storage Temperature °C -40~+85
Package Dimension mm

ABS box G: 100X80X10, H: 125X96X16

I: 141X115X18, O: customized

DWDM System Apllication
Dense WDM Mux Demux Module box 4 Channel LC/PC Optical DWDM System
