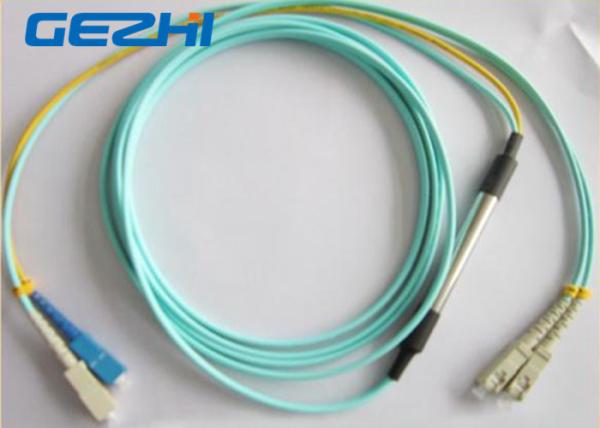

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable
SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable
SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable
SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-Patch Cord
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
100000pcs per week
Delivery Time :
1~3working days
Packaging Details :
1pcs in a Plastic bag
Product Name :
Fiber Patch Cables
Mode :
Multi Mode
Cores :
simplex
Polishing :
SC-SC
Length :
Customised
Application :
FTTB
Description

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable

Description


The Duplex Fiber Optic Patch Cable (50/125um or 62.5/125um) is use in

Gigabit Ethernet 1000BASE-LX applications. When deploying new high-speed 1000BASE-LX

routers and switches in existing multi-mode backbones, mode conditioning cable are a must.

Our Mode Conditioning cables allow 1000BASE-LX Ethernet to be run over a multi-mode

fiber optic backbone by offsetting signal loss.

Features

  1. Comply with the IEEE 802.3 z (Gigabit Ethernet) standards
  2. Shielding effect of differential mode delay
  3. Low insertion loss (< 0.4 dB)
  4. Suitable for 50 um and 62.5 um multimode optical fiber cable
  5. Permanent displacement seal
  6. Suitable for the current cable design

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable

Specification

Item Multi-mode fiber(MM)
Fiber type 62.5/125um 50/125um
Average insertion loss/dB 0.4
Max insertion loss/dB 0.5
Interchangeability/dB <0.2
Fiber offset value/um 17<offset<23 10<offset<16
Max Angle offset/° 1 1
Working temperature/℃ -20~+70
Tensile strength/kg >10

Application

  1. Remote transmission to short transmission of one billion - bit systems
  2. The sensor
  3. Optical fiber access network
  4. Local area network (LAN)
  5. Gigabit Ethernet network - 1000Base LX wavelength (1310nm)

Order information

Item

Equipment

connector type

Plant

connector type

 Fiber type

Cable

diameter

Cable

length

FC(PC/UPC) FC(PC/UPC) 50/125um 2.0mm 0.5meter
SC(PC/UPC) SC(PC/UPC) 62.5/125um 3.0mm 1.0meter
LC(PC/UPC) LC(PC/UPC) ...
ST(PC/UPC) ST(PC/UPC)
