Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-Patch Cord
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
100000pcs per week
Delivery Time :
1~3working days
Packaging Details :
1pcs in a Plastic bag
Product Name :
Fiber Patch Cables
Mode :
Single Mode
Cores :
simplex
Polishing :
SC/SC
Length :
Customised
Application :
FTTB
Description

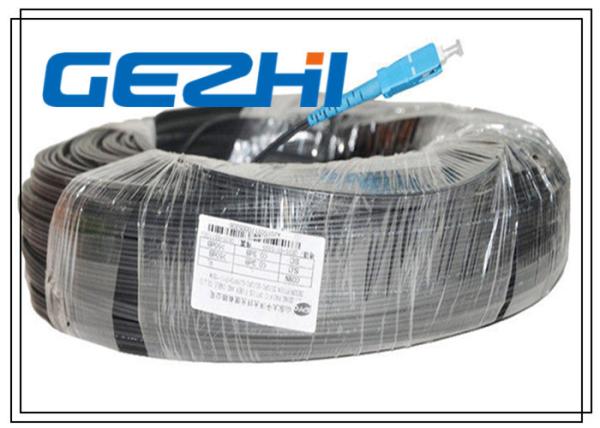

Fiber To The Home Optical Patch Cable 1 Core LSZH SC / SC LSZH 300M Black Steel

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center.

FTTH patch cord is with 2 FTTH connectors at both end of FTTH drop cable. it is normally used in FTTH network indoor or outdoor wiring.

.

Features

  1. Special high bending radius optical fiber, provides wider bandwidth, enhance the network
  2. transmission performance;
  3. Two parallel FRP or metallic strength member so that the cable has good compression
  4. performance, protect the fiber;
  5. Simple structure, light weight, strong practicability;
  6. The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
  7. Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
  8. environmental protection.

Application

  • For indoor wiring, terminal user directly use cable;
  • Building introducing (drop) cable;
  • FTTH indoor/outdoor wiring;

Specification

Item SC FC ST LC drop cable PATCH CORD
IL(dB) ≤0.2 Max IL(dB) ≤0.3
Working temperature(°C) -40~+80 Temperature cycle(°C) -40~+75
Storage temperature(°C) -40~+85 Interchangeability (dB) ≤0.2
Plug times 1000 times Repeat ability(dB) ≤0.1
RL (dB) ≥45 ≥50 ≥60 Immersion

Temperature 43°C,

PH5.5 for 7days

Order information

FC-XXX-XX-XXX-XXX-XX

1 - 2 - 3 4 - 5 6 - 7

FC

Connector

type

Fiber

count

Cable

type

Strength

member

 Fiber type

Cable

color

Cable

Length
FH=ftth 1 2 3 4 5 6 7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...
