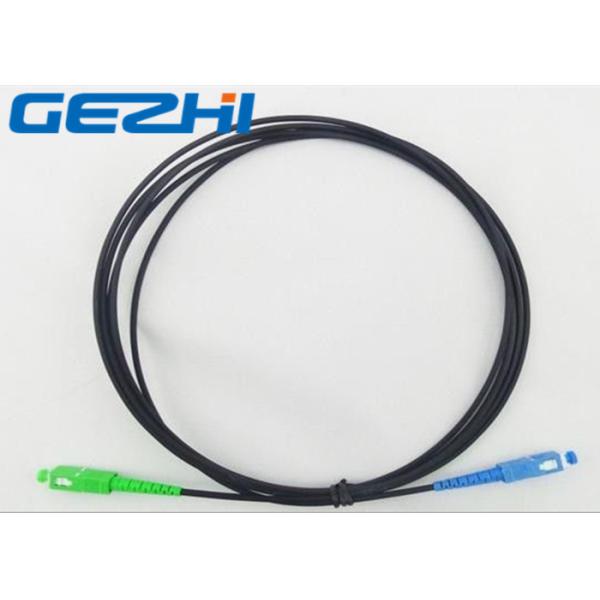

FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-Patch Cord
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
100000pcs per week
Delivery Time :
1~3working days
Packaging Details :
1pcs in a Plastic bag
Product Name :
Fiber Patch Cables
Mode :
Single Mode
Cores :
simplex
Polishing :
SC / APC to SC / APC
Length :
Customised
Application :
FTTB
Description

FTTH Drop Cable Fiber Optic Patch Cord SC / APC - SC / APC SM LSZH 1M Jumper Indoor

Features

  1. Low cost
  2. High return loss
  3. Low insertion loss
  4. 100% factory test before delivery
  5. Cable material: PVC or LSZH
  6. Designed or FTH drop cable
  7. Better compliant with the installation requirement
  8. Compliance with Telcorid GR-326-CORE,ROHS

Specification

Parameter Single mode Multimode
SPC UPC APC UPC
Cable diameter Ф3.0*2.0mm drop cable or other specified
Cable capacity 1core, 2core, 4core, 8core, 12core or other specified
Fiber type G652D, G657A1,G657A2
Insertion los s(dB) <0.3 <0.5
Return loss (dB) ≥50 ≥55 ≥60 ≥30
Repeatability ≤0.3 ,1000 times
Operating temperature -40 ~ + 85 °C
Storage temperature -40 ~ + 85 °C
Connector type SC/UPC,SC/APC,FC/UPC,FC/APC,LC,LC/APC,ST/UPC
Cable jacket LSZH,PVC (white, black, yellow optional)

Optical fiber mechanical performance

TEST report Indicator
Screening level (%) ≥2.0
Minimum bending radius (mm) 10 ( G657A1 )
Coating stripping force (N) Peak 1.3≤F≤8.9
Average 1≤F≤5
Static fatigue index (nd) ≥20
Dynamic tensile strength (Gpa) ≥3.8
Single core secondary coating diameter 250um

Application

  • FTTH
  • CATV
  • Fiber tester
  • Communication Networks
  • Telecommunication Networks

Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center,

on both sides is two parallel nonmetallic reinforcing element (FRP) or metallic strength

member,finally extrusion black or color polyvinyl chloride (PVC) or low smoke halogen-free

flame retardant (LSZH) sheath.

FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor

FTTH Drop Cable Patch Cord Accessories SC / APC - SC / APC SM LSZH 1M Jumper Indoor
