2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD
2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD
Specifications
Brand Name :
Moduleland
Model Number :
TSBL2G80D-45/54
Certification :
FCC,CE,ROHS
Place of Origin :
Hanoi, Vietnam
MOQ :
1 Piece
Price :
Negotiable
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
Packaging Details: 1 or 10PCS /Plastic tray, 1PC/Gift box Delivery Detail: Shipped in 1 days after payment
Data Rate :
2.5Gb/s
Distance :
80KM
Power supply :
3.3v
Output power :
0~5dBm
Wavelength :
1550nm /1490nm
DDM function :
Yes
Description

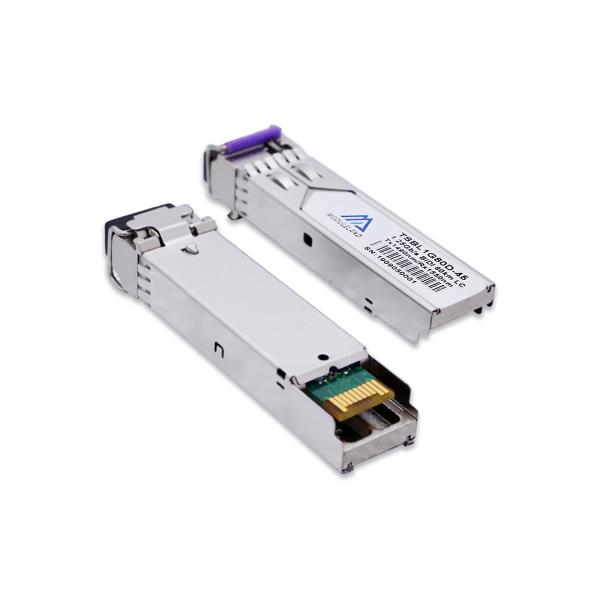

(Multi-rate) 2.5Gb/s 80Km LC BiDi SFP 1490nm Tx/1550nm Rx, DFB-LD&APD, Single-mode, DDM

1. Features:

Up to 2.67Gb/s Data Links

Hot-Pluggable

Single LC connector

Up to 80 km on 9/125μm SMF

1490nm DFB laser transmitter

1550nm APD photo-detector

Single +3.3V Power Supply

Monitoring Interface Compliant with SFF-8472

Maximum power dissipation <1W

Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

RoHS compliant and Lead Free

2. Applications:

SONET OC-48 / SDH STM -16

SONET OC-12 / SDH STM -4

SONET OC-3 / SDH STM -1

Gigabit Ethernet

1x/2xFibre Channel

3. Description:

Moduleland’s TSBL2G80D-45 Transceivers are a high performance, cost effective module which have a Single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a APD receiver and the transmitter uses a 1490 nm DFB laser, up to 26dB link budge ensure this module SONET OC-48 / SDH STM -16 80km application.

4. Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1470 1490 1510 nm
Spectral Width σ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Output Power Pout -2 +3 dBm 1
Extinction Ratio ER 8.2 dB
Optical Rise/Fall Time tr / tf 260 ps 2
Relative Intensity Noise RIN -120 dB/Hz

Total Generated Transmitter Jitter

(peak to peak)

 JTXp-p 0.07 UI

Total Generated Transmitter Jitter

(rms)

 JTXrms 0.007 UI
Eye Mask for Optical Output Compliant with eye mask Telcordia GR-253-GORE
Receiver Section:
Optical Input Wavelength λc 1530 1550 1570 nm
Receiver Overload Pol -9 dBm 3
RX Sensitivity Sen -28 dBm 3
RX_LOS Assert LOS A -45 dBm
RX_LOS De-assert LOS D -29 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 155 2667 Mb/s
Bit Error Rate BER 10-12
Max. Supported Link Length on 9/125μm SMF@2.5Gb/s LMAX 80 km
5. Packaging & Shipping

2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD

2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD

Company Information
About us

Moduleland locating in Hanoi Vietnam, is a factory based manufacturer of optical transceivers covering various types widely applied to WAN, LAN, SAN, Fiber Channel, FTTX, etc.

Office&workshop:

2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD 2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD

2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD 2.5Gb/s 80Km DDM BIDI SFP Module LC 1490nm Tx 1550nm Rx DFB-LD APD

Our Services

1. Warranty

Five years Warranty, three monthes free exchange and one year free repairing.

2. OEM, ODM are welcome.

3. Free sample will be provided.

Free samples under a certain value are available,with freight cost collect.

4. Any Inquire is welcome.

Any inquire will be replied within 24 hours.

5. After-sales service.
a. From the beginning of production till the successful delivery, we will track on time and post you the status.
b. When the goods arrived, if you have question after inspection, please feel free to contact us, we'll provide solution.

FAQ

Q: What payment terms do you accept?

A: T/T,L/C at sight,Western Union are acceptable. Other payment terms are negotiable.

Q: what is the lead time?

A: For standard products,we keep enough stock,cqn ship out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.

Q: What are the shipping ways can you offer?

A: For small quantity we ship by Express like DHL,FedEX,TNT,UPS, EMS etc. For large quantity we can use airshipment ot other appointed method by clients.

Q: What euipments can your products be compatible with?

A: Our products can be compatible with all market brand.

Q: How to place an order?

A:1> Confirm order details with our sales representatives.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm shipping details and dispatch goods, tracking number will be sent to you promptly after the shipment is picked up.
4> We will help to track your goods until you receive them safely.
